Description

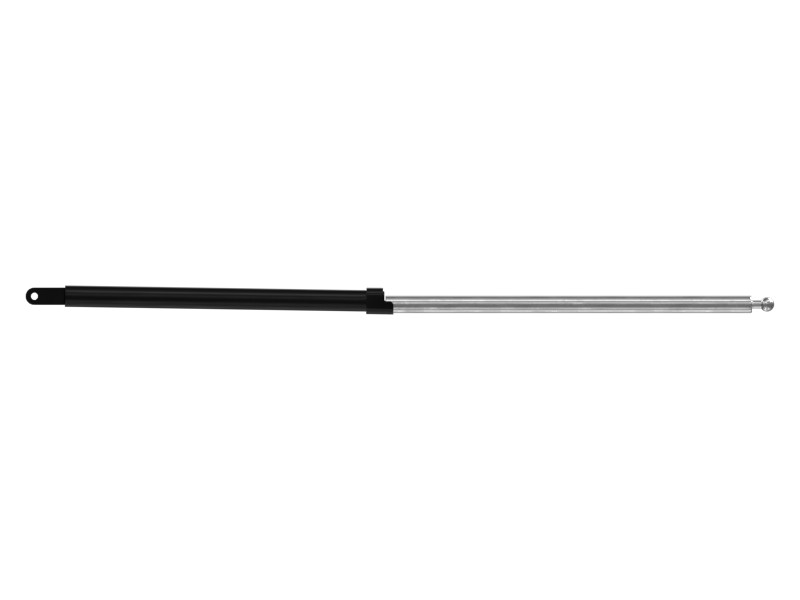

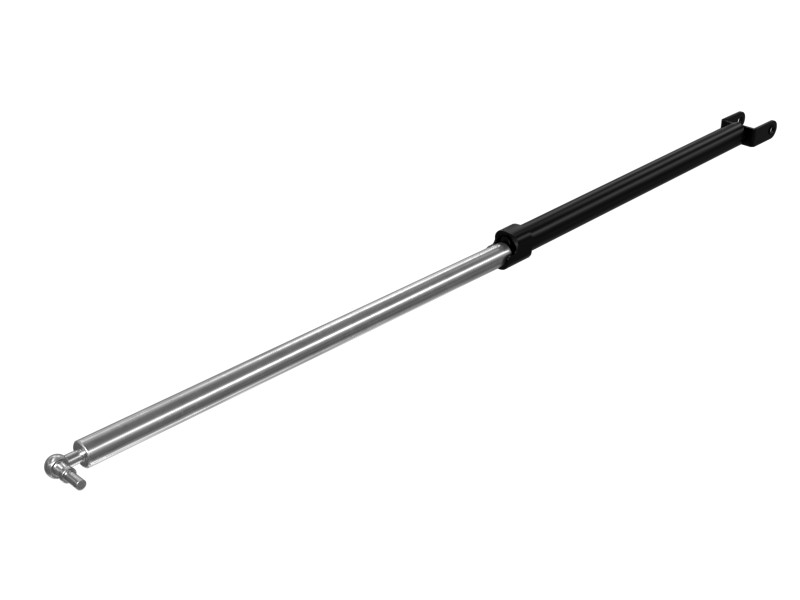

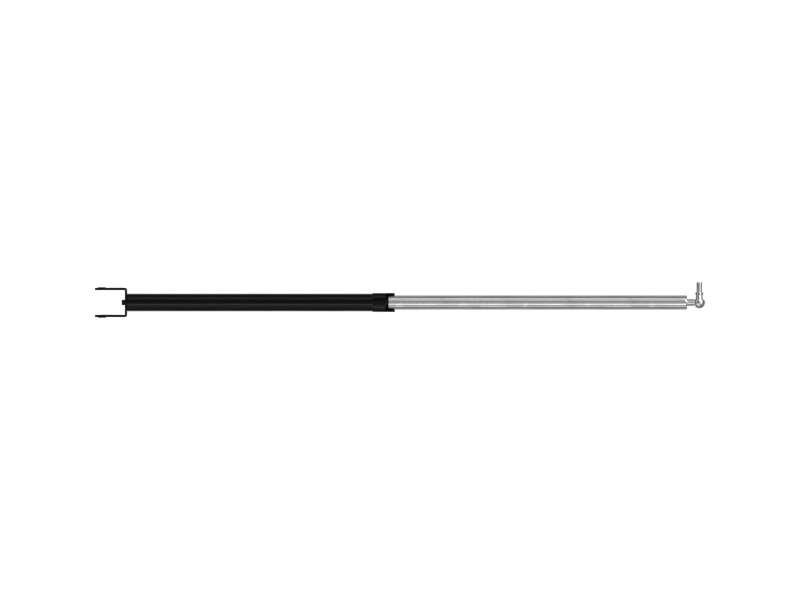

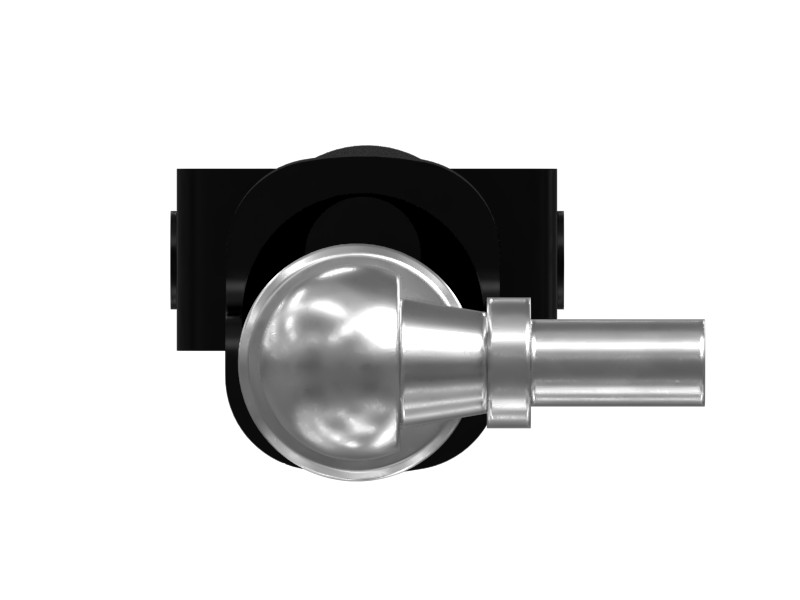

The gas spring is used to help open and close the bottom cover assembly. The spring assembly consists of a cylinder, a piston, and a rod, where the cylinder contains pressurized gas and the piston is equipped with a seal to prevent the gas from escaping or leaking. It is installed on a support and is used to apply force to the bottom cover to open it and hold it in place in the engine housing.
Features
- Provides a secure connection to the hood.
- Provides consistent spring force throughout the range of motion for smooth, controlled hood movement.
- High strength and wear resistance.
Applications
The gas spring is used to provide support when opening and closing the engine housing hood, most commonly used in CAT 316E, 316F, 318D, 318F, 320, 320D, 320E, 320F, 323, 323D, 323E, 323F, 326D, 329D, 330D and 538 Excavators, 320D and 320E OEM Applications.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Height | 30 mm (1.18 in) |
| Overall Length | 960 mm (37.8 in) |
| Overall Width | 45 mm (1.77 in) |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 320D3 GC, 320D2 GC, 318D2, 320E, 323D2 L, 320D2 L, 320D3, 318D2 L, 323D2, 320D2
