Description

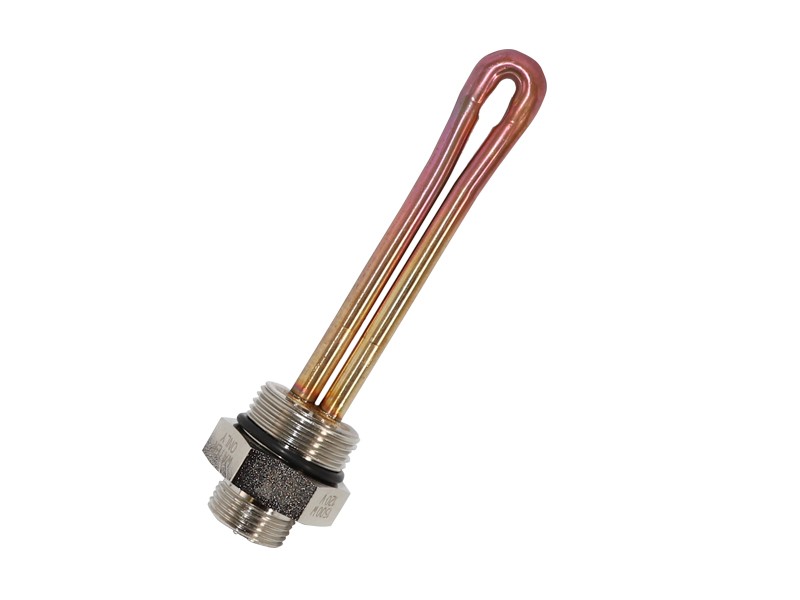

Heater cores such as part number 392-0895 are an important component of the jacket water heater, an electric immersion heater that mounts on the water jacket around the engine block to heat coolant in cold weather.
Features
- Jacket water heater core
- Power: 1500 W
- Voltage: 120 Volts
- Current: 12.5 Amps
- Core Thread Size: 1-5/16-12
- Hex Size: 38.1 mm (1.5 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Copper |
|---|---|
| Current | 12.5 Amps |
| Hex Size | 38 mm (1.5 in) |
| Length | 113 (Filter Element) mm (4.44 (Filter Element) in) |
| Overall Length | 153 mm (6.04 in) |
| Power | 1500 Watts |
| Thread Size | 1-5/16-12; (Element); 1-14 (Cover) in |
| Voltage | 120 Volts |
Compatible Equipment
- Cold Planers: PL83, PL72, PL87
- Dozers: D8, D10T2, D7E, D6T, D8T, D6T LGP, D9T, D7
- Excavators: 336E L, 336, 336F L, 340, 350
- Wheel Loaders: R1700 XE
