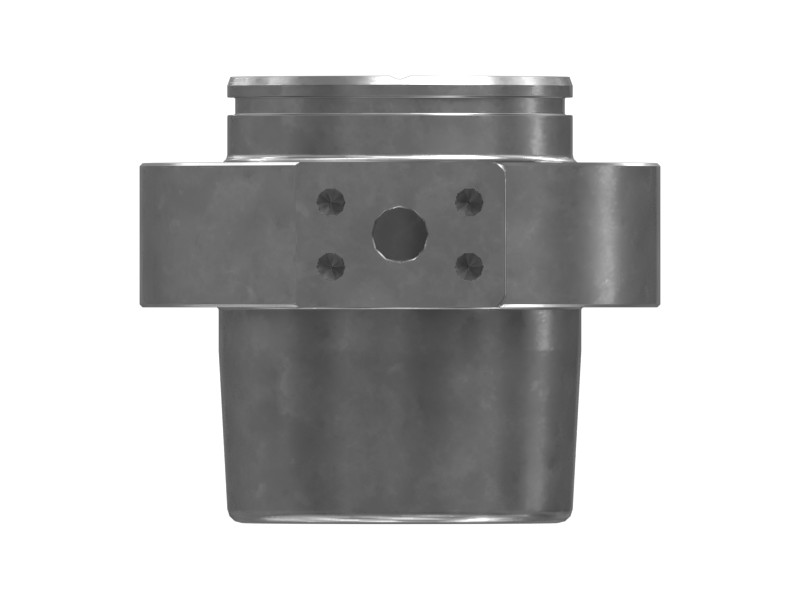

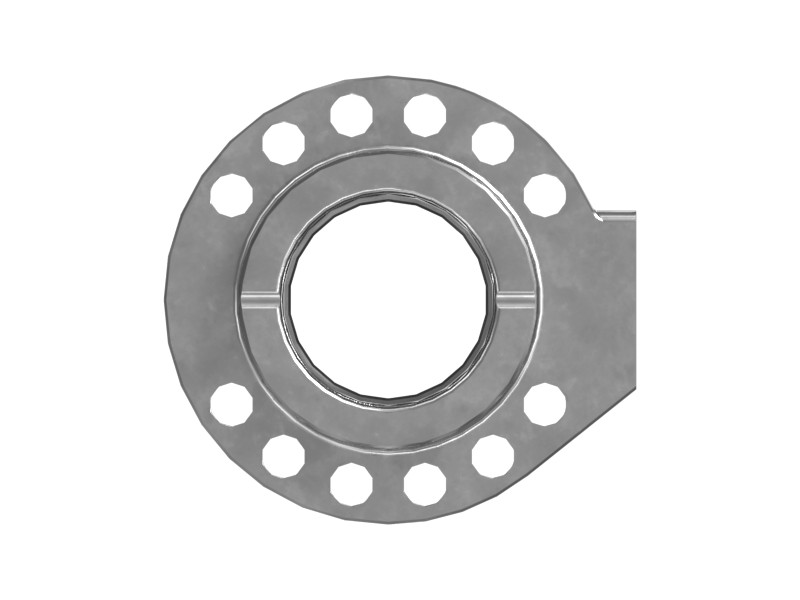

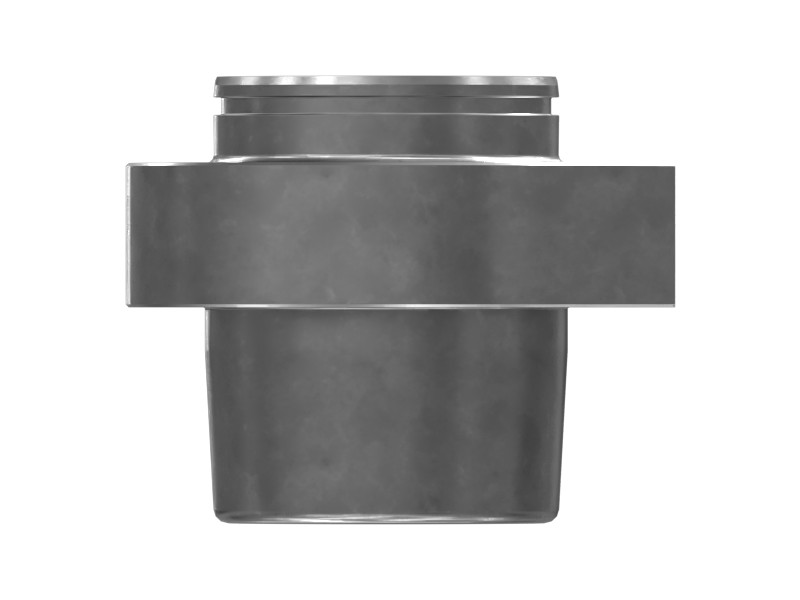

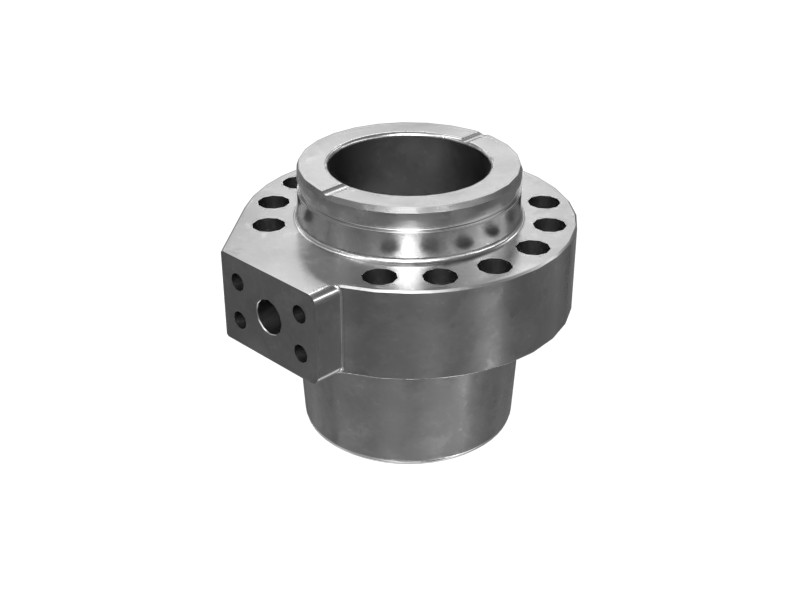

390-4204 Cylinder Head

Description

The hydraulic cylinder head, or cylinder cap, is threaded or bolted onto the rod end of the hydraulic cylinder tube or barrel. The main function of the cylinder head is to contain the hydraulic pressure inside the cylinder tube or barrel. The hydraulic cylinder head also includes an integrated rod seal arrangement that protects the hydraulic system from contamination by external particulates.

Features

Cat cylinders use an innovative sealing system that absorbs pressure spikes, withstands side loads and protects against contaminant ingress better than competitive designs.

Recommended Applications:

Cat hydraulic cylinder heads are designed for specific cylinder applications.

Specifications

Material	Carbon Steel

Compatible Equipment

Excavators: 312D2 L, 313D2-GC, 312D2, 313D2 GC, 312D L, 312E, 313F L, 313F LGC, 313D2, 314D LCR, 314D CR, 312E L, 312D, 312F, 315F LCR, 312D2 GC
Skid Steer Loaders: 313D2 LGP

Machine Model	312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314D CR, 314D LCR, 315F LCR
Equipment Type	Excavators, Skid Steer Loaders
Part Source	Genuine OEM

Machine Model

312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314D CR, 314D LCR, 315F LCR

Equipment Type

Excavators, Skid Steer Loaders

Part Source

Genuine OEM
