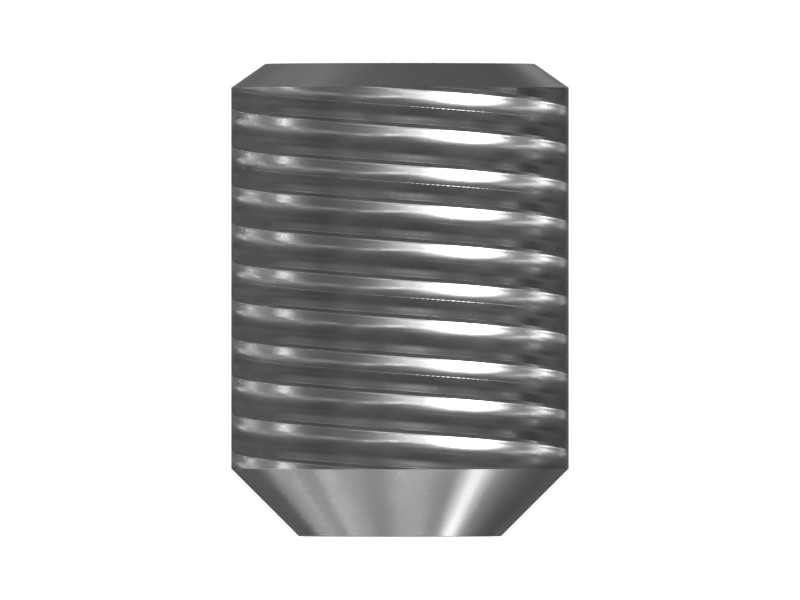

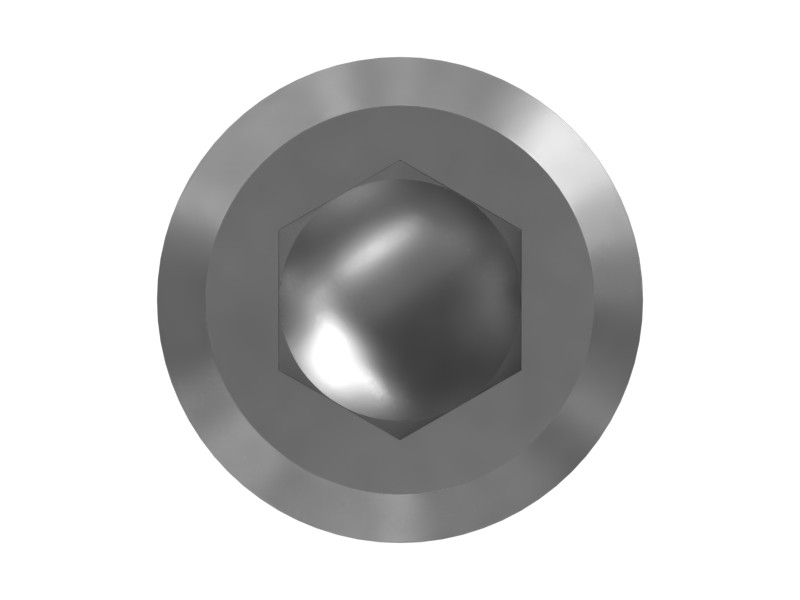

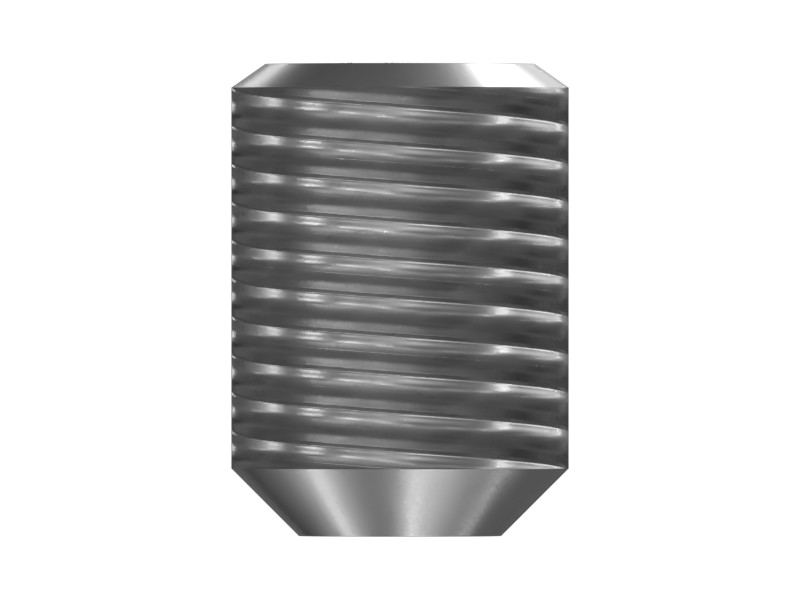

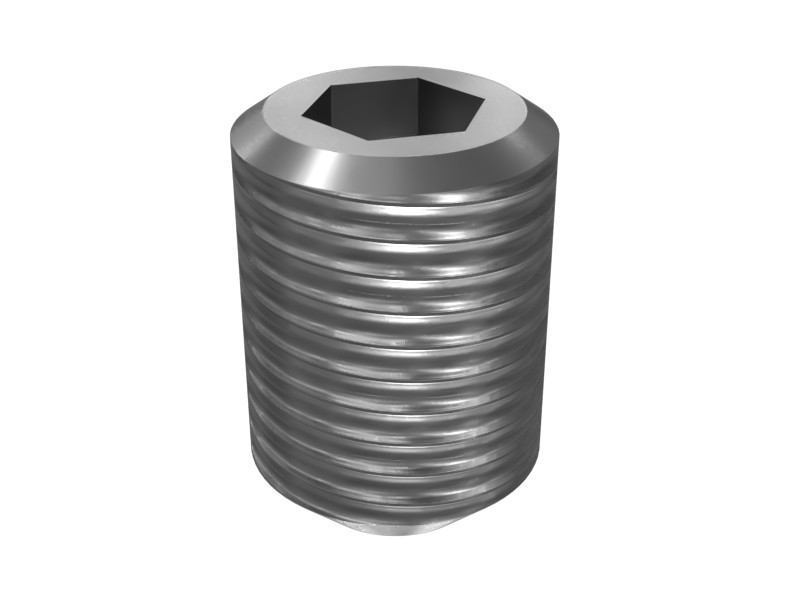

390-4197 M10X1.5 Thread Cup Point Socket Set Screw
Cat® socket set screw ensures stable positioning and alignment of boom cylinder components for safe, efficient operation.
Description
A cup point socket set screw is a threaded fastener with a hex socket and a point that extends inward into a cup shape. This design allows secure fastening without a raised head, making it suitable for applications requiring a flush connection.
Attributes
- Designed to withstand exposure to environmental factors.
- Distributes force evenly to reduce stress concentrations.
- Provides a locking mechanism to prevent accidental adjustment.
Applications
The socket set screw used for the boom cylinder is used to secure and adjust the position of components within the boom cylinder group, ensuring proper alignment and stability during operation.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Excavators: 313F L, 313F LGC, 312D L, 312E L, 313D2, 312D2 L, 312D, 314D LCR, 313D2 GC, 314D CR, 312E, 312D2, 315F LCR, 313D2-GC, 312D2 GC, 312F
- Wheel Loaders: 986K
- Skid Steer Loaders: 313D2 LGP
