Description

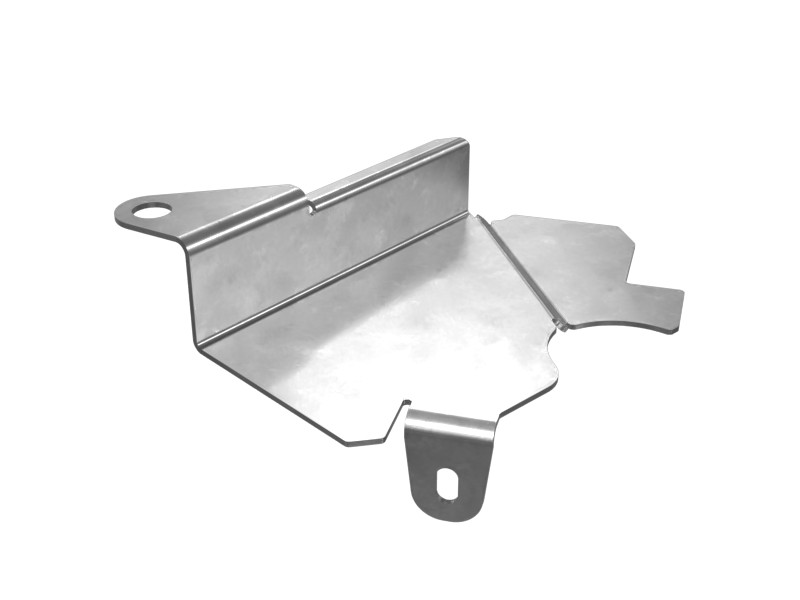

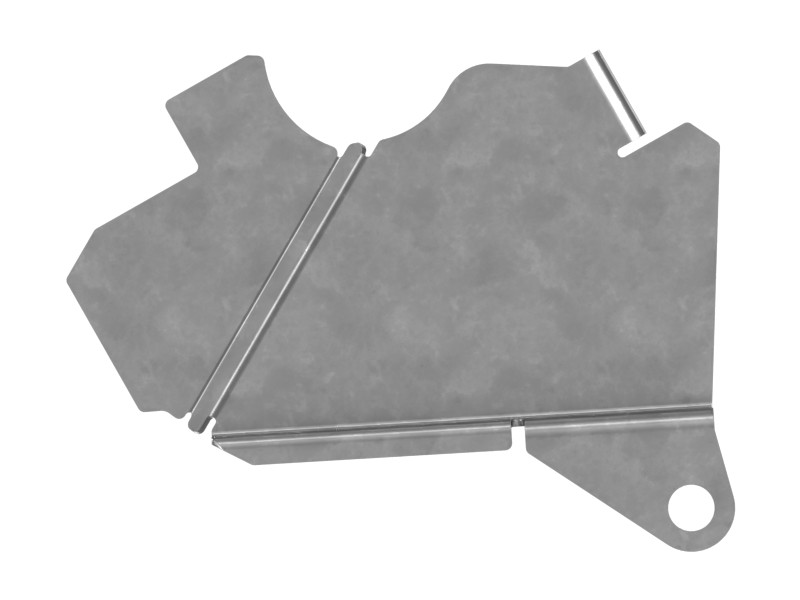

The belt guard is a protective cover or shield placed around the alternator belt drive. It is designed to reduce these hazards by enclosing the moving parts of the belt drive. The guard typically consists of a protective cover positioned around the pulleys and belt to prevent contact with workers and other equipment.
Features
- Ensures safety around the equipment.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
The belt guard is used to protect the alternator belt from contamination and ensure the safety of workers around the equipment.
Specifications
| Height | 115 mm (4.53 in) |
|---|---|
| Overall Height | 115 mm (4.53 in) |
| Length | 287 mm (11.3 in) |
| Overall Length | 287 mm (11.30 in) |
| Thickness | 3 mm (0.12 in) |
| Overall Width | 278.8 mm (10.98 in) |
| Weight | 1.28 kg (2.81 lb) |
| Width | 278.8 mm (10.98 in) |
Compatible Equipment
- Generator Sets: 3516C, G3516, 3512B
- Excavators: 3516B, 3516E
- Off-Highway Trucks: 789D, 785D, 785, 789, 777D, 793D, 777
