388-0813 24 mm Long Hollow Crimp Spacer

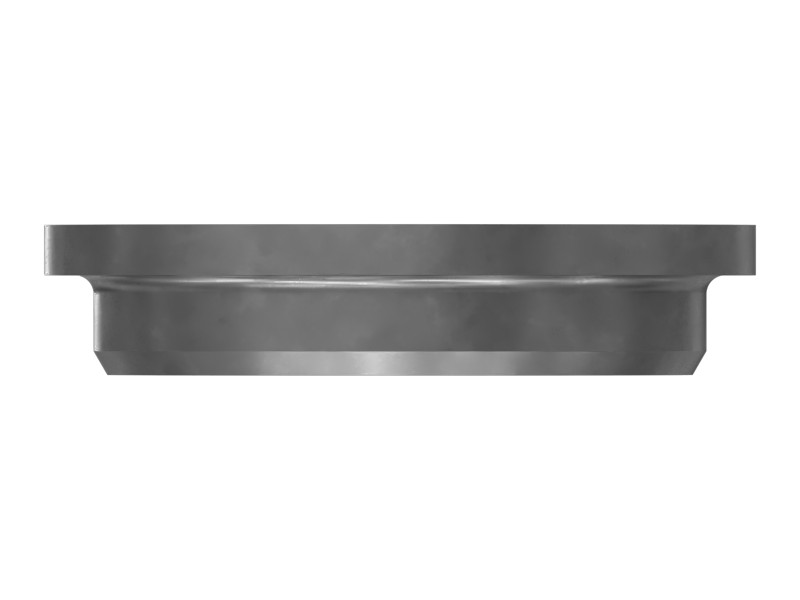

Cat® articulation joint shim, dimensions: 76.3 X 98.4 X 24 mm, flange diameter: 114 mm
Description
388-0813 is a steel shim used on the lower articulation bearing of an articulated joint. Shims are commonly used to provide additional stretch length in a fastener to reduce preload loss or to narrow the cyclic stress range of the machine's work load. They are used to establish and maintain the functional relationship of related parts in machine systems.
Cat shims are designed to improve productivity and reliability and extend service life.
Features
- Steel shim
- Center Hole Shape: Non-Threaded
- Inside Diameter: 76.3 mm (3.00 in)
- Outside Diameter: 98.4 mm (3.87 in)
- Flange Diameter: 114 mm (4.50 in)
- Length: 24 mm (0.95 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Ferrule Outside Diameter | 98.42 mm (3.875 in) |
|---|---|
| Ferrule Inside Diameter | 76.28 mm (3.003 in) |
| Unique Features | No |
| Overall Length | 24.05 mm (0.947 in) |
| Cross Hole | No |
| Flange Thickness | 8.05 mm (0.317 in) |
| Material | 0 | 0 | 0 |
| Coating | Not Specified |
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 76.3 mm (3 in) |
| Outside Diameter | 98.4 mm (3.87 in) |
| Flange Diameter | 114 mm (4.5 in) |
| Length | 24 mm (0.95 in) |
Compatible Equipment
- Track Loaders: 826K, 972
- Compactors: 824K, 825K, 816, 815, 814
- Wheel Loaders: 966M, 972M, 966 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
