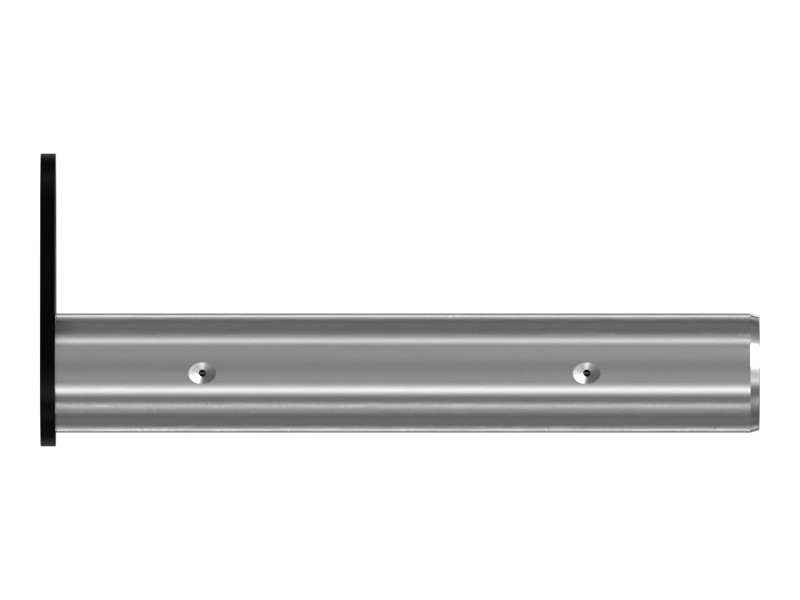

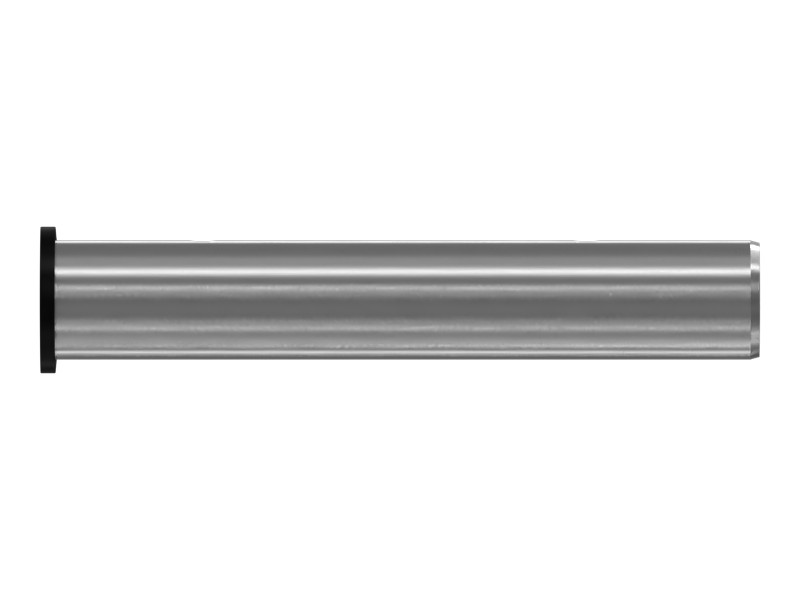

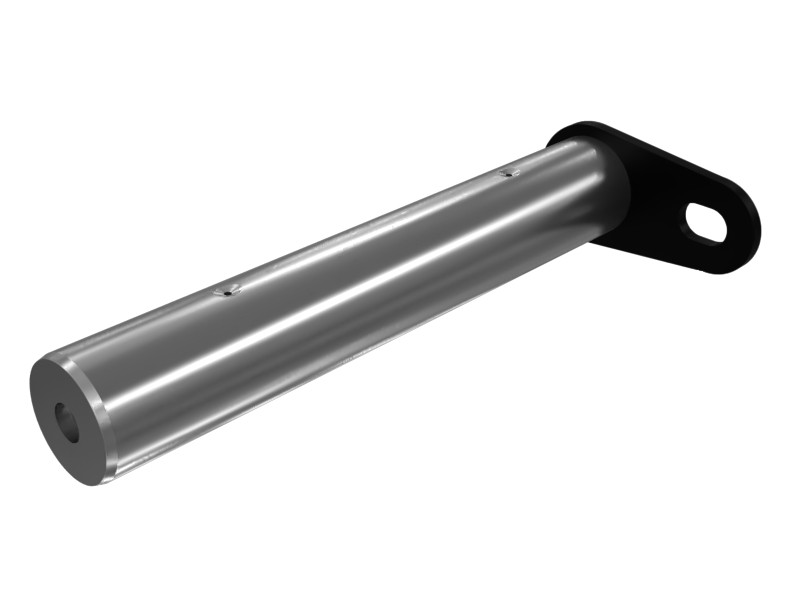

386-3778 Backhoe Boom Pin
Cat® backhoe boom pin secures the boom, allowing it to pivot during digging and lifting operations.
Description
Cat machine linkage pins support rotation between the frame, linkages and work tools. They are used anywhere rotation must occur between two structures. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, heat treatment, surface finish and manufacturing process so it works effectively and wears in sync with all other adjacent and dependent parts.
Features
- Pin Diameter: 65 mm (2.56 in)
- Effective Length: 385 mm (15.15 in)
- Bolt Distance: 85 mm (3.35 in)

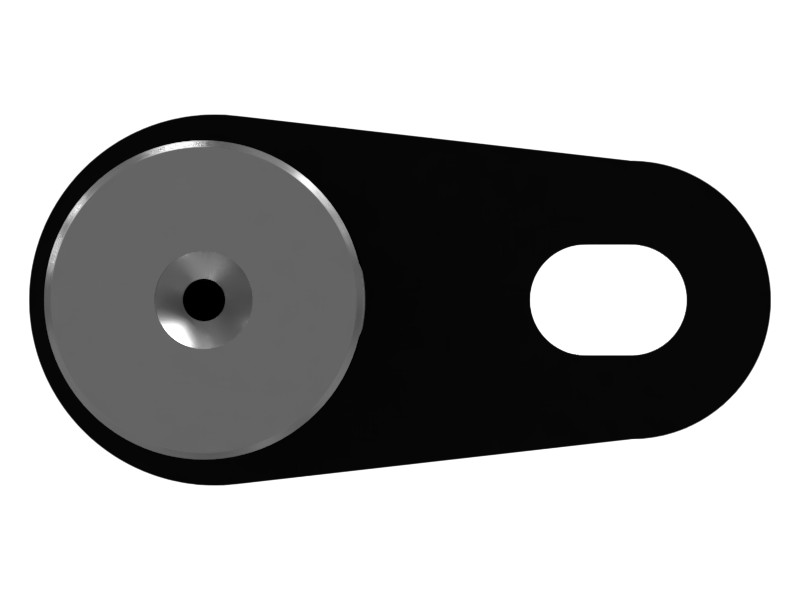

- Slotted mounting holes for easy assembly
- With 1/8-27 NPSF lubrication port
Applications
Cat hardened linkage pins are designed for situations that require superior load-carrying capacity, strength and wear resistance, extending pin joint life. Cat linkage pins are the first choice for maximizing performance in demanding applications.
Specifications
| Internal Grease Passage Hole | Yes |
|---|---|
| Outside Diameter | 65 mm (2.559 in) |
| Puller Thread | No |
| Effective Length | 385 mm (15.157 in) |
| Pin Type | Flag Pin |
| Plating | Zinc Plated |
| Pin Diameter | 65 mm (2.56 in) |
| Length | 385 mm (15.16 in) |
| Removal Aid/Feature | Puller Hole |
| Grease Passage | None |
Compatible Equipment
- Excavators: 432, 434F2, 428F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
