Description

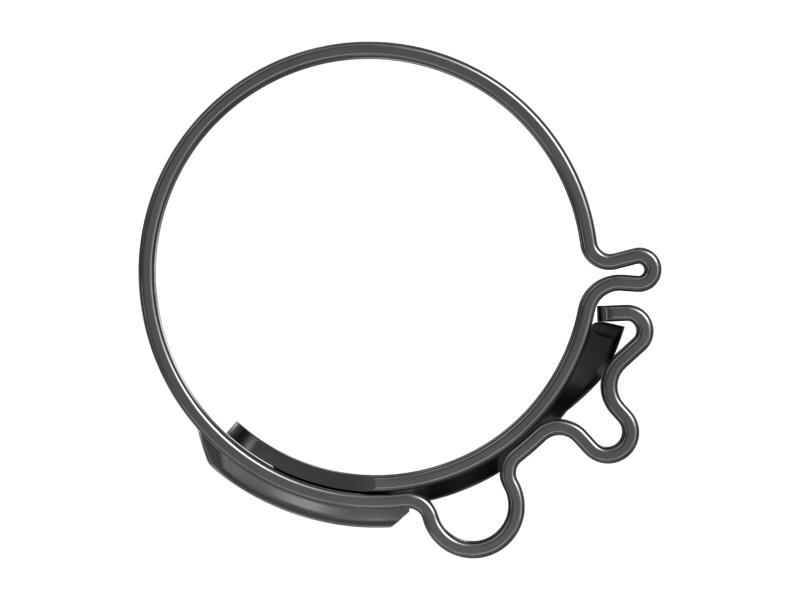

The cobra-style band clamp is a band clamp used to provide a secure, leak-proof seal for tubes in the engine wiring assembly. It consists of a flexible metal band that wraps around the tube and is tightened with a lever mechanism. The metal band has a unique design with a series of interlocking teeth that provide a firm grip on the tube. It can be used to connect a tube to a hose, fitting, or another tube, and can be easily adjusted or removed as needed.
Features
- For clamping tubing with an outside diameter in the 16-17 mm range
- Provides a reliable, secure connection between tube and fitting.
- Able to withstand vibration and exposure to harsh environments.
- Manufactured to exact specifications, designed for outstanding durability, reliability and productivity over its service life.
Applications
The cobra-style band clamp is used to hold or secure tubes in the engine sensor wiring.
Specifications
| Material | Stainless Steel |
|---|---|
| Clamp Width | 8 mm (0.315 in) |
| Hose Clamp Type | Self-Adjusting Diameter |
| Material Description | Stainless Steel |
| Maximum Effective Diameter | 17.0 mm (0.669 in) |
| Minimum Effective Diameter | 16.0 mm (0.629 in) |
| Width | 8 mm (0.3 in) |
Compatible Equipment
- Generator Sets: C7.1
- Motor Graders: 140 GC, 120
- Track Loaders: 963, 953, 963K, 953K
- Compactors: 816, 815, 814
- Engines: C6.6
- Dozers: D6N
- Excavators: 323, 326, XQP200, 336, 333, 330 GC, 329E, 320E, 336 GC, 329E L, 335F LCR, 330GC, 335, 330
- Wheel Loaders: 950, 950 GC, 938M, 924K, 926M, 938K, 966F
Additional information
| Machine Model | 120, 140 GC, 320E, 323, 326, 329E, 329E L, 330, 330 GC, 330GC, 333, 335, 335F LCR, 336, 336 GC, 814, 815, 816, 924K, 926M, 938K, 938M, 950, 950 GC, 953, 953K, 963, 963K, 966F, C6.6, C7.1, D6N, XQP200 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
