Description

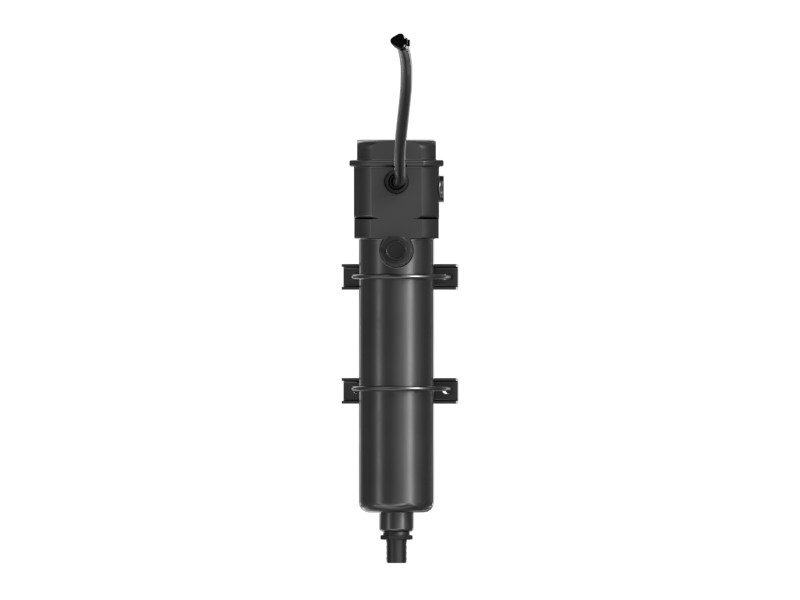

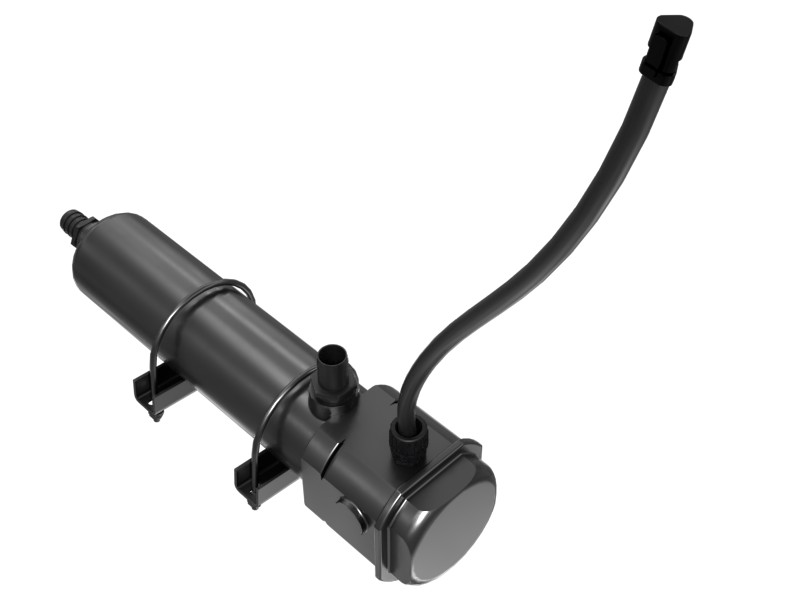

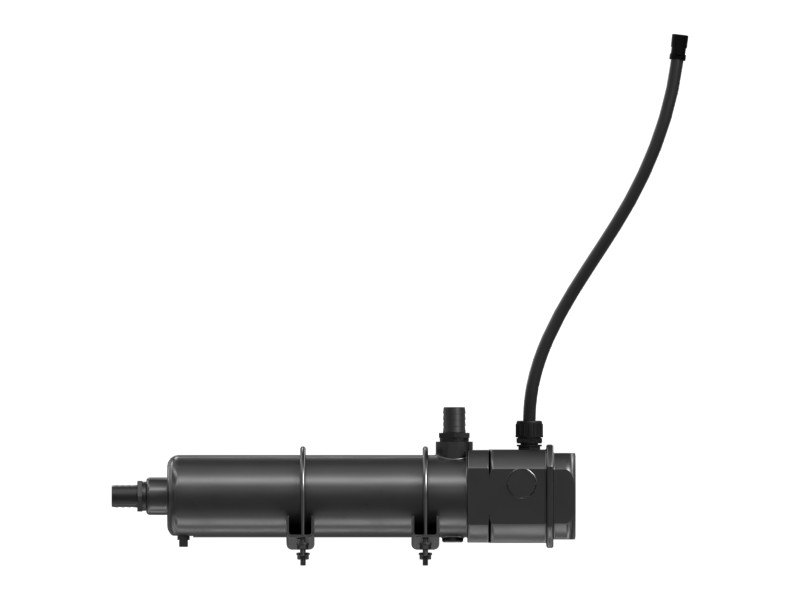

Jacket water heaters (for example, part number 384-5289) are electric immersion heaters installed in the water jacket around the engine block to heat the coolant in cold weather.
Features
- Jacket water heater wires can operate at 240 volts
- 1 in SAE J1231 hose flange connection
- Mounting hole center-to-center distance: 118 mm (4.65 in)
- Length: 473 mm (18.61 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Length | 473 (Body) mm (18.61 (Body) in) |
Compatible Equipment
- Engines: C13, C15, C18
