Description

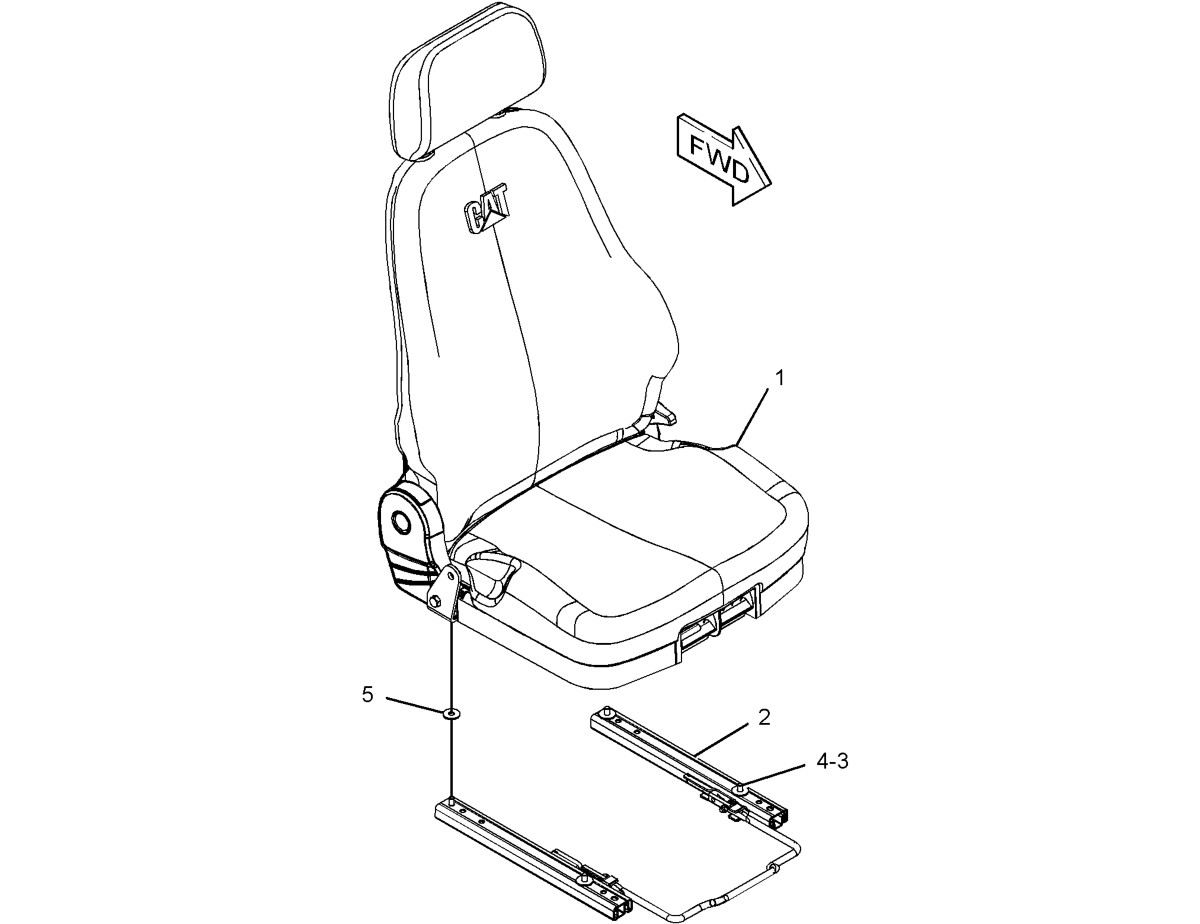

The Cat seat group is designed to provide machine operators with an ergonomic seating option. The suspension seat offers a shock-absorbing suspension system and can be adjusted for convenient operator hand and foot control. Quality is built for demanding work environments and meets your expectations.
Features
- Adjustable seat group with cloth cover and Cat logo on the backrest
- Includes seat group and slide rail group with mounting fasteners
- Fore/aft adjustment
- Adjustable backrest angle
- Adjustable headrest
Applications
Used to provide a heavy duty, safe operator seat for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Width | 650.3 mm (25.6 in) |
| Overall Length | 894.9 mm (35.23 in) |
| Overall Height | 490.2 mm (19.3 in) |
Compatible Equipment
- Excavators: 336D2 L, 320D2 GC, 313D2, 323D L, 320D L, 320D FM, 318D2 L, 320D2 L, 329D L, 312D2 GC, 312D2 L, 324D, 330D2 L, 336D L, 324D L, 336D2 XE, 326D L, 313D, 313D2 GC, 315D L, 330D2, 320D GC, 318D L, 323D2 L, 336D2 GC, 312D2, 313D2-GC, 312D, 340D2 L, 349D L, 340D L, 336D2, 326D2 L, 320D2, 329D2, 320D, 336D, 329D, 329D2 L, 326D2, 349D2, 349D, 349D2 L
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 312D, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 315D L, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323D L, 323D2 L, 324D, 324D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 349D, 349D L, 349D2, 349D2 L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
