Description
Cat tube assemblies are designed to direct liquids and gases through machine systems. These tube assemblies are made of quality materials to withstand the specific pressure, vibration resistance, and flow requirements of Cat heavy equipment. Low-pressure fuel lines have a conductive layer and conductive connectors to prevent electrostatic discharge.
Features

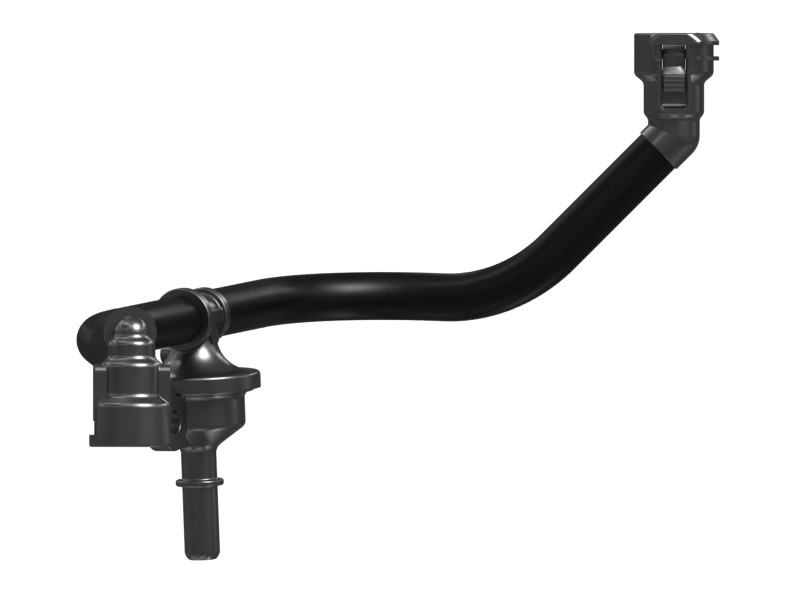

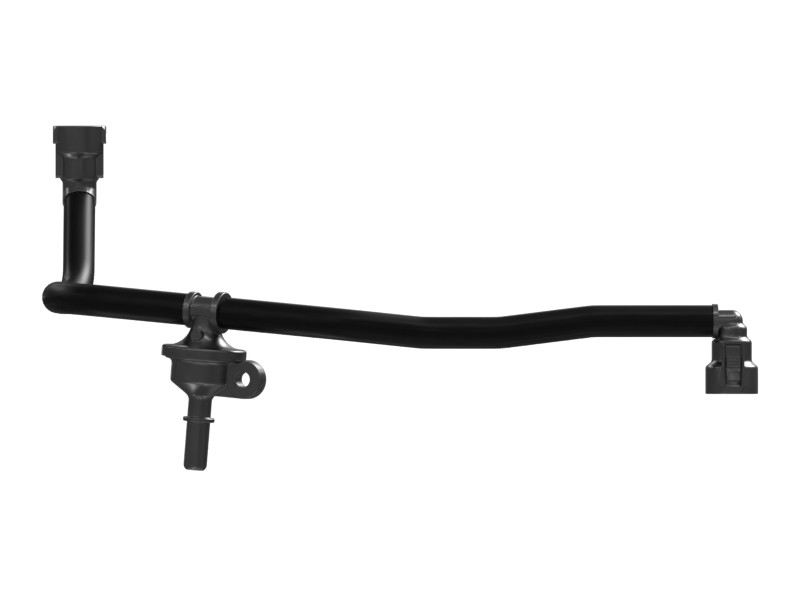

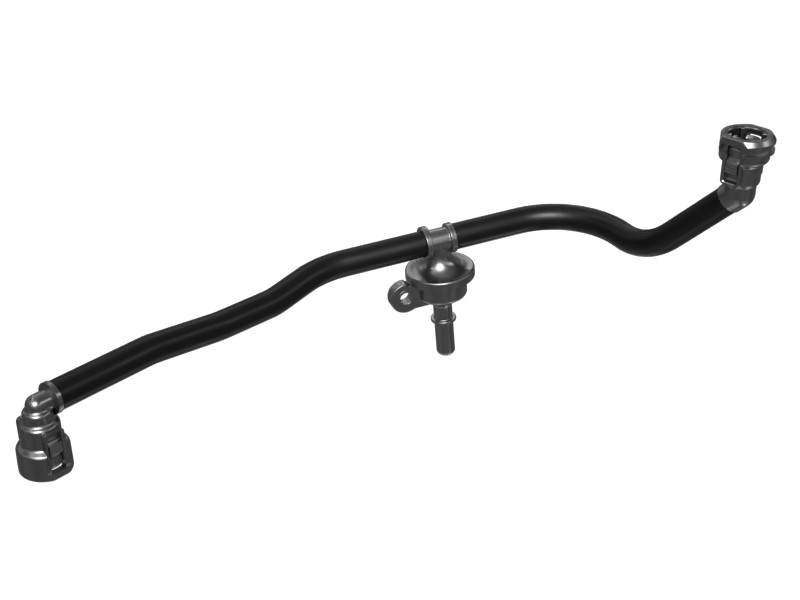

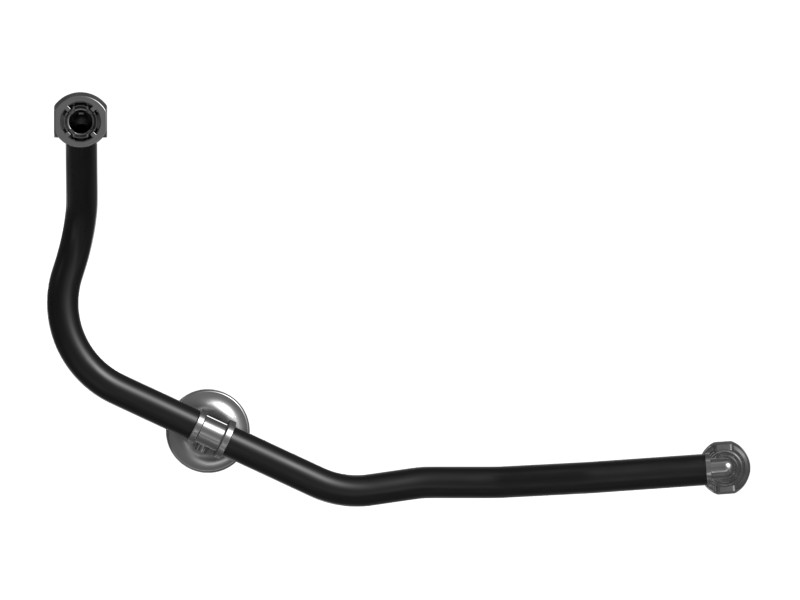

- Fuel line group with relief valve and connector
- Material: Conductive Nylon
- Operating Temperature: -35°C to 95°C (-31°F to 203°F)
Applications
Used on the fuel filter assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Height | 69.8 mm (2.75 in) |
|---|---|
| Overall Width | 164.8 mm (6.49 in) |
| Overall Length | 350 mm (13.78 in) |
| Material Description | Conductive Nylon |
| Material | Plastic Plastic |
Compatible Equipment
- Generator Sets: C4.4
- Cold Planers: PL61
- Compactors: CS12, CB-44B, CW-34, CB-66B, CP56B, CS56B, CS68B, CS78B, CS74B, CB16, CB-64B, CS11, CB10, CB13, CB15, CS-54B
- Dozers: D3K2 LGP, D5K2 XL, D6K2, D4
- Excavators: 120 GC, 416F2, 428F, 434F2
Additional information
| Machine Model | 120 GC, 416F2, 428F, 434F2, C4.4, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP56B, CS-54B, CS11, CS12, CS56B, CS68B, CS74B, CS78B, CW-34, D3K2 LGP, D4, D5K2 XL, D6K2, PL61 |
|---|---|
| Equipment Type | Excavators, Dozers, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
