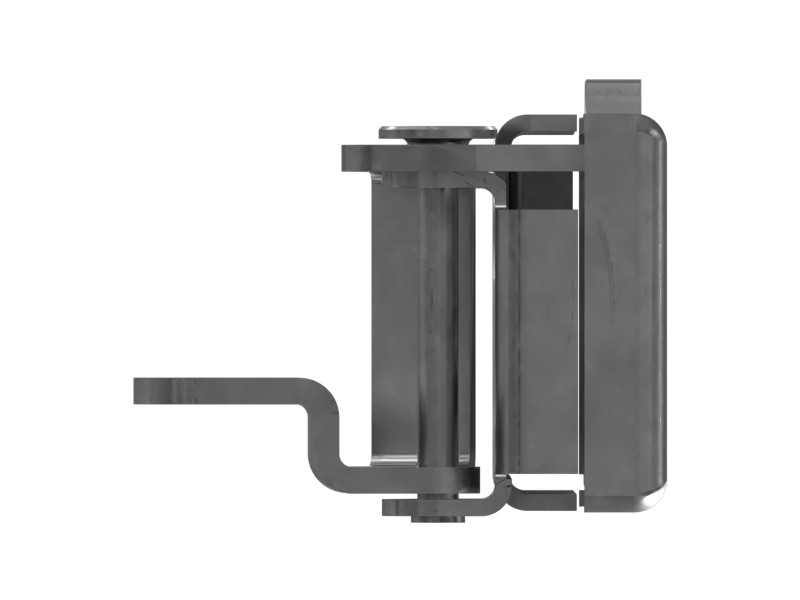

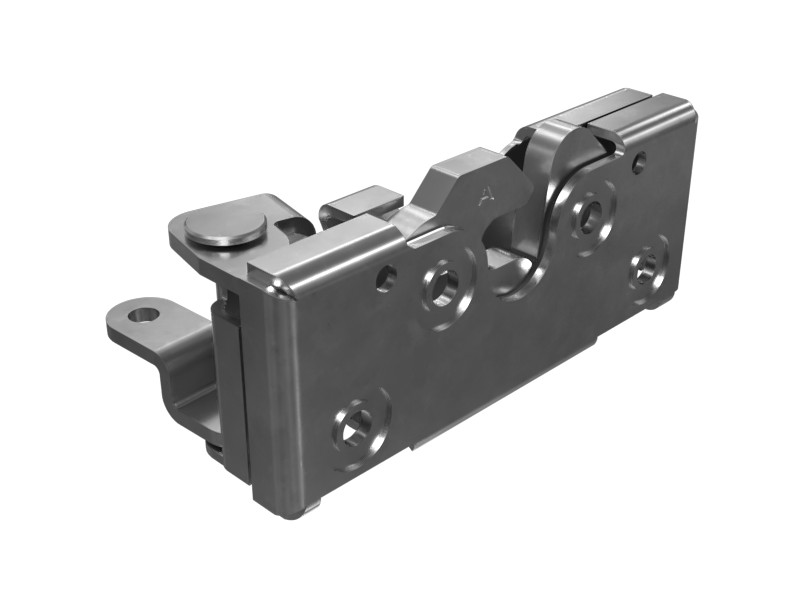

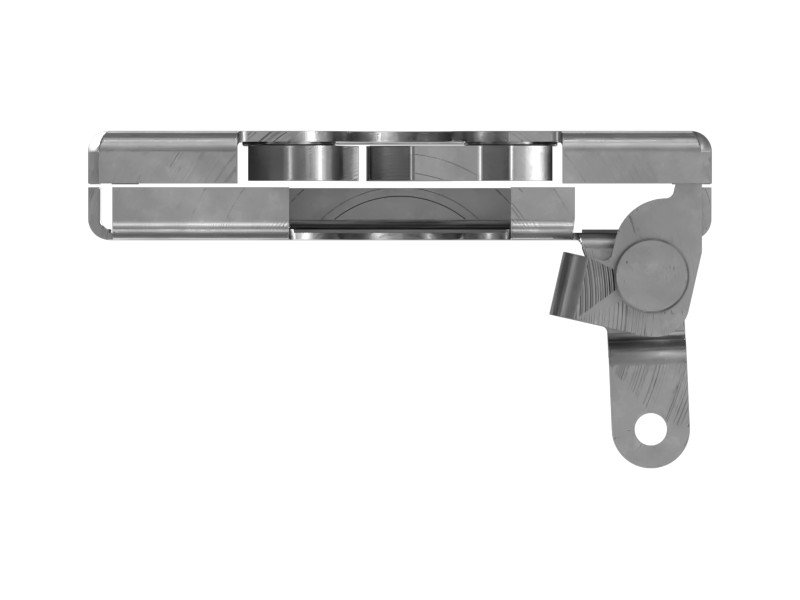

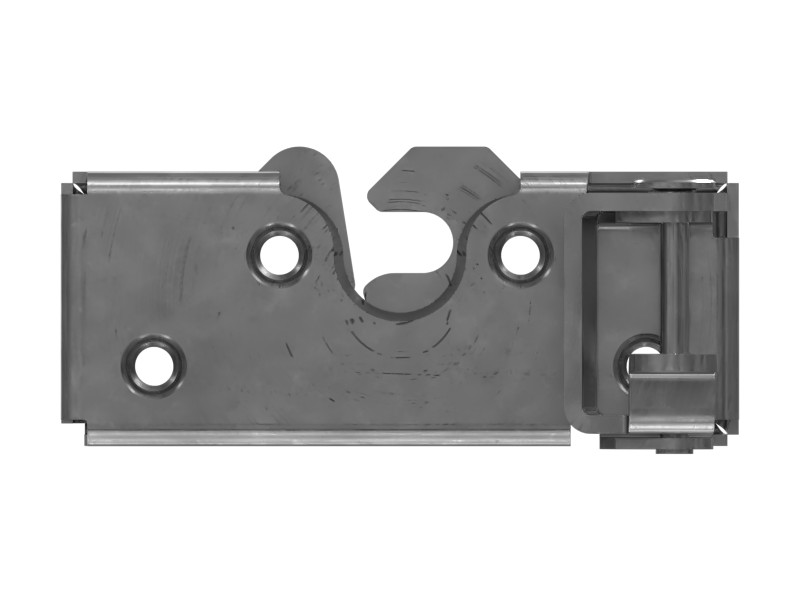

Description
Cat locks are used to keep doors, access panels or guards closed. Cat locks are designed to provide easy access to specific compartments and keep the compartments closed while the unit is in use.
Features
- Locking unit is stronger and lasts longer.
- Locking
- Easy to assemble •
Specific independent mechanisms satisfy all locking purposes.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Used for the cab door on Cat hydraulic mini excavators. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Zinc Plated |
|---|---|
| Overall Height | 113.7 mm (4.476 in) |
| Overall Length | 50.2 mm (1.976 in) |
| Width | 19.8 mm (0.78 in) |
| Fits Bolt Size | M6 mm (1/4-20 in) |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: C7.1, 3512B
- Wheel Excavators: M315GC
- Excavators: 330D L, 349F L, 313 GC, 316 GC, 313, 313D2, 336F LN, 324D L, 336E L, 330D, 329D L, 320D GC, 336D2 L, 318D L, 336D2 XE, 336E LN, 315D L, 336D L, 328D LCR, 336F, 312E L, 323D L, 312D L, 336F L XE, 313D, 312D2, 336D2 GC, 325D L, 320E, 336F L, 320D L, 335F LCR, 324D, 336E LH, 312E, 330D2, 323D2 L, 320D2 L, 312D, 330D2 L, 318D2 L, 325D, 311D LRR, 313F L, 326D L, 329E L, 340D2 L, 349E, 390F, 349D L, 340D L, 349E L VG, 6015B, 374F L, 345D L, 345C, 352F, 349E L, 345D, 336E, 320D2 GC, 312D2 GC, 312F, 320D3, 313D2 GC, 312D2 L, 323D2, 329E, 320D RR, 313D2-GC, 316 GX, 312 GX, 323D, 336E H, 313 GX, 320 GX, 323 GX, 312 GC, 6015, 329D2 L, 320D2, 329D2, 336D2, 326D2, 329D, 326D2 L, 349D2 L, 349D, 349D2, 390F L, 374F, 320D, 336D
Additional information
| Machine Model | 311D LRR, 312 GC, 312 GX, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2-GC, 313F L, 315D L, 316 GC, 316 GX, 316F, 318D L, 318D2 L, 320 GX, 320D, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323 GX, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345C, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 374F, 374F L, 390F, 390F L, 6015, 6015B, C7.1, M315GC |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
