Description

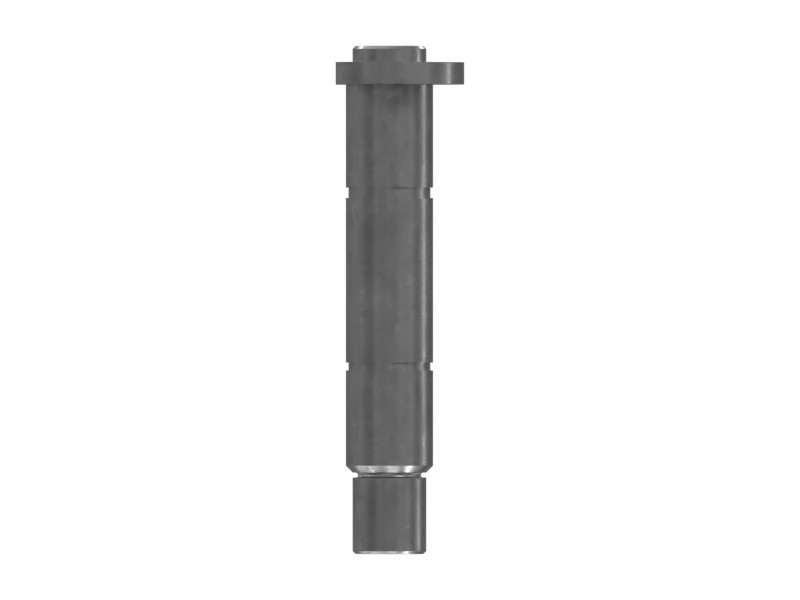

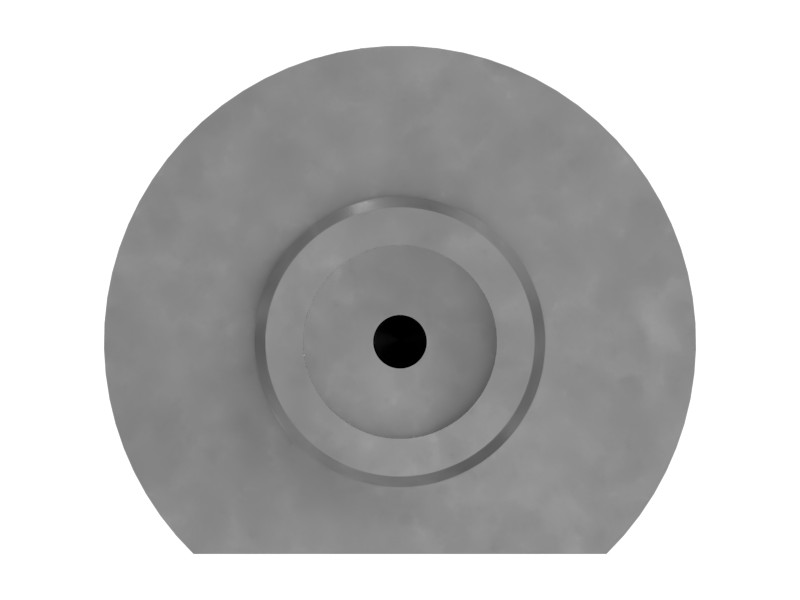

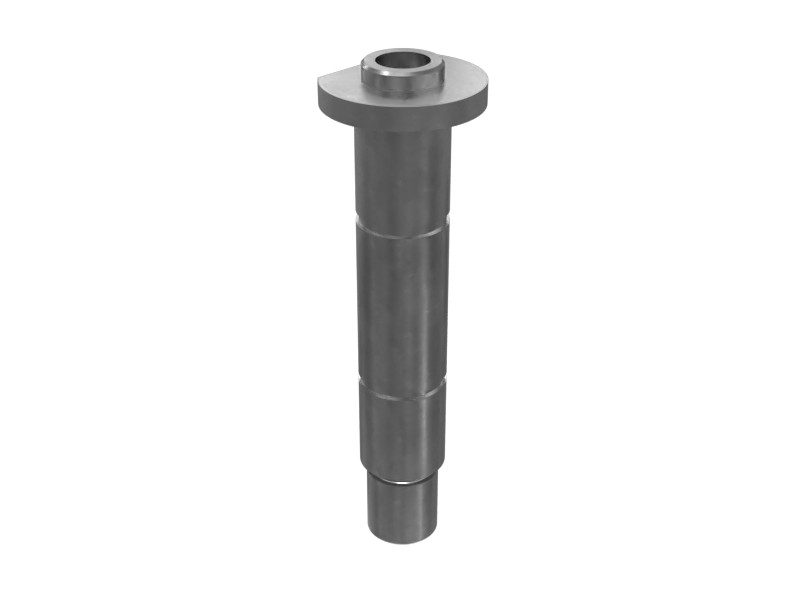

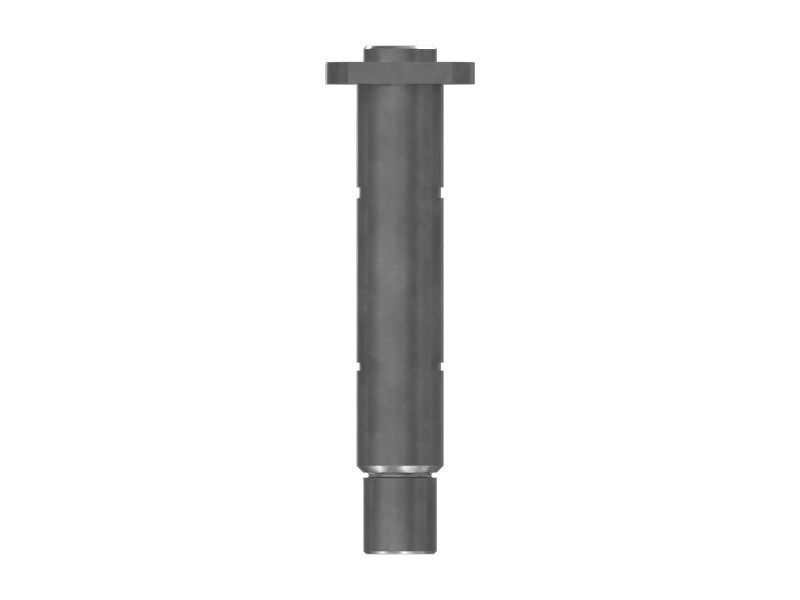

Cat® pin. Meet your needs precisely with Genuine Cat parts.
Features
OEM direct replacement
Pin Diameter: 36 mm (1.417 in)
Pin Length: 187 mm (7.362 in)
Material: Steel
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 32 mm (1.26 in) |
|---|---|
| Overall Length | 187 mm (7.362 in) |
| Diameter | 32 mm (1.26 in) |
| Puller Thread | Yes |
| Effective Length | 144 mm (5.669 in) |
| Internal Grease Passage Hole | Yes |
| Plating | No Plating |
| Material Description | Steel |
| Pin Diameter | 36 mm (1.42 in) |
| Pin Length – B | 7.36 in |
| Weight | 1.23 kg (2.71 lb) |
Compatible Equipment
- Mini Excavators: 301.7D CR
- Excavators: 301.7D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
