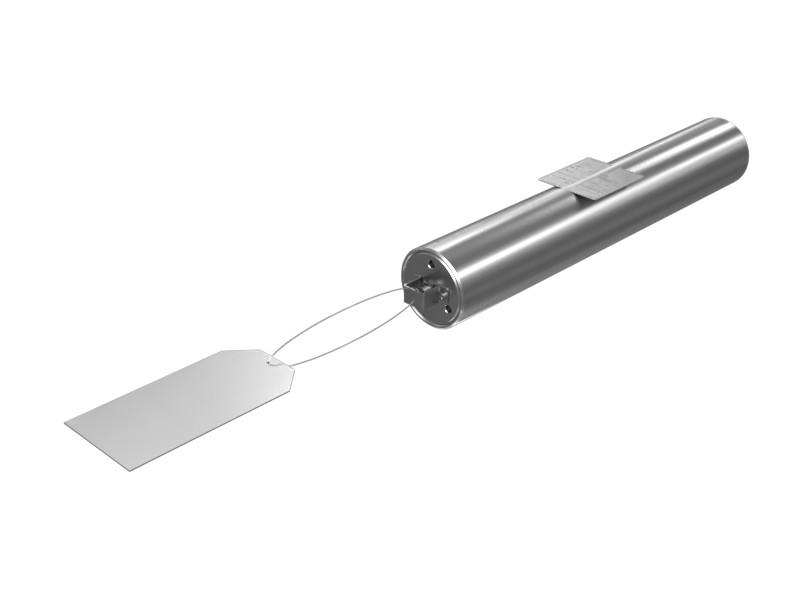

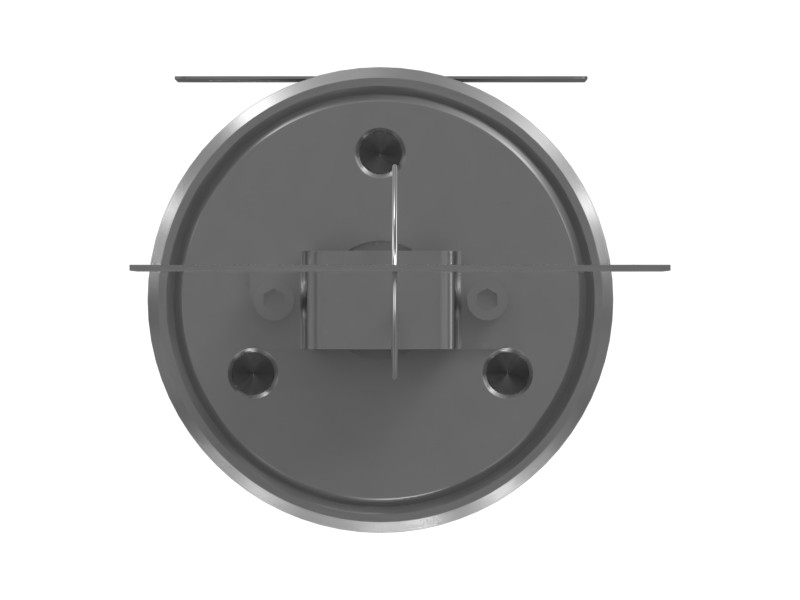

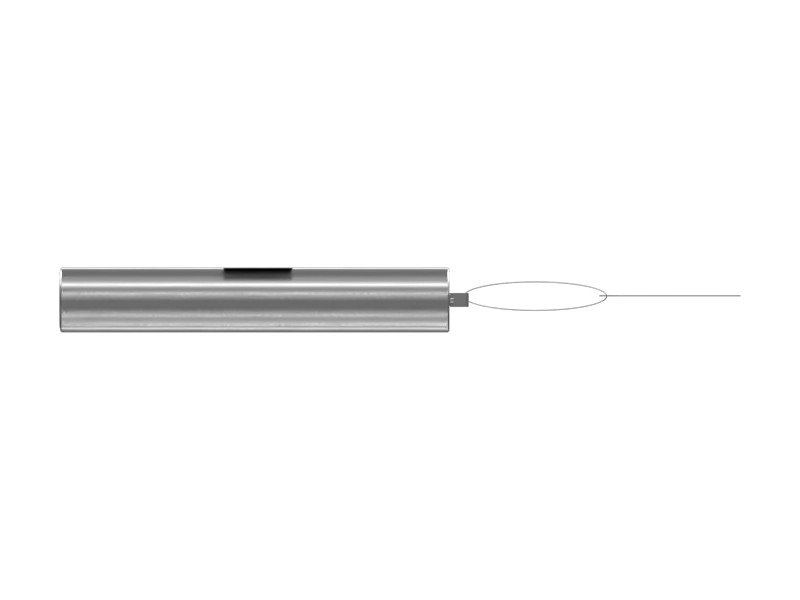

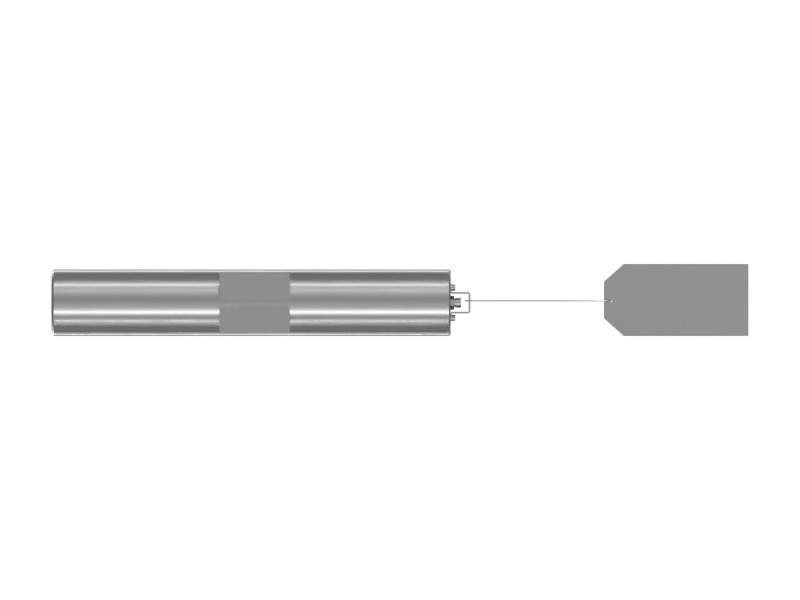

Description
An accumulator is a pressure storage vessel that a hydraulic system can use to manage extreme system demands. By storing pressure in the accumulator, the hydraulic system can use a lower-power pump to meet urgent, temporary pressure demands.
Features
- Uncharged accumulator
- SAE Port No. 8 (3/4-16 UN)
- Vessel Capacity: 1.98 L (121 cu. In.)
- Maximum Working Pressure: 25000 kPa (3625 psi)
- Charge Medium: Dry Nitrogen
Applications
Cat® accumulators are versatile. For example, they are used in hydraulic systems to enable the system to manage pressure surges, a condition that can produce enormous loads. They can also be used in brake systems and suspension systems.
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 571.6 mm (22.5 in) |
| Outside Diameter | 90.4 mm (3.55 in) |
Compatible Equipment
- Motor Graders: 16M
- Wheel Loaders: 966M, 982M, 980M, 972M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
