Description
Metric

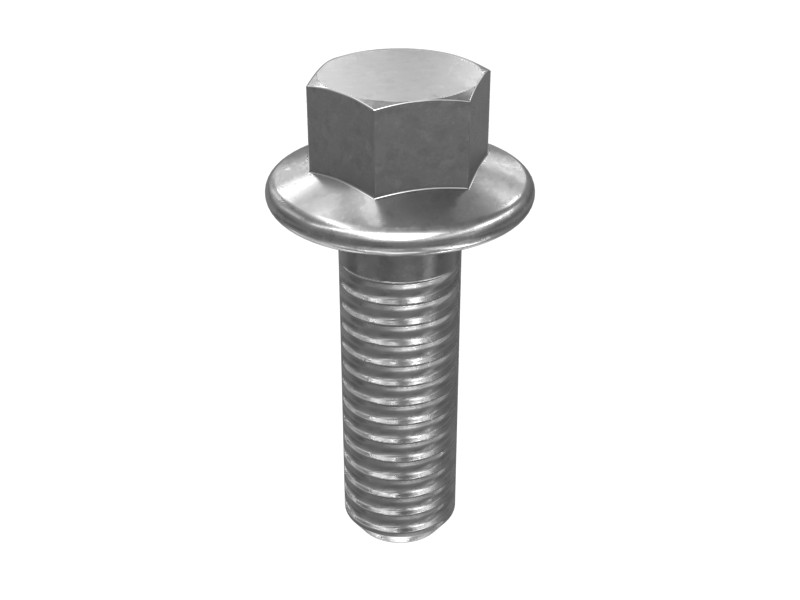

Cat bolts form a matched system with mating hardened washers and nuts to produce sustained high clamping force.
Features
- Thread Size: M8
- Material: Steel
- Coated
Specifications
| Class or Grade | A286 900 MPa (130 ksi) UTS |
|---|---|
| Coating | Molydenum Disulfide |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Hex Size | 10 mm (0.39 in) |
| Thread Direction | RH |
| Bolt Length | 25 mm (0.98 in) |
| Bolt Type | Hex Flange Head Bolt |
| Handle Length | 3.75 mm (0.148 in) |
Compatible Equipment
- Generator Sets: C4.4, C7.1
- Track Loaders: 953K, 963K, 963, 953
- Cold Planers: PL61
- Compactors: CW-34, CB-66B, CB-44B, CB16, CB-64B, 815, 816, 814, CP56B, CS56B, CS68B, CS78B, CS74B, CS12, CS11, CB13, CB10, CB15, CS-54B
- Engines: C6.6
- Excavators: 330, 323, 329E L, 312E L, 326, 330 GC, 330GC, 320E, 336 GC, 329E, 320 GC, 320, 312F, 313F L, 325, 315F LCR, 312E, 335F LCR, 434F2, 428F, 416F2, 335, 323 GX, 120 GC, XQP200, 336, 320 GX, 326 GC, 323 GC, 333
- Asphalt Pavers: AP655F
- Motor Graders: 120, 140 GC, 316F
- Wheel Excavators: M320, M315, M315GC
- Dozers: D3K2 LGP, D6K2, D5K2 XL, D6N, D4
- Wheel Loaders: 950, 926M, 938K, 938M, 966F, 924K, M314, 950 GC
Additional information
| Machine Model | 120, 120 GC, 140 GC, 312E, 312E L, 312F, 313F L, 315F LCR, 316F, 320, 320 GC, 320 GX, 320E, 323, 323 GC, 323 GX, 325, 326, 326 GC, 329E, 329E L, 330, 330 GC, 330GC, 333, 335, 335F LCR, 336, 336 GC, 416F2, 428F, 434F2, 814, 815, 816, 924K, 926M, 938K, 938M, 950, 950 GC, 953, 953K, 963, 963K, 966F, AP655F, C4.4, C6.6, C7.1, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP56B, CS-54B, CS11, CS12, CS56B, CS68B, CS74B, CS78B, CW-34, D3K2 LGP, D4, D5K2 XL, D6K2, D6N, M314, M315, M315GC, M320, PL61, XQP200 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
