Description
8PK serpentine belt is a drive belt used for the alternator. 8PK refers to the belt profile, which has 8 ribs or grooves that provide a larger surface area for increased grip and reduced slippage. Usually made of rubber material for flexibility.
Features
- Able to withstand high tension and pressure.
- Multiple ribs enhance traction.
Applications
8PK serpentine belt is used to transfer power from the engine to the alternator without slipping.
Specifications
| Belt Type | Serpentine Belt |
|---|---|
| Belt Length | 1093 mm (43.03 in) |

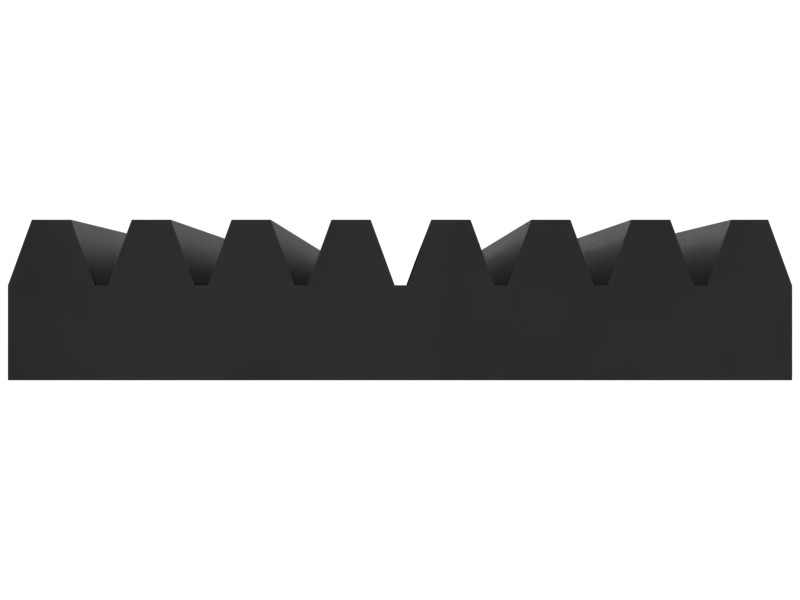

| Cross-Section | 5.71 mm (0.22 in) |
| Material | Rubber |
| Weight | 0.15 kg (0.33 lb) |
| Belt Width | 27.94 mm (1.10 in) |
| Number of Ribs | 8 |
Compatible Equipment
- Generator Sets: 3512B, 3512E, 3516C
- Excavators: 3512C, 3508B, 3516E, 3516B
- Off-Highway Trucks: 789D, 785, 789, 785D, 793D
