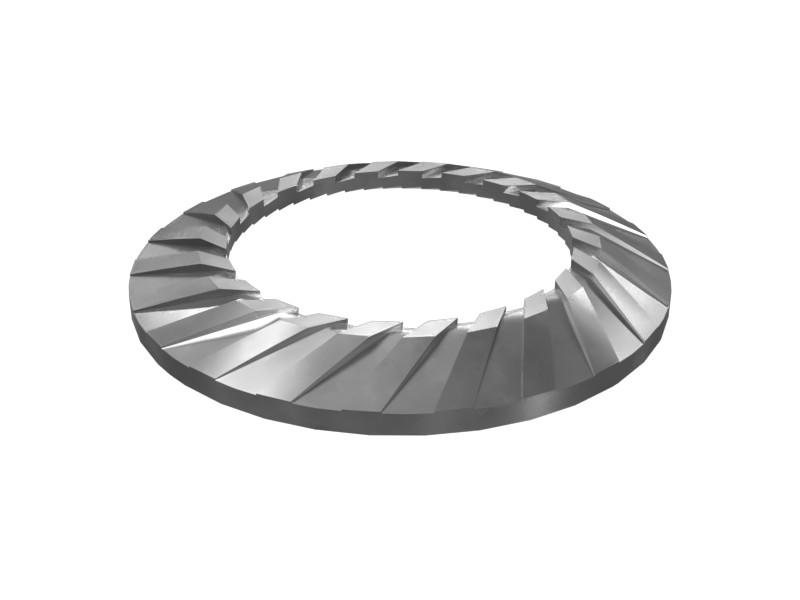

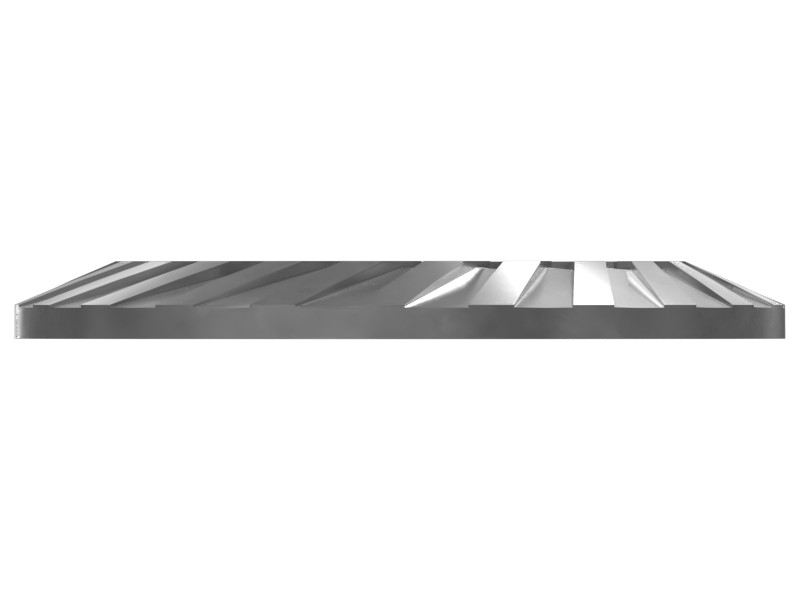

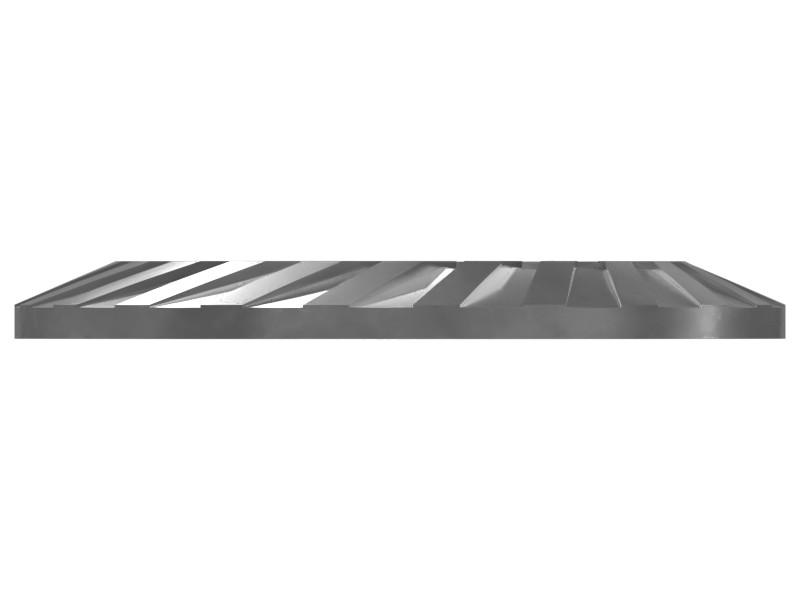

372-1077 0.64 mm Thick Conical Spring Washer
Cat® 0.64 mm Thick Steel Belleville Spring Serpentine Washer Used in Engine
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The conical spring washer is designed to prevent accidental loosening or rotation. This forms an elastic locking mechanism that counteracts the effects of vibration and shock, thereby maintaining the required clamping force on the bolt. When compressed between the nut ring and the mating surface and radial pressure is applied, this pressure creates friction and resists any rotational force applied to the nut, effectively preventing accidental loosening.
Attributes
- Prevents excessive movement of components
- Maintains spring effect when compressed, providing impact resistance
Applications
The conical spring washer is used to resist rotational forces, ensuring that the nut ring is securely held between the mounted components.
Specifications
| Coating | Mechanical Zinc |
|---|---|
| Outside Diameter | 10 mm (0.394 in) |
| Thickness | 1 mm (0.039 in) |
| Inside Diameter | 6.4 mm (0.252 in) |
| Gasket Type | Spring-Conical |
Compatible Equipment
- Mini Excavators: 301.7D CR
- Excavators: 301.7D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
