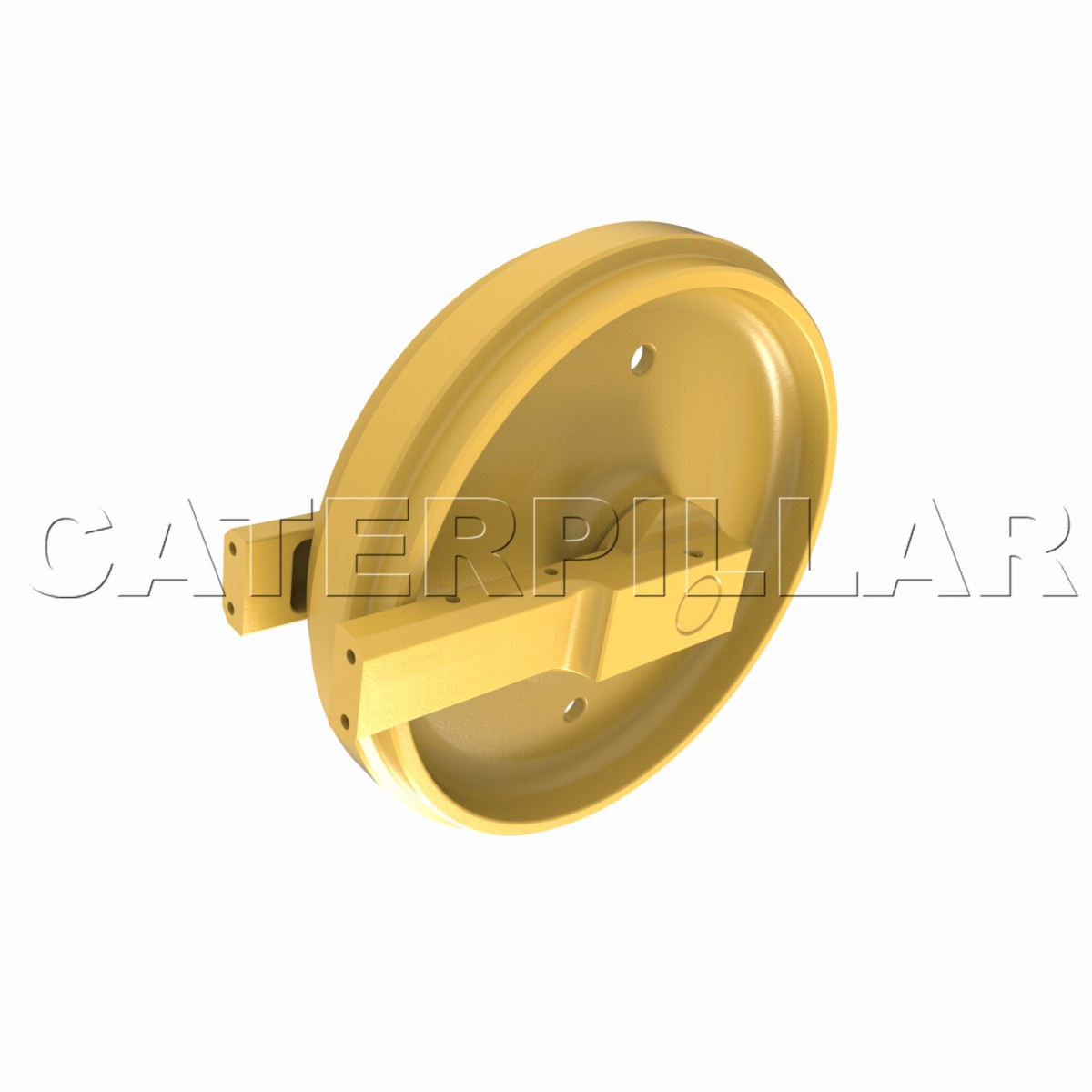

365-4182 332 mm OD Track Idler
Heavy Duty Idler Assembly
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Idlers guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Specifications
| Shaft Diameter | 50 mm |
|---|---|
| Flange Type | Center Flange |
| Length | 341 mm |
| Height | 332 mm |
| Flange Diameter | 332 mm (13.1 in) |
| Chassis Width | 238 mm |
| Machine Side | Unknown |
| Tread Type | Unknown |
| Undercarriage System | HD |
| Application | Standard Application |
| Shaft Length | 238 mm (9.37 in) |
| Idler Rim Width | 113 mm (4.449 in) |
| Center Flange Diameter | 300 mm (11.811 in) |
| Bearing Mounting Length | 175 mm (6.89 in) |
| Center Flange Width | 57 mm (2.244 in) |
| Shaft Protrusion Length | 39 mm (1.535 in) |
| Shaft Outside Diameter | 65 mm (2.559 in) |
| Tread Diameter | 300 mm (11.8 in) |
Additional information
| Part Source | Genuine OEM |
|---|
