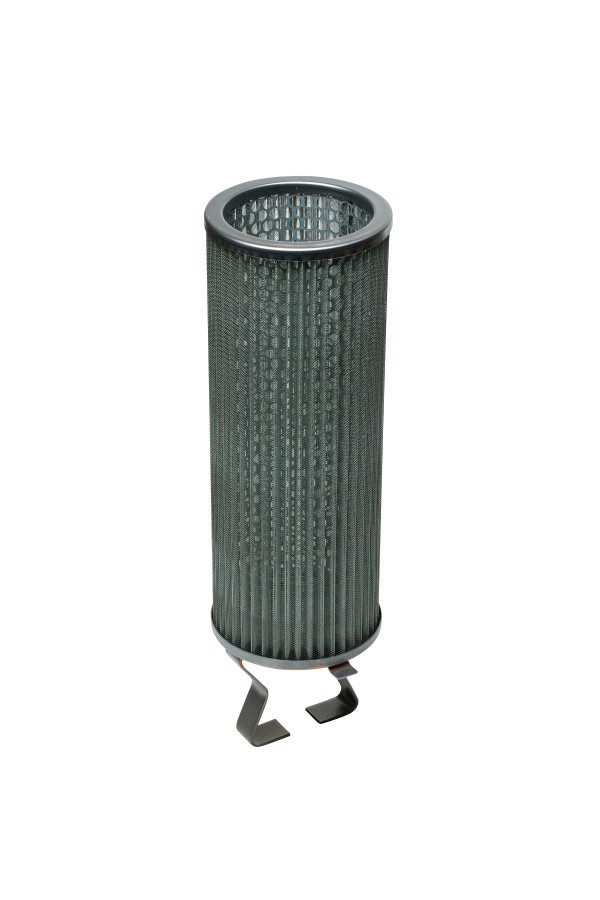

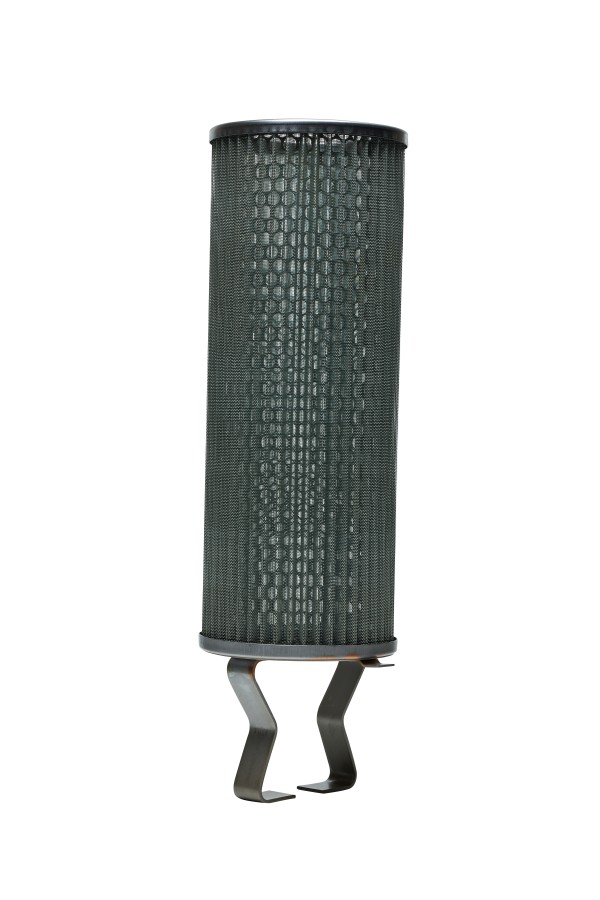

364-8521 486.5 mm Long Engine Oil Pan Suction Screen
Cat® 486.5 mm Long Engine Oil Pan Suction Screen
Description
The engine oil pan suction screen is located inside the engine oil pan. It is designed to prevent debris, contaminants and other foreign particles from entering the engine lubrication system. The suction screen sits at the bottom of the oil pan and is connected to the oil pump. When the engine is running, the oil pump draws oil through the screen and pumps it to the engine components that require lubrication.
Features
- Improves fuel efficiency through enhanced engine lubrication.
- Ensures improved oil filtration.
Applications
The engine oil pan suction screen filters impurities from the oil and protects the engine's moving parts from damage.
Specifications
| Material | Alloy Copper |
|---|---|
| Length | 486.5 mm (19.154 in) |
| Width | 147 mm (5.787 in) |
| Height | 486.5 mm (19.153 in) |
| Material Description | Steel |
| Outside Diameter | 147 mm (5.787 in) |
Compatible Equipment
- Engines: C175-16
- Off-Highway Trucks: 798 AC, 796 AC, 797F, 793F, 794 AC, 793
