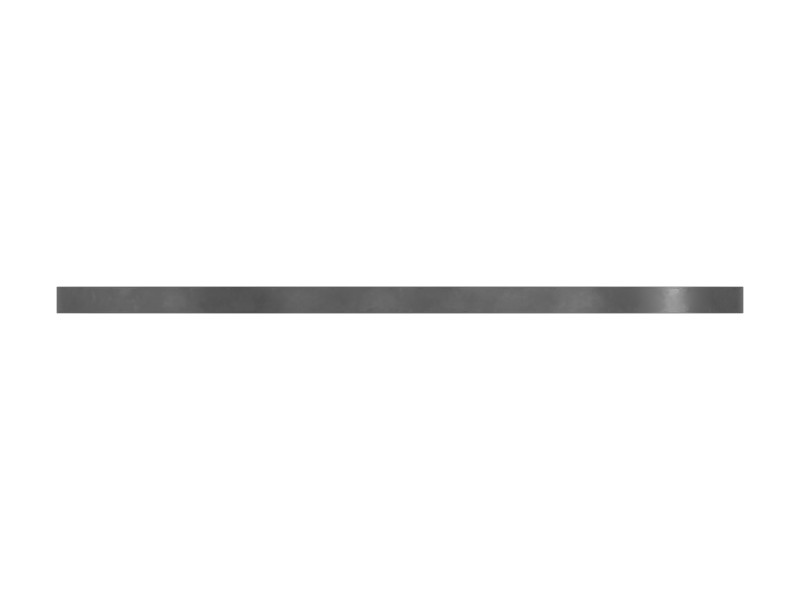

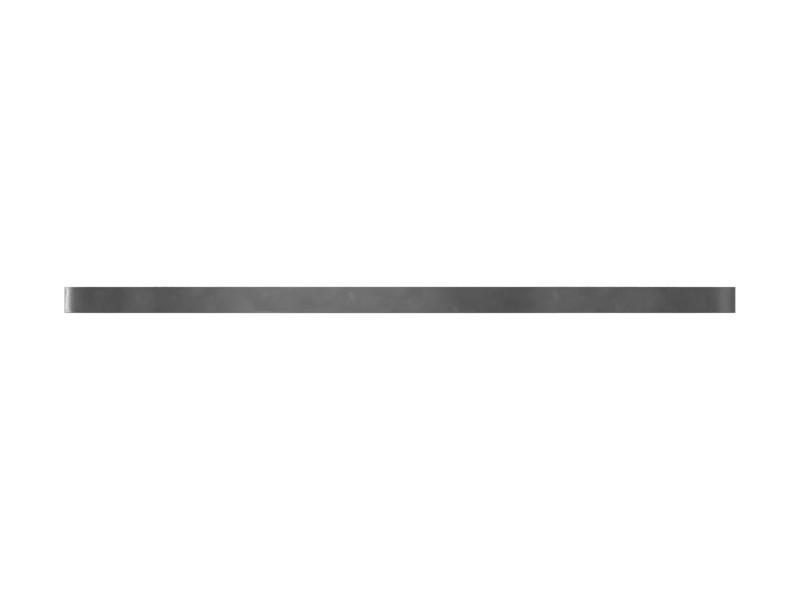

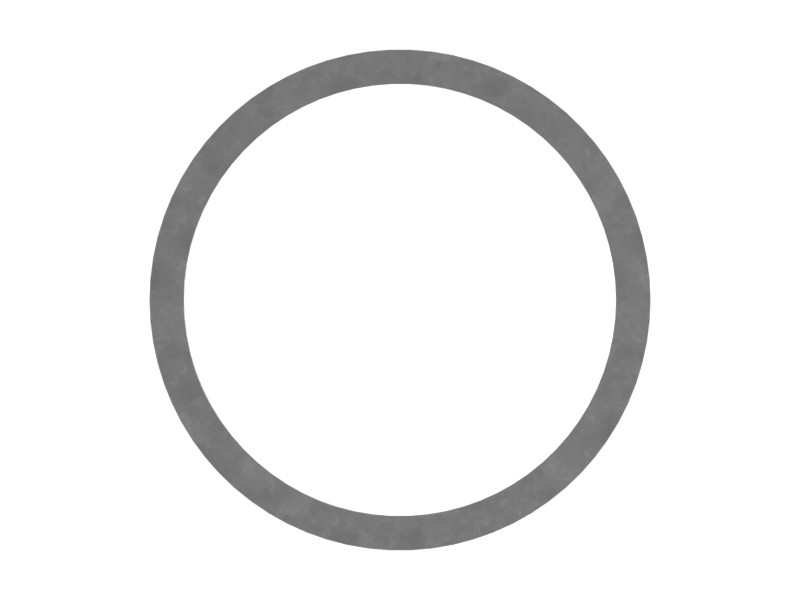

364-1978 28.626 mm ID Support Ring
Cat® plastic support ring for excavator pressure reducing valves
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Backup rings are available in two types: closed rings and split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material Description | Fluorinated plastic provides excellent chemical resistance and is suitable for high-temperature applications. |
|---|---|
| Inside Diameter | 28.6 mm (1.13 in) |
| Material | Fluorinated Plastic |
| Cross-Section Width | 1.3 mm (0.05 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Height | 2.2 mm (0.09 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 320, 336E L, 336E LN, 336E, 323D L, 335F LCR, 320D L, 330D2, 320D2 GC, 336F L, 329D L, 336F, 323, 323D2 L, 320D2 L, 336F L XE, 336F LN, 336D2 GC, 336D2 L, 320D RR, 336E LH, 336E H, 320E, 323D2, 329E L, 320D GC, 336D L, 328D LCR, 324D L, 324D, 320D FM, 320 GC, 336D2 XE, 325D L, 330D2 L, 323D, 330D, 326D L, 329E, 340D2 L, 340D L, 320D, 320D2, 329D2 L, 326D2 L, 329D, 336D2, 336D, 329D2, 326D2
Additional information
| Machine Model | 320, 320 GC, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
