Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Thread Size | M8 mm (0 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Bolt Length | 95 mm (3.74 in) |
| Material | Steel |

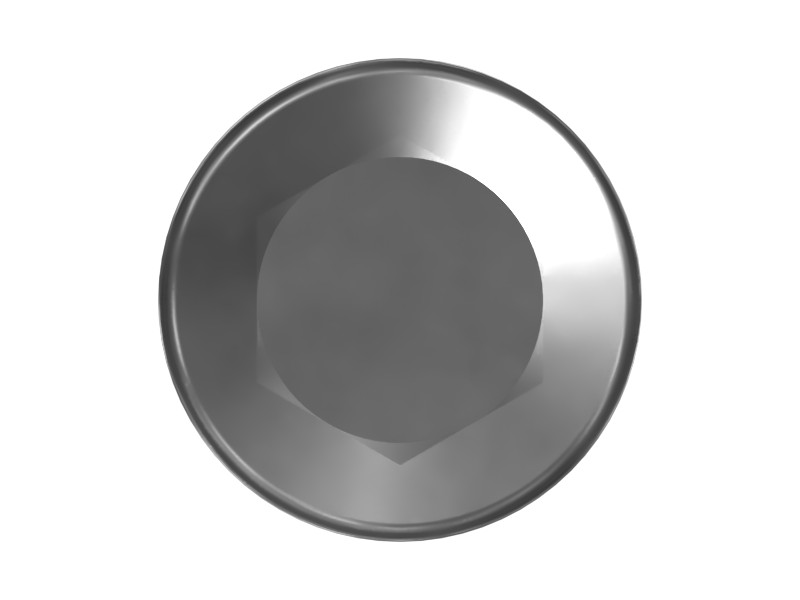

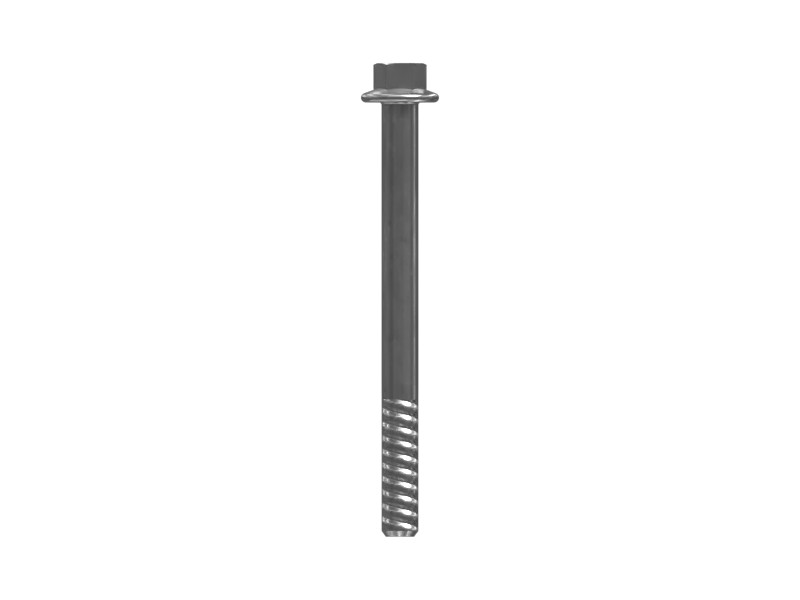

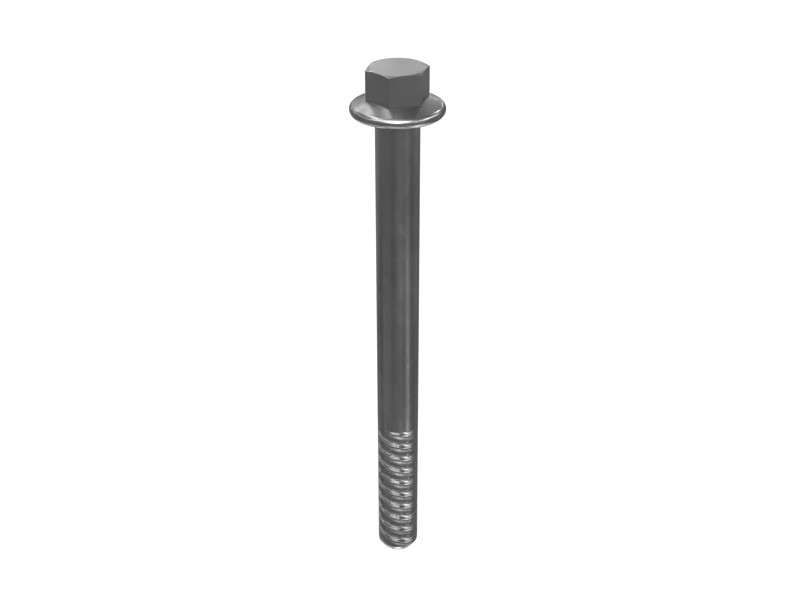

| Bolt Type | Flange Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 65 mm (2.559 in) |
| Flange Type | Smooth Flange Face |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Flange Diameter | 17 mm |
Compatible Equipment
- Motor Graders: 316F, 120
- Generator Sets: C7.1, 3512B
- Wheel Excavators: M315, M320, M315GC
- Excavators: 313, 316 GC, 313 GC, 312 GC, 335, 333, 323 GX, 315 GC, 320 GC, 313 GX, 312 GX, 329E, 320D2 GC, 312D2 GC, 313D2, 329E L, 312E L, 320D L, 323D2 L, 330 GC, 318D2 L, 320D GC, 320D2 L, 330D2 L, 325, 320 GX, 320, 326, 336 GC, 326 GC, 333 GC, 336, 323 GC, 323, 316 GX, 330D2, 313F LGC, 330GC, 320E, 323GC, 312E, 323D2, 315, 313F L, 312D2 L, 335F LCR, 318D2, 313D2 GC, 312D2, 326GC, 315F LCR, 323D L, 312F, 313D2-GC, 330, 320D2, 326D2 L, 329D2 L, 320D, 326D2, 329D2
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 120, 312 GC, 312 GX, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 316F, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 325, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, C7.1, M314, M315, M315GC, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
