Description

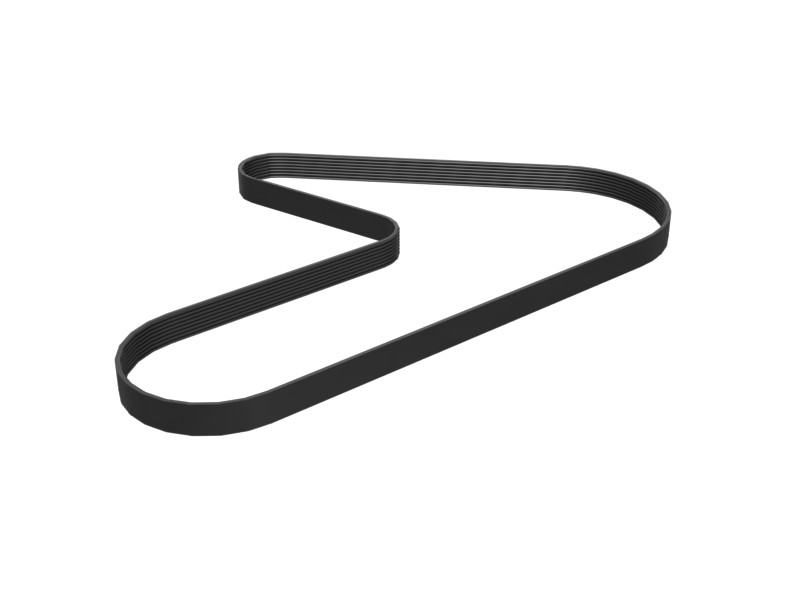

The serpentine belt is also known as an auxiliary drive belt, fan drive belt, and drive belt. The belt is long and winds through multiple pulleys. The serpentine belt is a long rubber belt used to transmit power to engine accessories such as the alternator, power steering pump, air conditioning compressor, and water pump.
Features
- Uses Orion Rib compound, a carbon black rubber that helps achieve a good balance of wear resistance.
- The effective length of the belt is 1753 ± 6 mm.
- Made of flexible materials, such as rubber or synthetic polymers, so it can bend and coil.
- Outstanding wear resistance.
Applications
The serpentine belt is used in various systems such as the alternator, fan drive, and generator.
Specifications
| Material | Rubber & Fiber Rubber |
|---|---|
| Type | Serpentine Belt |
| Belt Type | Serpentine Belt |
| Thickness | 4.29 mm (0.17 in) |
| Belt Length | 1753 mm (69.02 in) |
| Belt Width | 28 mm (1.10 in) |
| Weight | 0.2 kg (0.43 lb) |
| Number of Ribs | 8 |
| Width | 27.94 mm (1.1 in) |
Compatible Equipment
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
