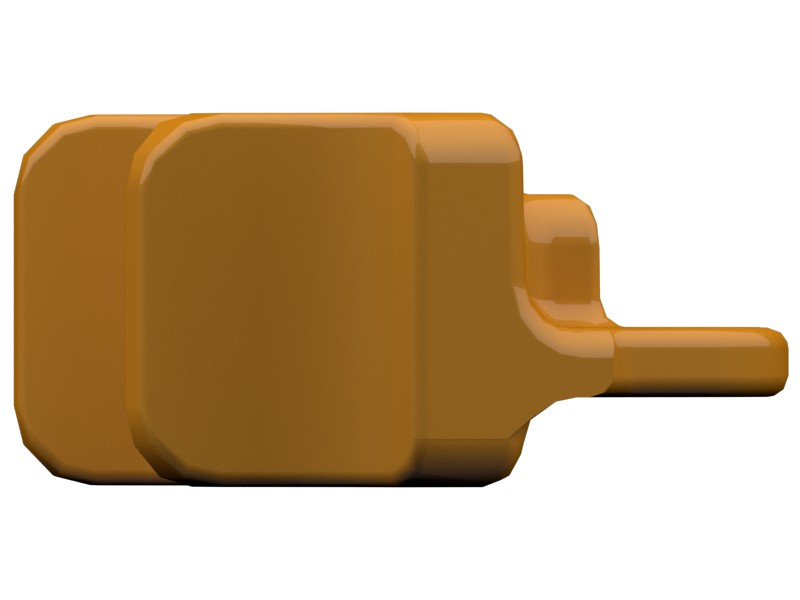

363-3570 Track Section
Cat® sprocket segments are part of the track system, producing motion in track-type machines through tooth engagement with the track links.
Description
Sprockets transmit engine power to the link group and engage it to produce motion.
Specifications
| Track Pitch | 190 mm |
|---|---|
| Number of Sprocket Teeth | 4 |
| Bolt Size | M16 mm (0.6299 in) |
| Number of Sprocket Segments | 3 |
| Number of Sprocket Bolts | 4 |
| Number of Bolts | 4 |
| Sprocket Mounting Type | Offset |
| Bolt Circle Radius | 305.63 mm (12.033 in) |
| Groove Angle | 56 degrees |
| Bushing Radius | 32.15 mm (1.266 in) |
| Inside Radius | 285.5 mm (11.24 in) |
| Packing Offset Radius | 410.44 mm (16.159 in) |
| Number of Teeth | 4 |
| Material | Alloy Steel |
| Pitch | 190 mm (7.48 in) |
| End Bit Radius | 417 mm (16.417 in) |
| Pitch Radius | 411.94 mm (16.218 in) |
| Tooth Width | 70 mm (2.756 in) |
| Backlash | 8.5 mm (0.335 in) |
| Pressure Reducing | No |
| Bolt Thread Size | M16 |
| Material Type | Tough Steel |
| Noise Reduction Lugs | No |
| Undercarriage System | HD |
| UC System – Designed For | Heavy Duty |
Compatible Equipment
- Cold Planers: PL61
- Dozers: D6K2, D4
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
