Description

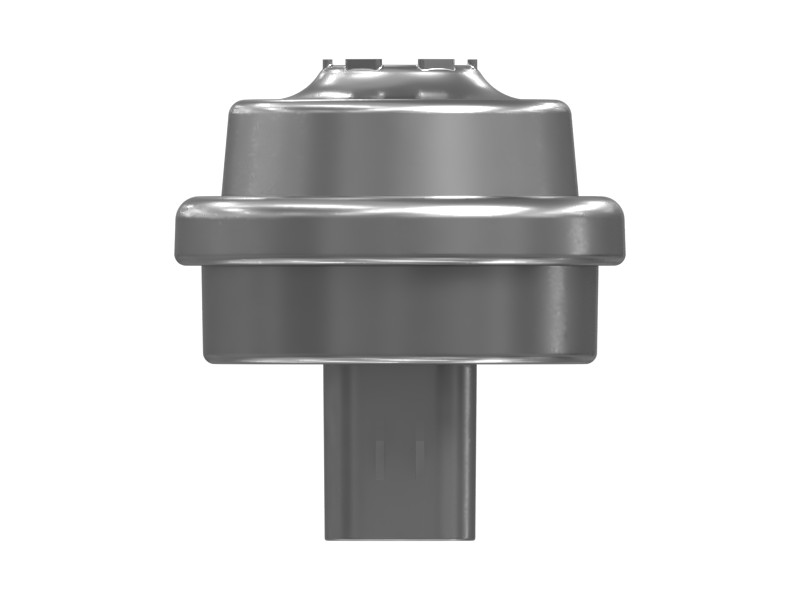

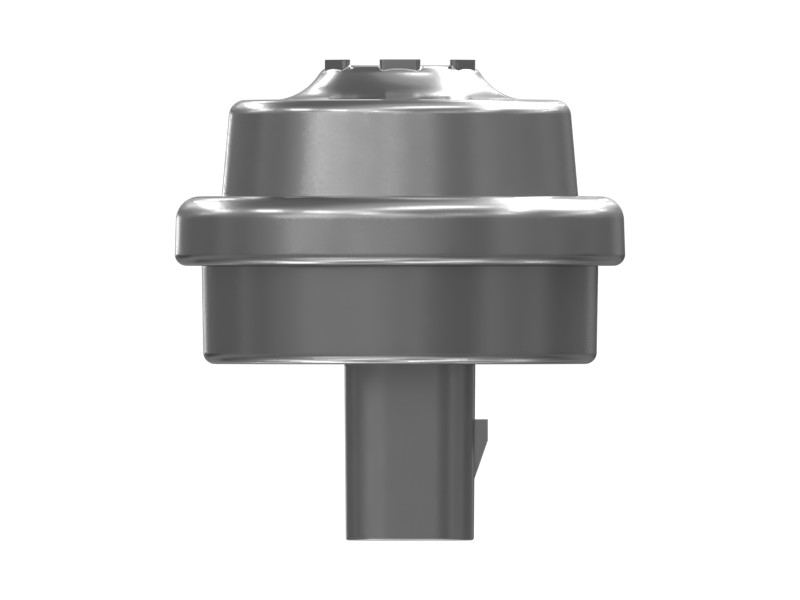

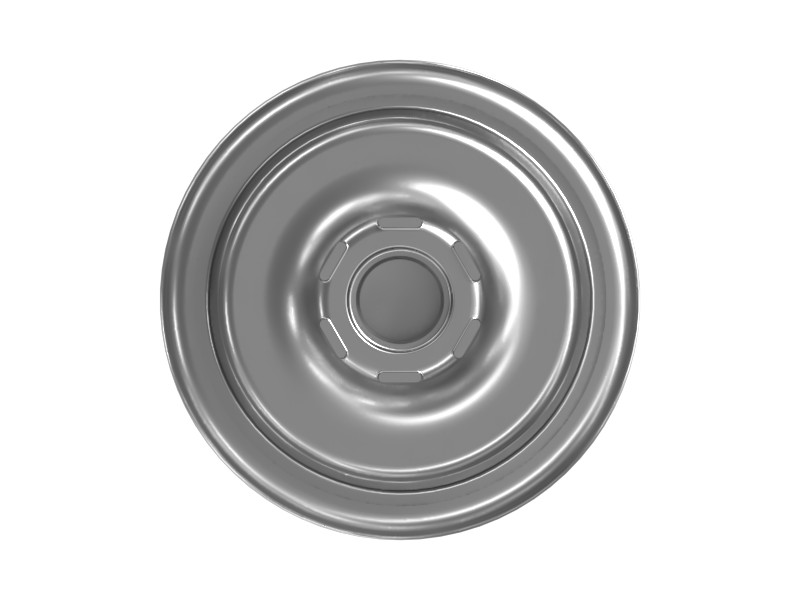

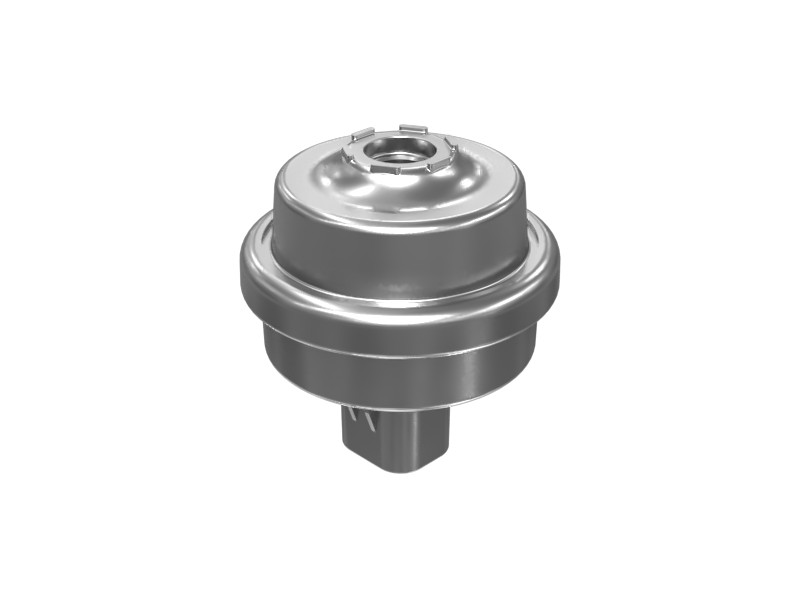

Cat Air Filter Service Indicators determine when a filter needs to be replaced for optimal filter performance.
Features
- Nylon indicator
- Vacuum Port: 1/8-27 NPT
- Connector type: 2-position AMPSEAL 16
- Trip Point: 6.5 kPa (26 in H20)
- Normally closed switch
- Designed to work with other Cat parts to ensure the equipment reaches its full potential.
Applications
Service indicators are used to identify when the engine air filter should be replaced. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts perform in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion and dusty conditions.
Specifications
| Type | Normally Closed Switch |
|---|---|
| Height | 52 mm (2.06 in) |
| Outside Diameter | 50 mm (1.97 in) |
| Trigger Point | 6.5 |
| Thread | Pipe 1/8-27 NPT |
| Description | Non-Locking |
Compatible Equipment
- Compactors: CS74B, CP56B, CP54B, CS78B, CW-16, CS68B, CS54B, CS56B, CB16, CS79B, CB-66B, CB-64B, CS12, CS7, CS11, CB10, CB15, CB13, CS-54B, CS64B
