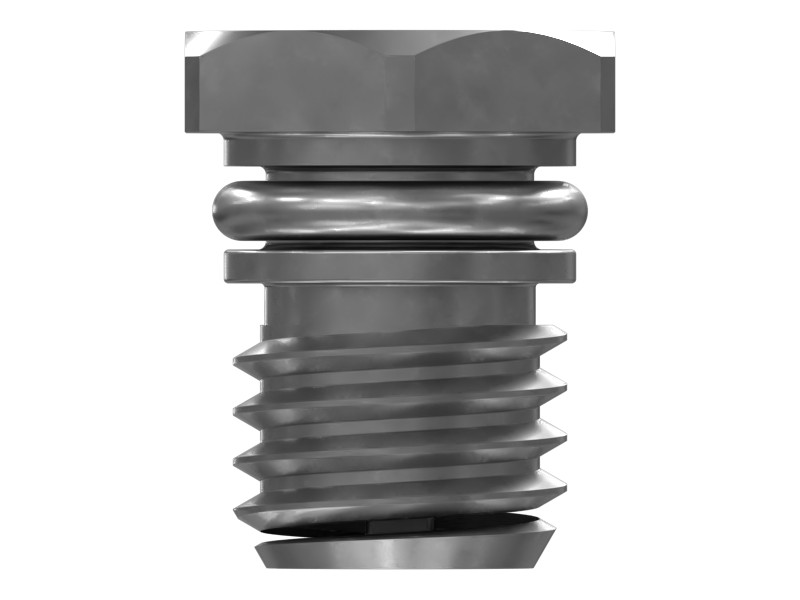

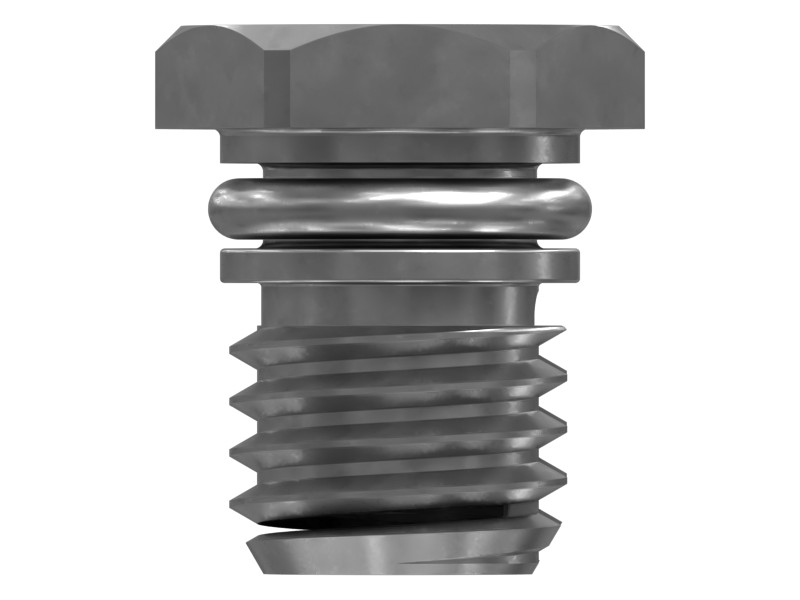

362-9689 M10X1.5 Thread Drain Screw

Description

Metric

Cat machine screws form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.

Features

• Material: Steel
• Thread Size: M10
• Nickel Plated
• Hex Size: 12.8 mm (0.504 in)
• Hex square head

Applications

The screw is used to release air and pressure from the fuel filter assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Compatible Equipment

• Generator Sets: 3512B, C4.4, C7.1, C4.4DE88E0, C3.3DE33E0, C3.3DE50E0
• Track Loaders: 953, 963, 982, 972, 826K, 953K, 963K
• Cold Planers: PM620, PL61, PM622, PL87, PL83
• Compactors: CS11, CS12, CP12 GC, CS7, CB-64B, 834K, 816, 815, 814, CP56B, CS68B, CS12 GC, CS56B, CS78B, CS74B, CP11 GC, 825K, 824K, CS54B, CP54B, CW-16, CB-44B, CS79B, CB-66B, CB16, CW-34, CB10, CB15, CB13, CS-54B, CS64B, CS-533E
• Engines: C13, C32, C6.6, C18
• Excavators: 320D, 320D2, 336D2, 329D2 L, 326D2 L, 326D2, 329D2, 313, 316 GC, 374, 313 GC, 350, 352, 320D3 GC, 320D3, 340, 355, 313F LGC, 345 GC, 395, 320D GC, 323D L, 313 GX, 312 GC, 336, 349, 320D L, 120 GC, 312 GX, 316 GX, 3101, XQP200, 350MHPU, 329E, 320, 313F L, 336D2 L, 320E, 323D2 L, 313D2, 330D2, 318D2, 312D, 335F LCR, 312E L, 312D L, 320 GC, 336D2 GC, 315D L, 323, 329E L, 313D2 GC, 318D2 L, 320D2 GC, 312E, 330D2 L, 323D2, 315F LCR, 313D2-GC, 336D2 XE, 312F, 428F, 340D2 L, 416F2, 434F2
• Asphalt Pavers: AP655F, AP655F L
• Motor Graders: 18, 140 GC, 120, 316F, 16M3, 16, 14, 349 GC
• Wheel Excavators: M320, M320D2, M315D2, M317D2, M315
• Dozers: D8, D8T, D6N, D3K2 LGP, D6K2, D5K2 XL, D4, D1, D7
• Wheel Loaders: 926M, RM400, 980L, 980, 966, M314, 834, 836, 988K, 966F, 924K, 938K, 950L, 972L, 962L, 966L, 938M, 950 GC
• Off-Highway Trucks: 735, 730, 725
