Description

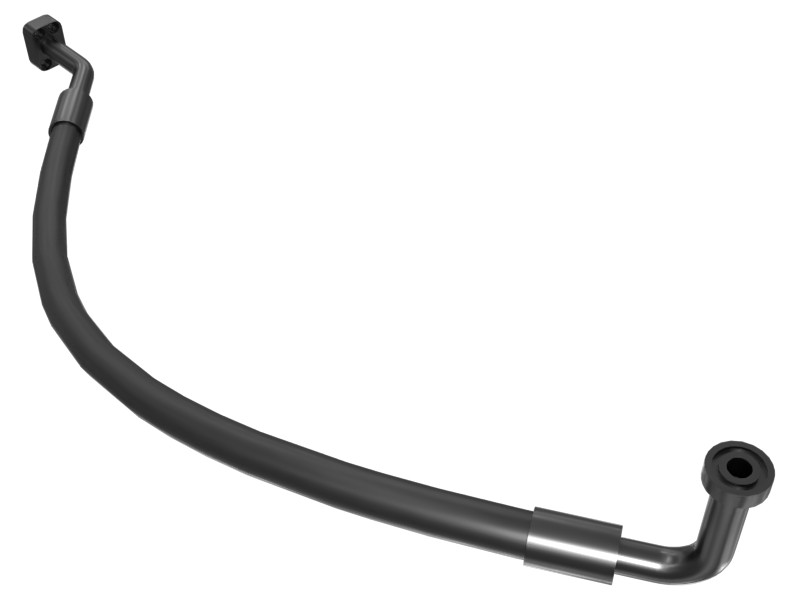

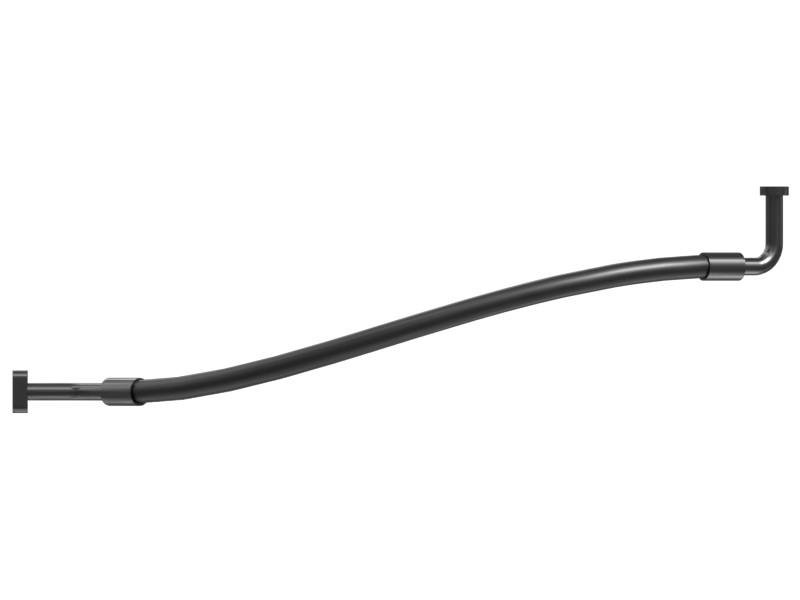

XT ES (Enhanced Spiral) high-pressure hose carries petroleum-based hydraulic oil at high pressure from pumps and motors to machine components.
Features
Made with a fabric-reinforced synthetic rubber tube and four to six layers of spiral-wrapped high-tensile steel wire reinforcement (separated by layers of synthetic rubber). The synthetic rubber outer layer is oil-, weather- and abrasion-resistant. XT ES hoses have been impulse tested to 1,000,000 cycles, twice the SAE requirement. In addition, Cat® XT ES hoses are designed to operate at half the SAE bend radius. This means they bend more easily in tight spaces and also significantly reduce hose length requirements. These features simplify installation and deliver long life and outstanding reliability.
Recommended Applications:
High-pressure service applications.
Specifications
| Hose Type | 4 or 6 Wire Spiral |
|---|---|
| Hose Inside Diameter | 25.4 mm (1 in) |
| Material | High Pressure Hose |
| Overall Length | 1400 mm (55.118 in) |
| Weight | 4.748 kg |
Compatible Equipment
- Excavators: 336E L, 336E, 336E LN
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
