Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

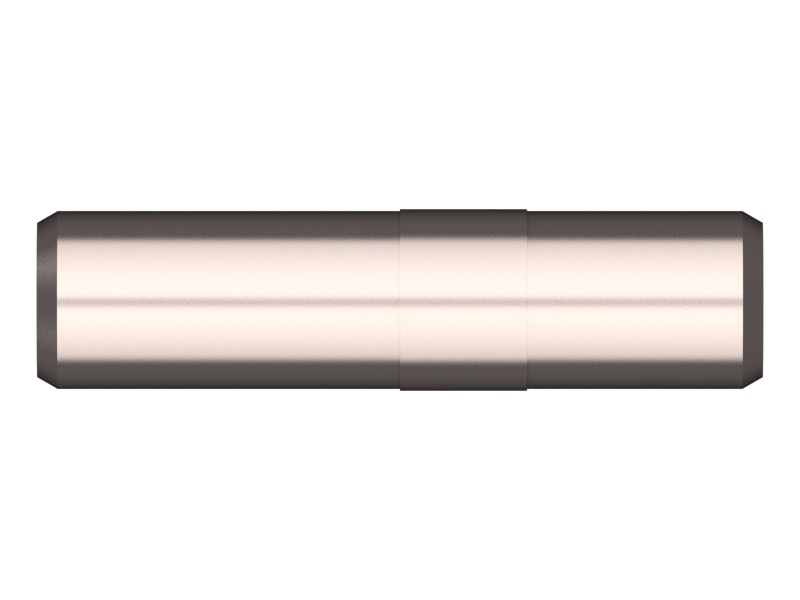

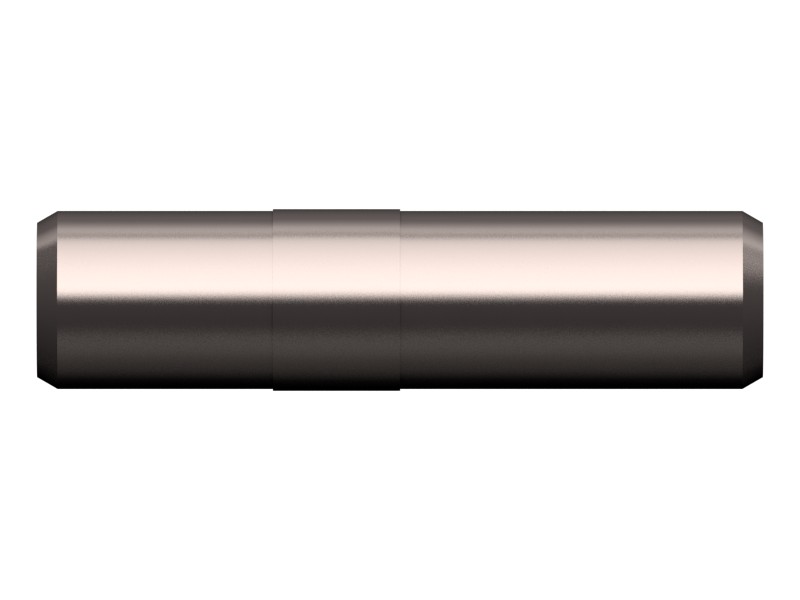

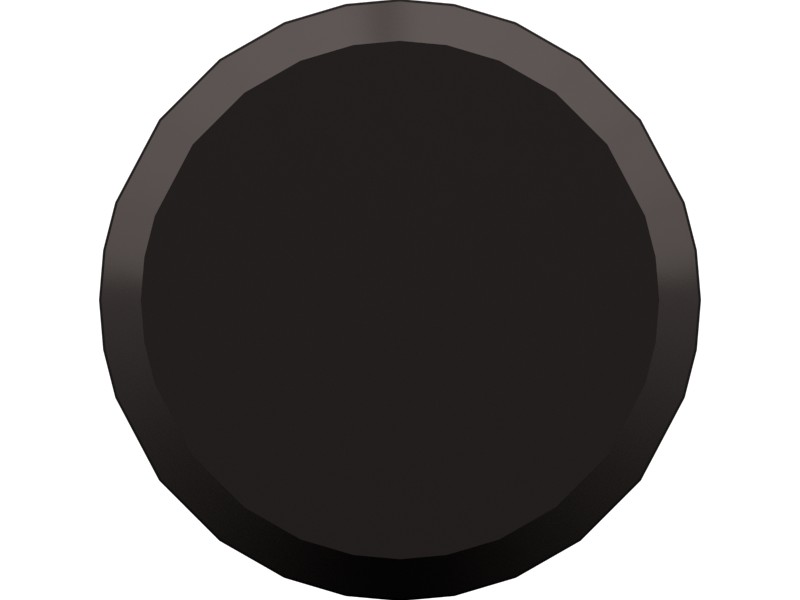

A stud, also known as a threaded rod, is typically fully threaded or threaded at both ends.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat studs, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat studs form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Length | 40 mm |
|---|---|
| Stud Thread Size | M10 |
| Material Description | High-Temperature Steel (Up to 500°C) |
| Hole Thread Pitch | 1.50 |
| Locking Feature | Steel Stud |
| Thread Size | M10 mm |
| Stud Thread Pitch | 1.50 |
| Remarks | Thread Length (mm) 20, Stud End Thread Length: 15 |
| Stud Type | Double-End Threaded Stud (Screw Rod) |
| Overall Length | 40 mm |
| Stud Thread Size | M10 X 1.5 mm |
Compatible Equipment
- Motor Graders: 140 GC
- Generator Sets: C7.1, C4.4, C4.4DE88E0, C3.3DE50E0, C7.1DE200E
- Cold Planers: TH360B
- Wheel Excavators: M315GC, M315D2, M315D, IT14G, M313D, M317D2, M315
- Compactors: CB-44B, CS11, CS12 GC, CP11 GC, CW-16, CS54B, CS12, CP54B, CW-34, CB-534D, CB-564D, CB16, CS-54, CB-66B, CB-64B, CP12 GC, CS7, CB13, CB15, CB10, CS64B, CS-54B, CS-533E
- Dozers: D3K2 LGP, D5K LGP, D5K2 XL, D5K XL
- Excavators: 316 GC, 313D2, 320 GX, 320 GC, 432, 320, 320D2 GC, 320D2 L, 318D2 L, 313D2 GC, 312D2, 312D2 L, 318D2, 312D2 GC, 315C, 313D2-GC, 416E, 416F2, 428F, 434F2, 320D2
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 140 GC, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 315C, 316 GC, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320D2, 320D2 GC, 320D2 L, 416E, 416F2, 428F, 432, 434F2, C3.3DE50E0, C4.4, C4.4DE88E0, C7.1, C7.1DE200E, CB-44B, CB-534D, CB-564D, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP11 GC, CP12 GC, CP54B, CS-533E, CS-54, CS-54B, CS11, CS12, CS12 GC, CS54B, CS64B, CS7, CW-16, CW-34, D3K2 LGP, D5K LGP, D5K XL, D5K2 XL, IT14G, M313D, M315, M315D, M315D2, M315GC, M317D2, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
