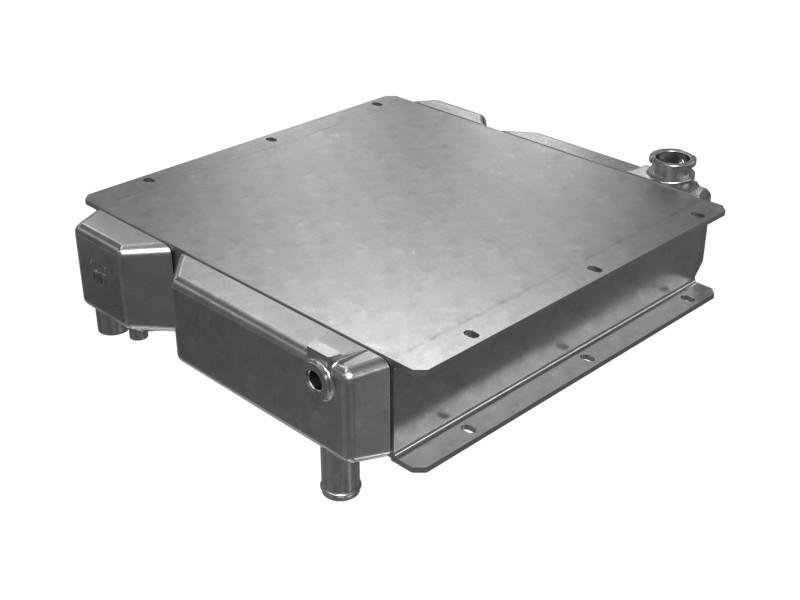

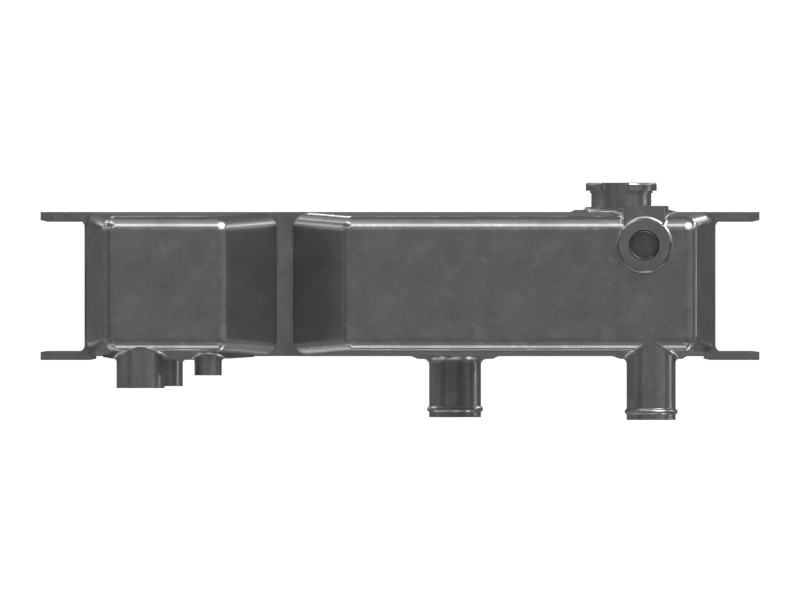

361-4663 Radiator and Hydraulic Oil Cooler
Cat® radiator and hydraulic oil cooler is a combined component that cools engine coolant and hydraulic oil
Description
Cat® cooler groups maintain fluid temperatures in Cat machines. The fin system includes 12 rows of oil cooler tubes and 17 rows of radiator tubes.
Applications
Cat oil cooler groups maintain oil temperature. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 568.7 mm (22.4 in) |
|---|---|
| Overall Width | 189.9 mm (7.5 in) |
| Overall Height | 632.9 mm (24.9 in) |
| Material | Aluminum |
| Weight | 21.7 kg (47.8 lb) |
Compatible Equipment
- Skid Steer Loaders: 226B, 226B3
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
