Description

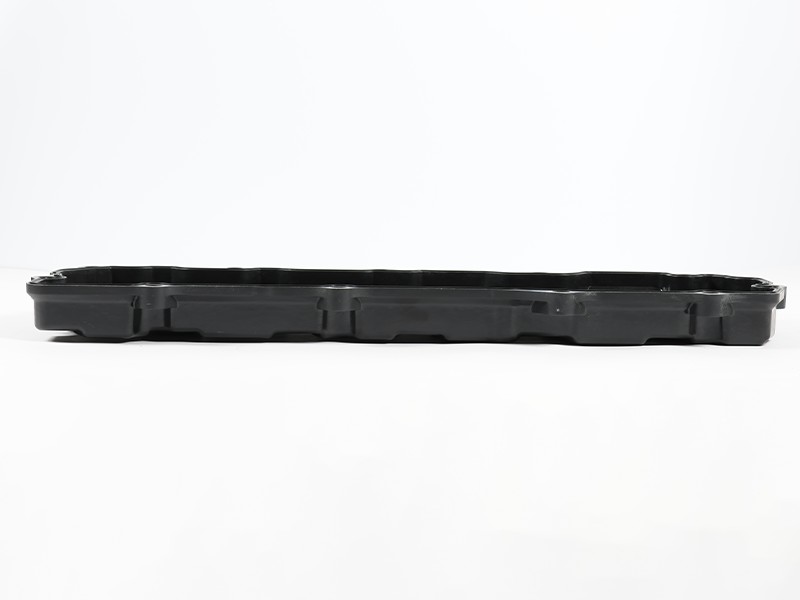

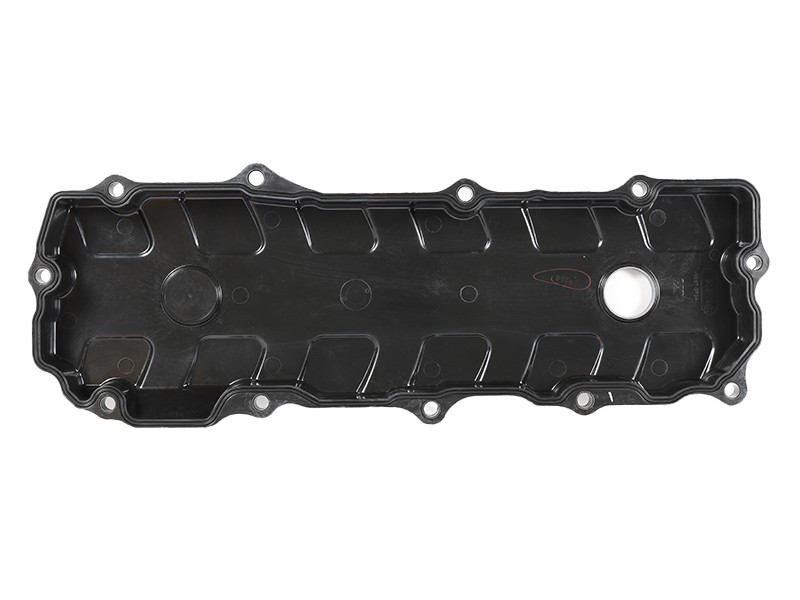

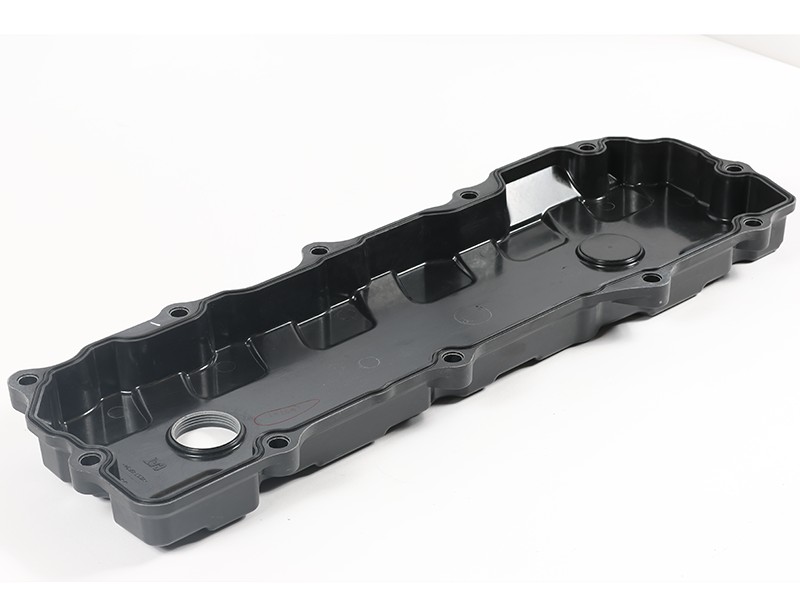

Cat valve mechanism cover groups are designed and tested to deliver the equipment quality you expect. Cat valve mechanism cover groups protect the engine valve mechanism and provide a seal to prevent leaks.
Features
- Group includes the valve mechanism cover and seals
- OEM direct replacement part
Applications
The Cat valve mechanism cover group is application specific. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 76.2 mm (3 in) |
|---|---|
| Width | 312.42 mm |
| Length | 871.22 mm (34.3 in) |
| Overall Length | 851 mm (33.5 in) |
| Overall Width | 282 mm (11.1 in) |
| Overall Height | 66 mm (2.6 in) |
Compatible Equipment
- Generator Sets: C9
- Dozers: D6R III, D6R, D6T, D7R, D6R LGP, D6R XL, D6R II
- Excavators: 330D L, 336D2 L, 336D L, 330D, 336D2 GC, 336D2 XE, 637G, 637E, 340D2 L, 340D L, 336D2, 336D
