Description

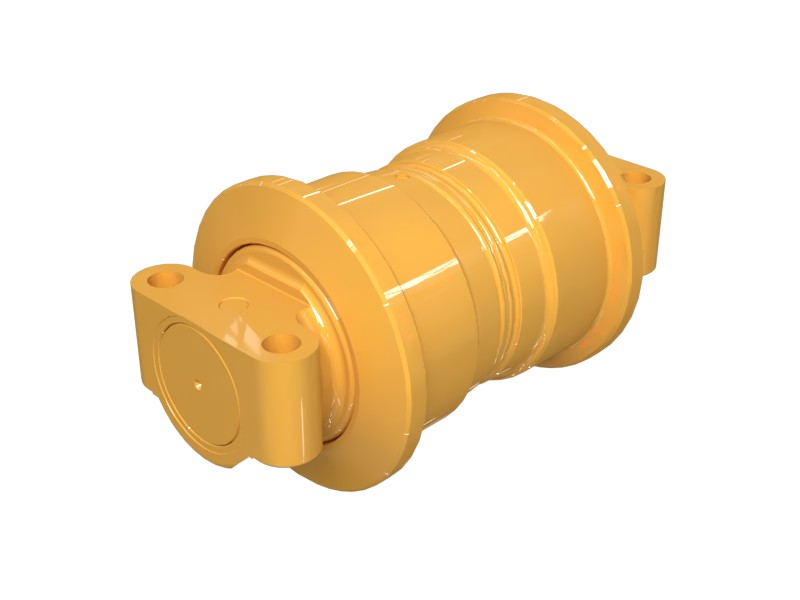

Track rollers support and guide the machine on the track.
Attributes
SystemOne™ tracks are designed to work at higher speeds, with heavier loads, and under conditions of balanced component wear rates. This delivers the highest performance at the lowest possible operating cost.
Specifications
| Link Outside Spacing | 149.1 mm (5.87 in) |
|---|---|
| Shaft Outside Diameter | 92 mm (3.622 in) |
| Outer Flange Diameter | 209.5 mm (8.248 in) |
| Mounting Cap Bolt Hole Diameter | 18 mm (0.709 in) |
| Compatible Carrier Roller | No |
| Mounting Bolt Axial Spacing | 296.3 mm (11.665 in) |
| Mounting Cap Bolt Thread Size | M16 |
| Mounting Width | 226.4 mm (8.913 in) |
| Inside Spacing | 71.6 mm (2.819 in) |
| Shaft Length | 332.9 mm (13.106 in) |
| Bolt Size | 3/4 mm (3/4 in) |
| Flange Diameter | 210 mm (8.25 in) |
| Mounting Bolt Lateral Spacing | 88.9 mm (3.5 in) |
| Application | Standard Application |
| Undercarriage System | ABRASION |
| Flange Type | Single Flange |
| Tread Diameter | 176 mm (6.91 in) |
Compatible Equipment
- Dozers: D6K2, D5K2 XL, D4, D5K LGP, D5K XL, D5G
