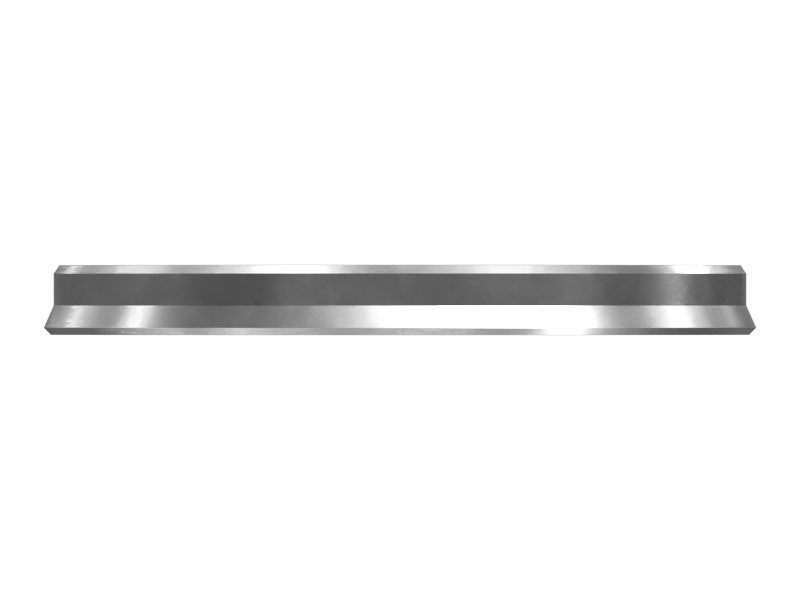

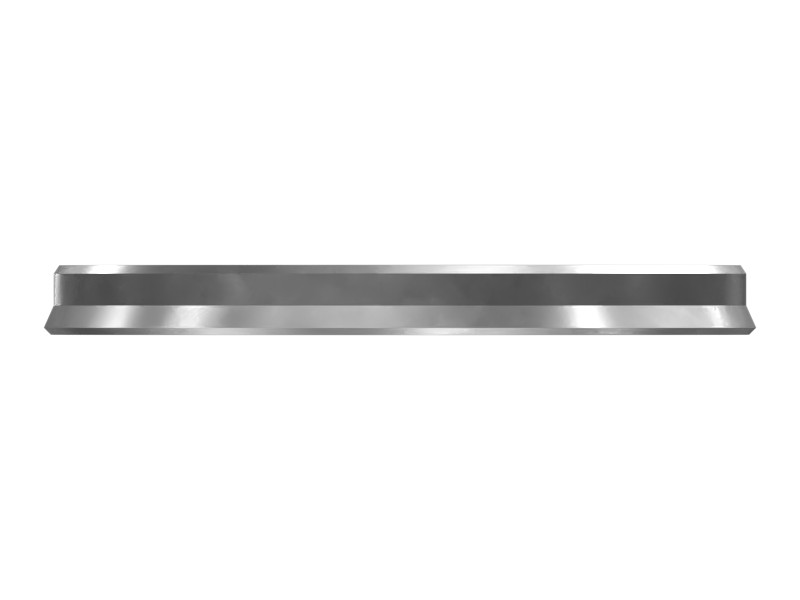

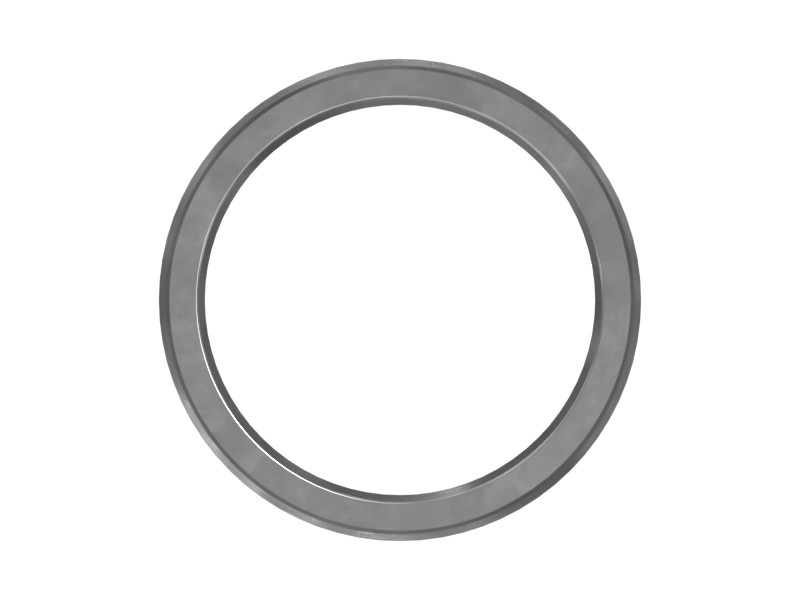

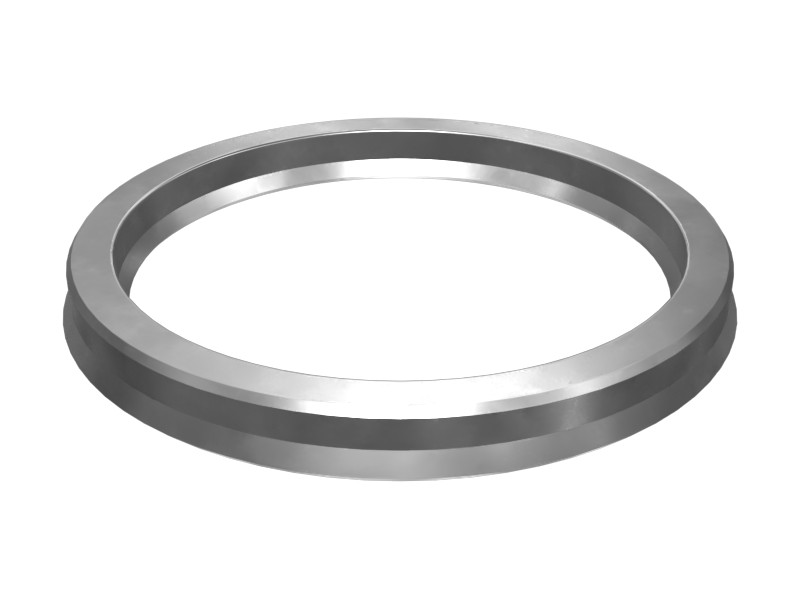

355-5820 85 mm Shaft Diameter U-Cup Seal
Cat® 85 mm Shaft Diameter U-Cup Seal for Bucket Cylinders
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The U-cup seal, also known as a U-seal, is designed to provide an effective seal for hydraulic cylinders. It is designed to fit in a groove in the cylinder bore or piston. When the cylinder is pressurized, the seal is forced against the cylinder wall or piston, forming a tight, effective seal. It prevents hydraulic pressure from leaking out of the cylinder, ensuring smooth, efficient operation.
Attributes
- Designed to withstand high pressure.
- Designed to withstand high and low temperatures.
- Withstands the abrasiveness of hydraulic oil and resists long-term wear.
Applications
The U-cup seal is used to maintain system integrity and prevent loss of hydraulic pressure. Widely used on Caterpillar 315D, 316E, 318B, 318C, 318D, 318E, 319C, 319D, 320B, 320C, 320D, 320E, 320F, 321B, 321C, 321D, 322B, 322C, 323D, 323E, 323F, 324D, 325B, 325C, 325D, 325F, 329E, 330B, 330C, 330D, 336D, 340, 345B, 345C, and M325C Excavators; 973, 973D, and 973K Track Loaders; D5N, D5R, and D6N Track-Type Tractors; and M325D and MH3027 Material Handlers.
Specifications
| Inside Diameter | 83.4 mm (3.28 in) |
|---|---|
| Thickness | 6.9 mm (0.27 in) |
| Weight | 0.02 kg (0.04 lb) |
| Width | 10 mm (0.39 in) |
Compatible Equipment
- Track Loaders: 973K
- Excavators: 330D L, 323D L, 315D L, 325D L, 336D L, 320E, 320D L, 345C L, M325D L MH, 320D FM, 324D L, 318D2 L, 320D2, 320D
