353-6188 3.2 mm Thick Valve Guard
Cat® Valve Guard for Track-Type Tractor Hydraulic Track Adjuster, L X W X H: 36.2 X 78 X 24.2 mm
Description

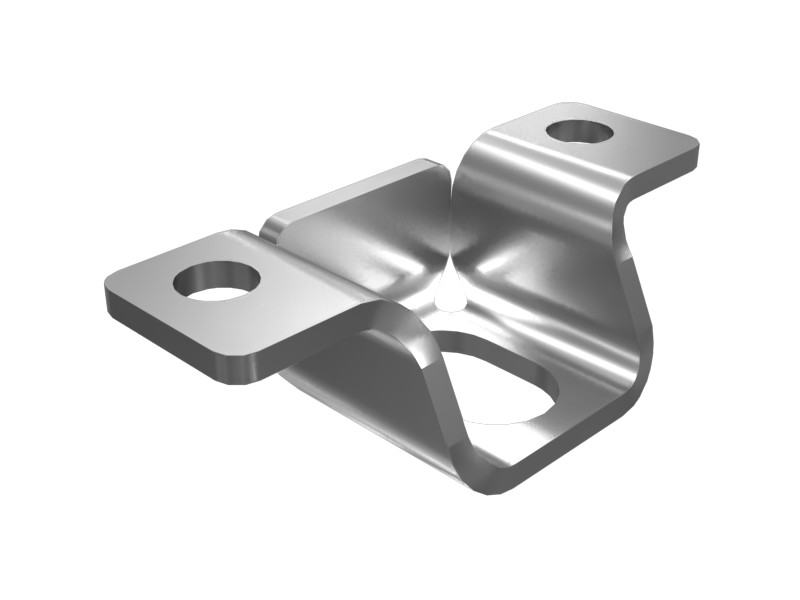

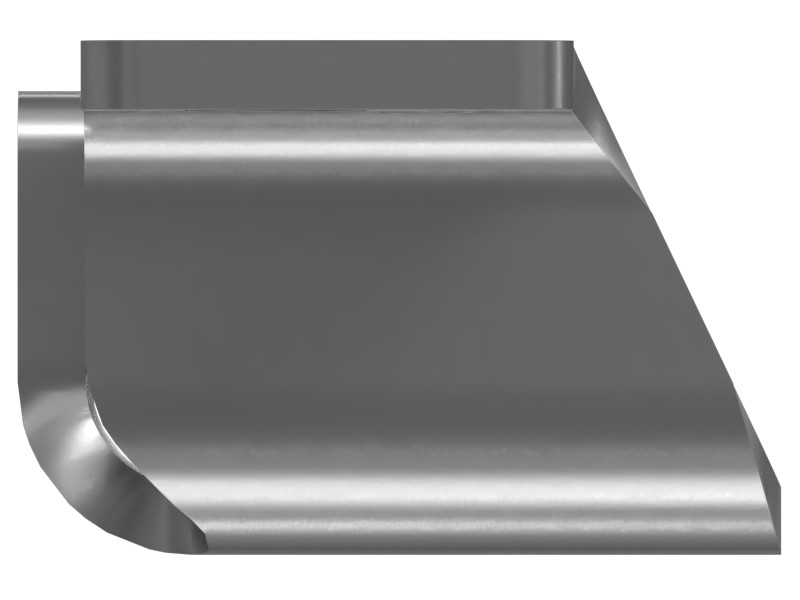

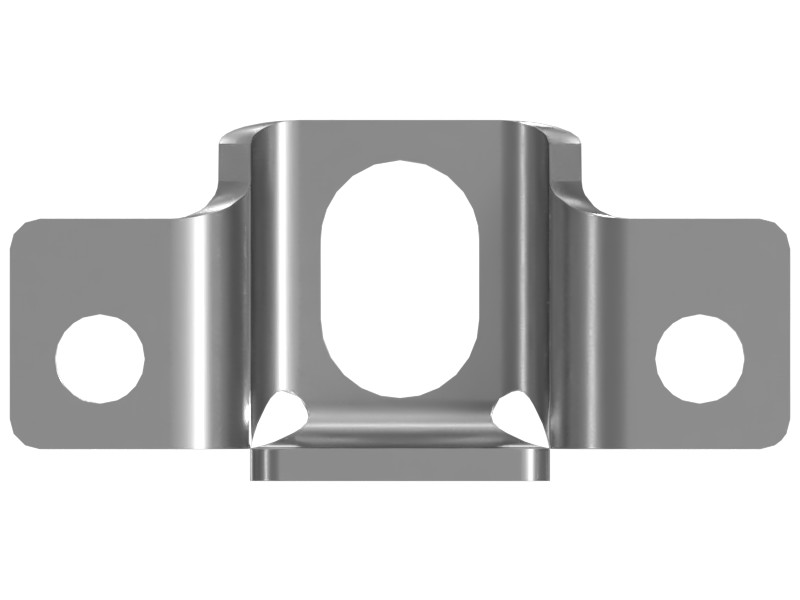

Part number 353-6188 is a valve guard used to protect the grease valve in the hydraulic track adjuster yoke on certain track-type tractor models. Cat guards are designed and tested to deliver the quality you expect.
Features
- Zinc-plated steel
- Length: 36.2 mm (1.43 in)
- Width: 78 mm (3.07 in)
- Height: 24.2 mm (0.95 in)
- Thickness: 3.2 mm (0.13 in)
- Hole Size: 9 mm (0.35 in), 2 Places
Applications
Used for the hydraulic track adjustment system on certain track-type tractor models. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Zinc Plated |
|---|---|
| Height | 24.2 mm (0.95 in) |
| Hole Size | 9 (2X) mm (0.35 (2X) in) |
| Length | 36.2 mm (1.43 in) |
| Material Thickness | 3.2 mm (0.13 in) |
| Material | Carbon Steel |
| Thickness | 3.2 mm (0.13 in) |
| Weight | 0.08 kg (0.17 lb) |
| Width | 78 mm (3.07 in) |
Compatible Equipment
- Dozers: D3K2 LGP, D1
