Description

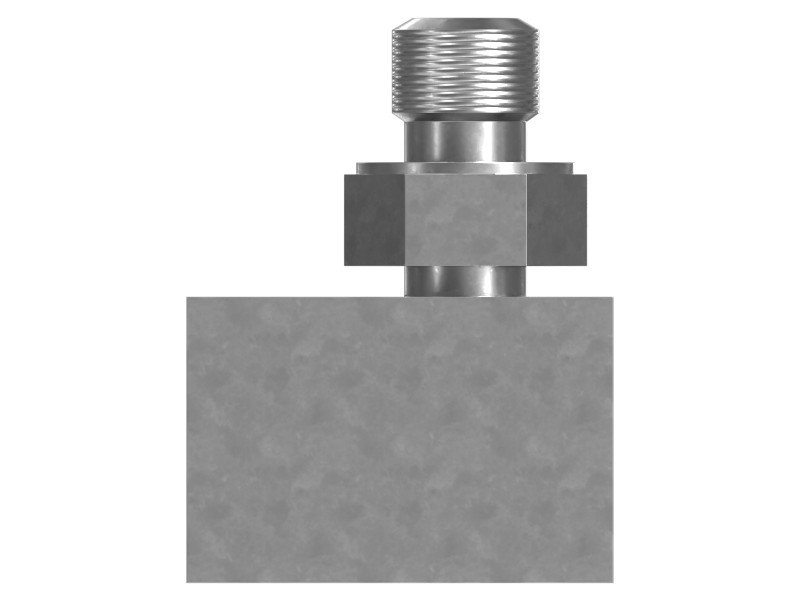

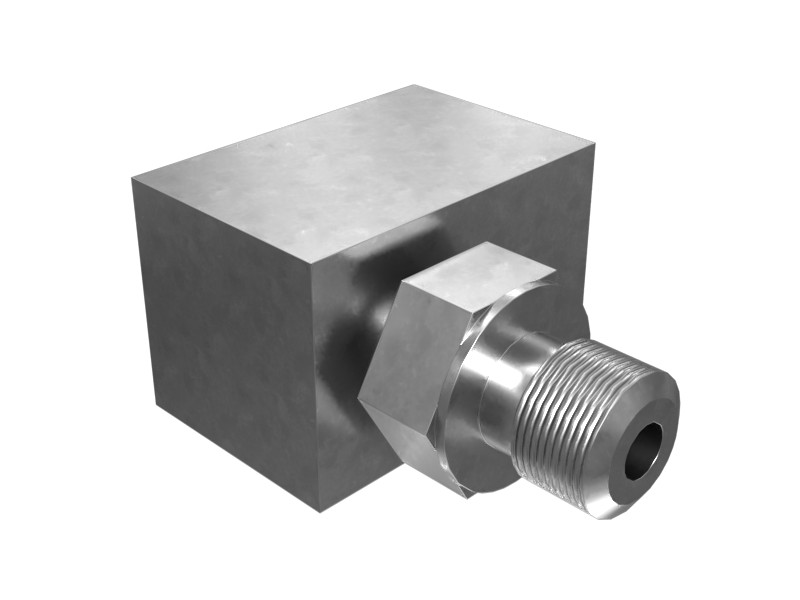

As an adapter, the elbow adapter for the crankcase pressure sensor connects the sensor to the crankcase, allowing accurate measurement and monitoring of the pressure level inside the engine crankcase. The adapter ensures the crankcase pressure sensor is correctly positioned on the crankcase. It places the sensor in the most suitable position, maximizing the accuracy of pressure readings and ensuring reliable engine performance monitoring.
Features
- Simplifies the installation process for the crankcase pressure sensor.
- Ensures correct sensor position for accurate pressure readings.
- Creates a secure, leak-proof connection between the sensor and the crankcase.
- Its quality and performance meet industry standards and technical specifications.
Applications
The elbow adapter for the crankcase pressure sensor is used to connect the crankcase pressure sensor to the engine crankcase and position it, allowing accurate measurement and monitoring of pressure levels.
Specifications
| Material | Carbon Steel |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Type | 90° Elbow |
| Coolant and DEF Compatible Seals | 219-0669 (M12 X 1.5), 6V-9027 (7/16-20) |
| Actual Diameter | 3.99 in |
| Oil and Fuel Compatible Seals | 214-7566 (7/16-20), 228-7100 (M12 X 1.5) |
| Connector Type | -4 STOR to Metric STOR |
| Material Description | Plated Steel |
| Transmission and Hydraulic Oil Compatible Seals | 3J-7354 (7/16-20), 6V-9028 (M12 X 1.5) |
| Hex Size | 15.88 mm |
| Length | 44 mm |
| Mounting Type | Four Holes (PCD 41 mm) |
| Thread | 7/16 – 20, M12X1.5 |
| Weight | 0.09 kg (0.71 lb) |
Compatible Equipment
- Generator Sets: 3512B, 3512E, 3516C, C7.1, G3516, G3516C
- Track Loaders: 973K, 994K, 995
- Cold Planers: PL72, PL83, PL87
- Engines: C32, C18
- Dozers: D8, D6T, D8R, D7, D8T
- Excavators: 374, 355, 352, 3512C, 3516B, 3516E, 395, 350, 318D2 L, 318D2, 349, 6060, 6040, 350MHPU, 3508B
- Wheel Loaders: R2900 XE
- Off-Highway Trucks: 785D, 789D, 793D, 785, 789, 793
- Asphalt Pavers: AD45
Additional information
| Machine Model | 318D2, 318D2 L, 349, 350, 3508B, 350MHPU, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 352, 355, 374, 395, 6040, 6060, 785, 785D, 789, 789D, 793, 793D, 973K, 994K, 995, AD45, C18, C32, C7.1, D6T, D7, D8, D8R, D8T, G3516, G3516C, PL72, PL83, PL87, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
