Description

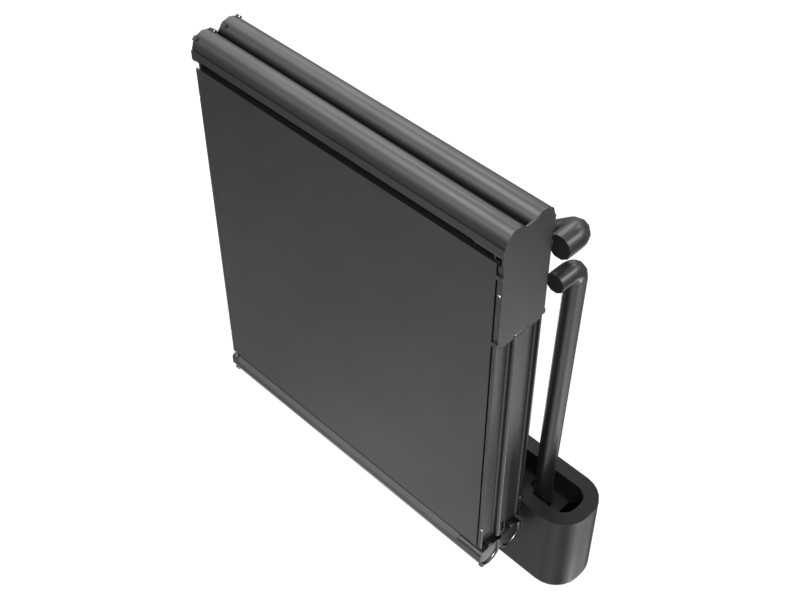

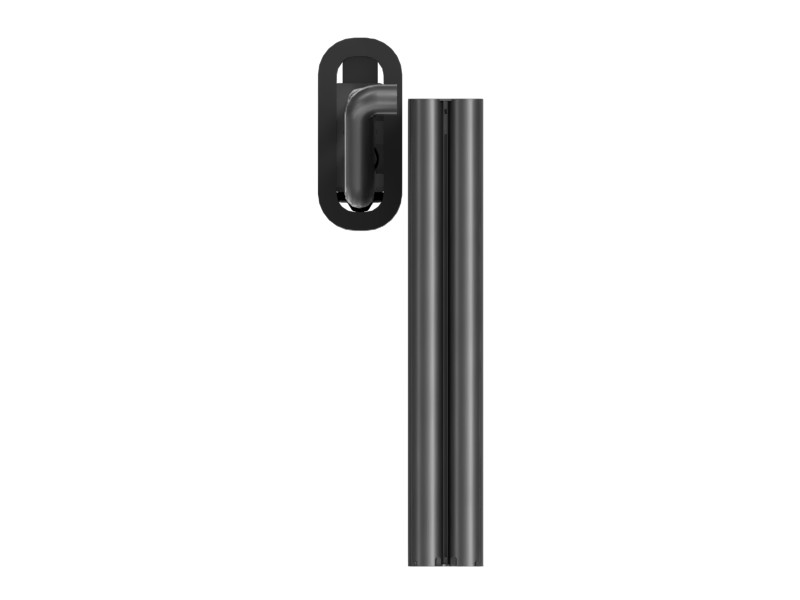

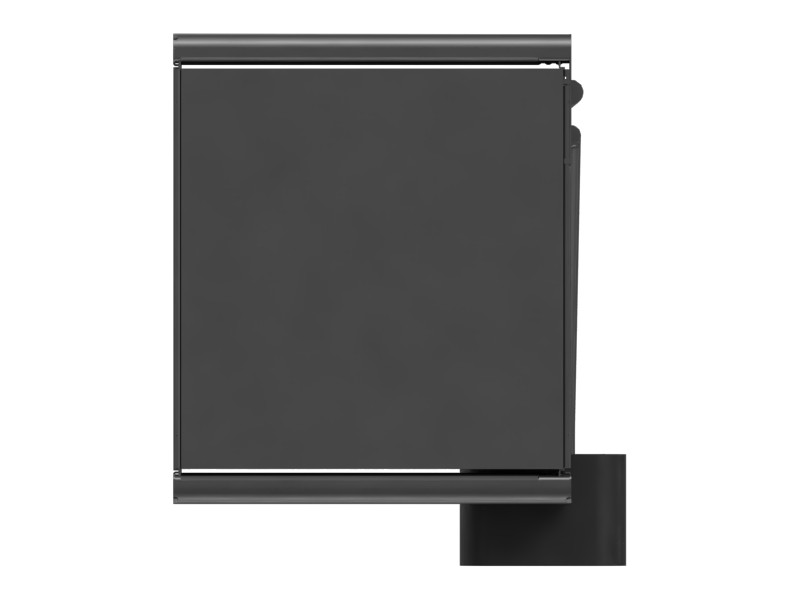

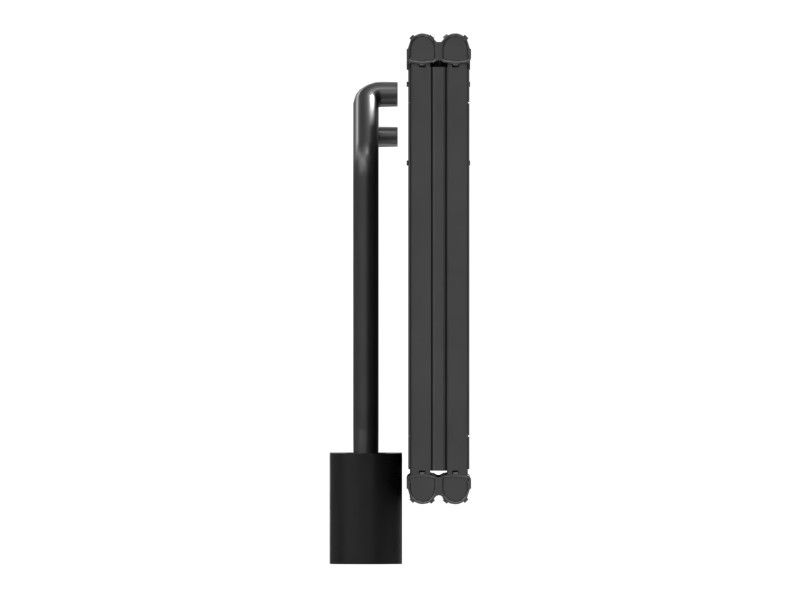

The HVAC system provides heating, cooling, and filtering of fresh and/or recirculated air in the operator compartment of Cat machines, providing a comfortable temperature for the operator. The Cat evaporator group provides a large heat exchange surface area to evaporate the fluid inside. The evaporator should be replaced when the compressor fails significantly. Flushing cannot completely remove debris from the plates.
Features
- Aluminum evaporator core group
- Highly corrosion resistant
- Expansion valve relieves refrigerant pressure
- Insulator prevents heat transfer during expansion
- Leak Tested
- O-ring seal
- Large mounting bracket reduces movement and vibration
- Metric mounting hardware
Applications
The evaporator serves as the heat exchanger in the HVAC system, cooling the air circulated by the blower in the operator compartment of Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Height | 100 mm (3.9 in) |
|---|---|
| Thread Size | M5x0.8 mm |
| Material Description | Aluminum |
| Overall Length | 334 mm (13.1 in) |
| Overall Width | 320 mm (12.6 in) |
Compatible Equipment
- Generator Sets: 3512B
- Wheel Excavators: M320, M315D2, M322D, M320D2, M317D2, M315D, M313D
- Mini Excavators: 307D
- Excavators: 330D L, 320D L, M325D L MH, 385C, 336D L, 313D, 320D GC, 345C, 325D, 320D RR, 345C L, 320D2 L, 323D L, 385C FS, 325D L, 312D L, 365C, 385C L, 329D L, 345D, 312D, 311D LRR, 323D2 L, 320D2 GC, 390D, 312D2, 313D2, 345D L, 320D FM, 324D, 324D L, 315D L, 336D2 XE, 318D2 L, 320D3, 323D, 312D2 L, 365C L, 330D2, 336D2 L, 330D2 L, 313D2 GC, 312D2 GC, 313D2-GC, 328D LCR, 330D, 326D L, 318D L, 336D2 GC, 340D L, 340D2 L, 349D L, 320D2, 374D L, 320D, 336D, 336D2, 390D L, 329D, 326D2, 326D2 L, 329D2 L, 329D2, 349D2, 349D, 349D2 L
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307D, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 315D L, 318D L, 318D2 L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323D, 323D L, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3512B, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Skid Steer Loaders, Generator Sets |
| Part Source | Genuine OEM |
