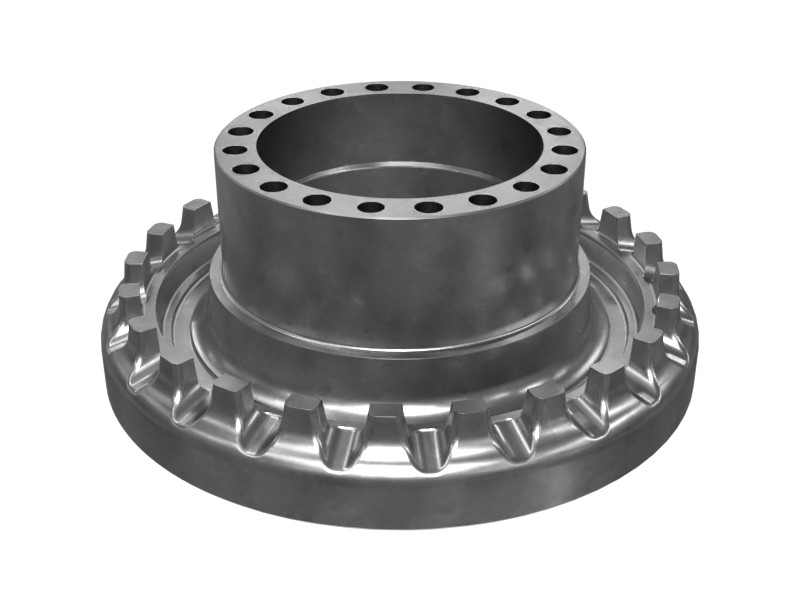

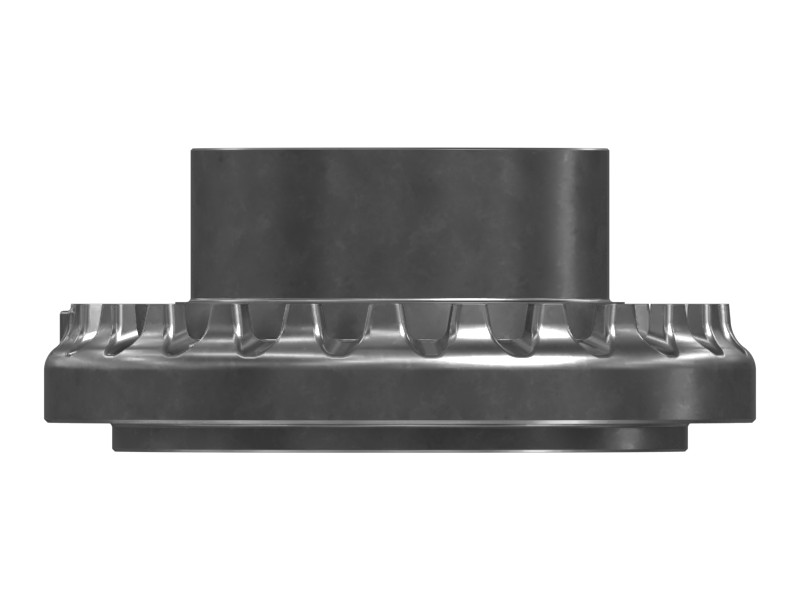

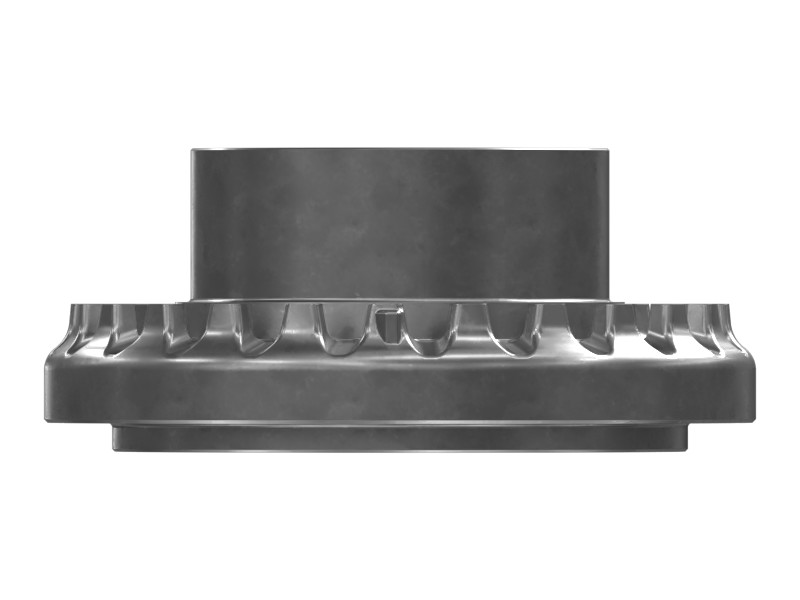

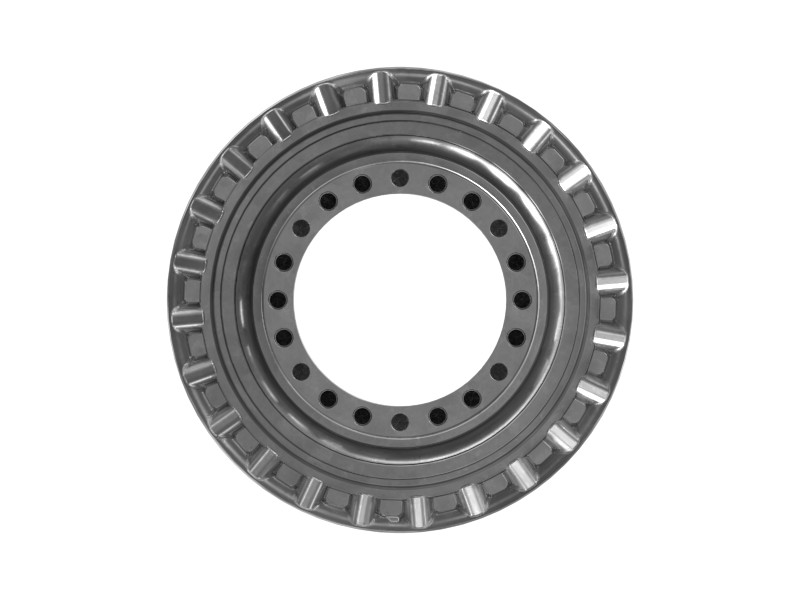

Description
Cat power train components must withstand extremely high torque, high shock loads and frequent directional shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving power train durability and performance over the life of the machine.
Features
- Cast iron motor housing
- Outside Diameter: 408 mm (16.06 in)
- For use with metric fasteners
Applications
Service part for the final drive assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Material Description | Cast Iron |
| Length | 173.5 mm (6.830 in) |
| Outside Diameter | 408 mm (16.062 in) |
| Inside Diameter | 186 mm (7.322 in) |
Compatible Equipment
- Excavators: 323D2 L, 320D L, 323D, 320D2 L, 320E, 323D L, 320D2 GC, 320D FM, 320D GC, 320D RR, 320D, 320D2
