Description

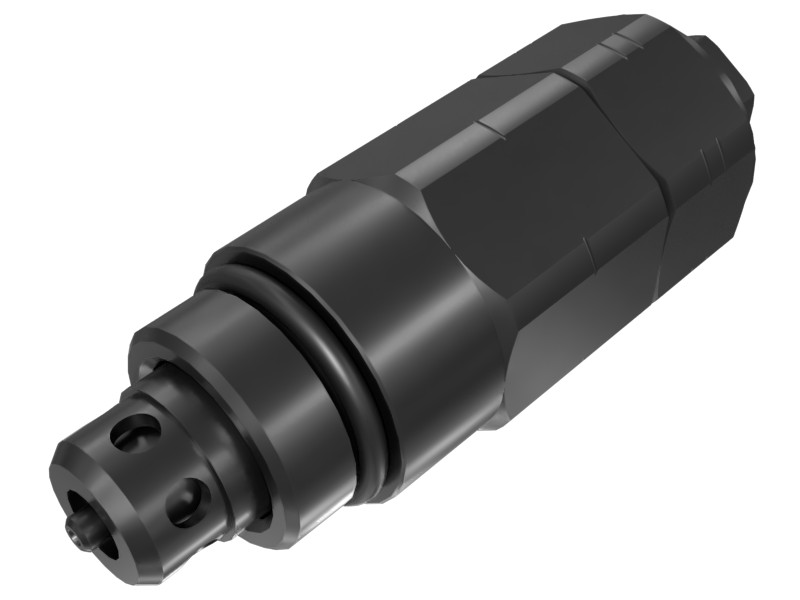

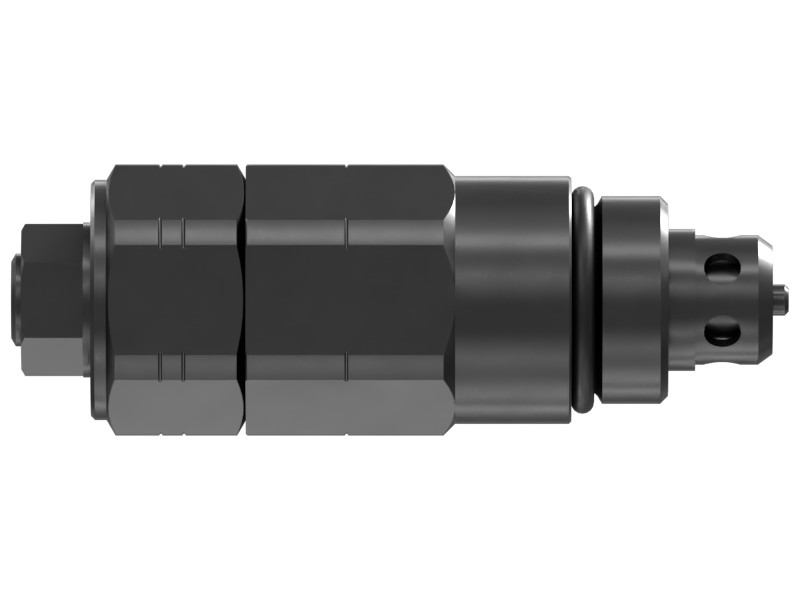

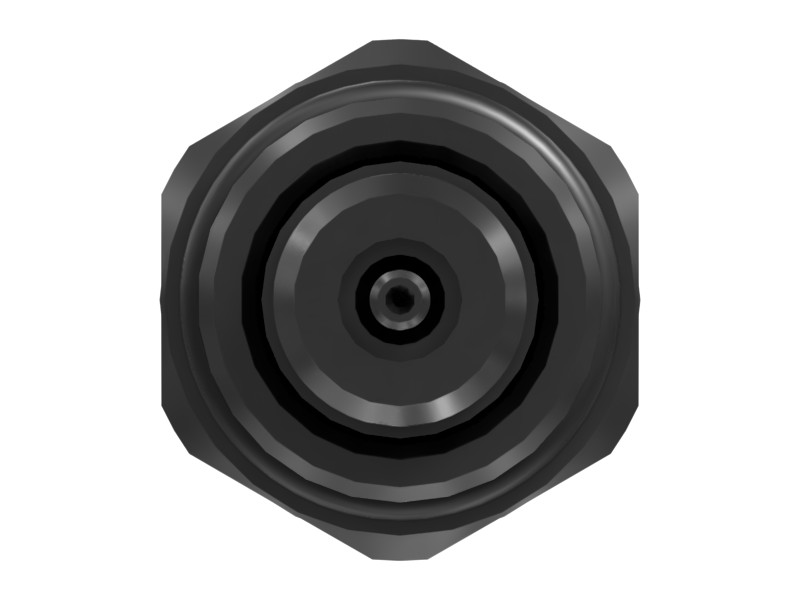

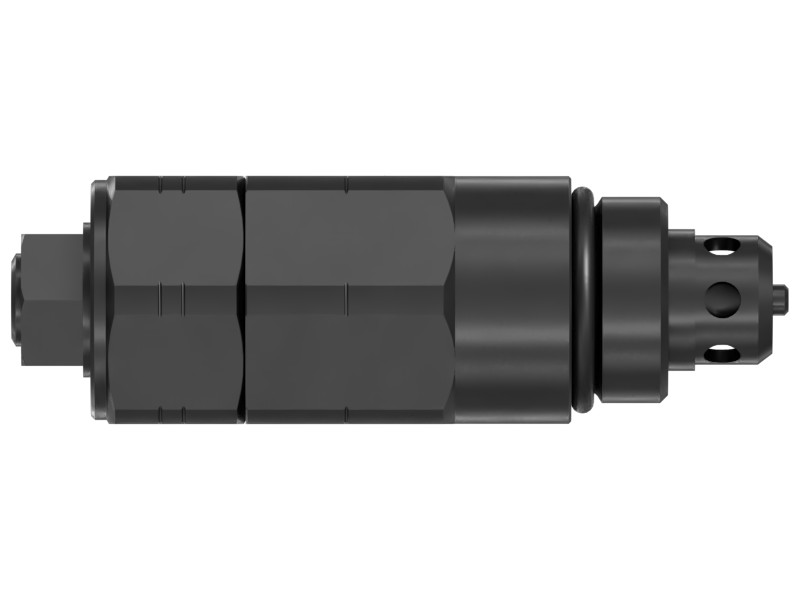

The relief valve assembly limits pressure in the hydraulic circuit. The Cat relief valve group releases fluid when the safe threshold is reached to prevent excessive pressure buildup.
Features
- Pilot operated relief valve with O-ring
- Male End Thread Size: 1-1/16-12
- Overall Length: 100 mm (3.92 in)
- Stabilizes pressure to reduce fluid turbulence
Applications
Used to service the control valve assembly in the hydraulic system of Cat heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Excavators: 330D L, 328D LCR, 320D3, 324D L, 329D L, 324D, 320D L, 336E, 320D2 GC, 336D L, 330D2 L, 325D, 336D2 GC, 330D2, 336E L, 329E L, 323D L, 320D GC, 320D2 L, 325D L, 323D2 L, 340D2 L, 340D L, M325D L MH, 320D FM, 320D RR, 336F, 336F L, 336D2 L, 330D, 323D2, 323D, 336E LH, 320E, 336E H, 336E LN, 336F L XE, 336D2 XE, 329E, 336F LN, 326D L, 335F LCR, 320D2, 320D, 329D, 336D2, 336D, 326D2, 326D2 L, 329D2, 329D2 L
Additional information
| Machine Model | 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 3512B, C7.1, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
