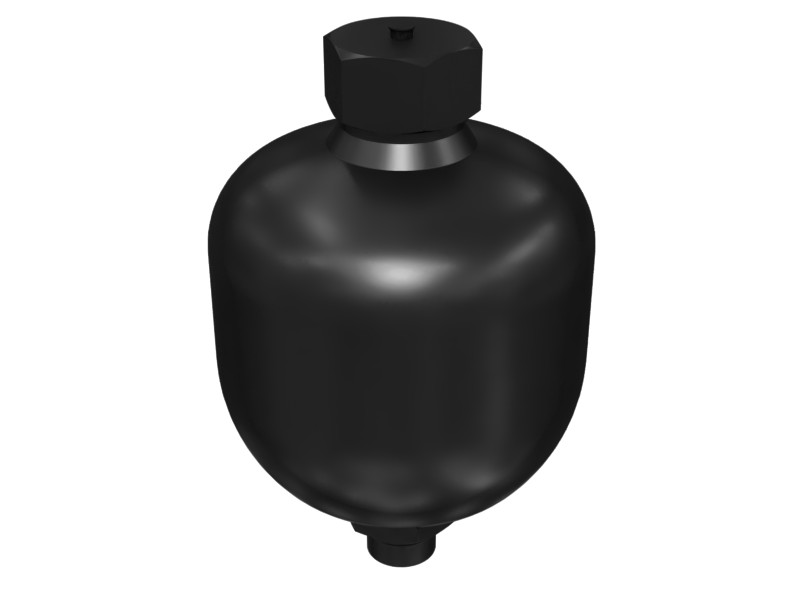

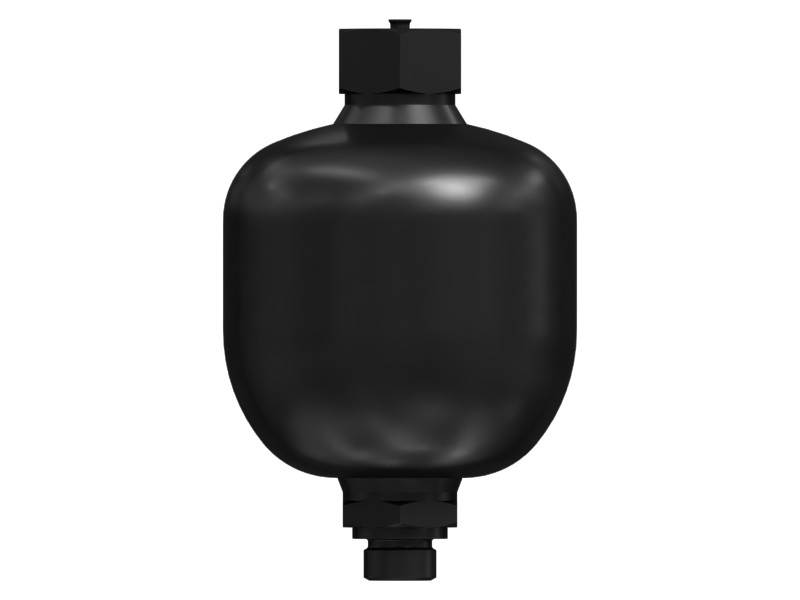

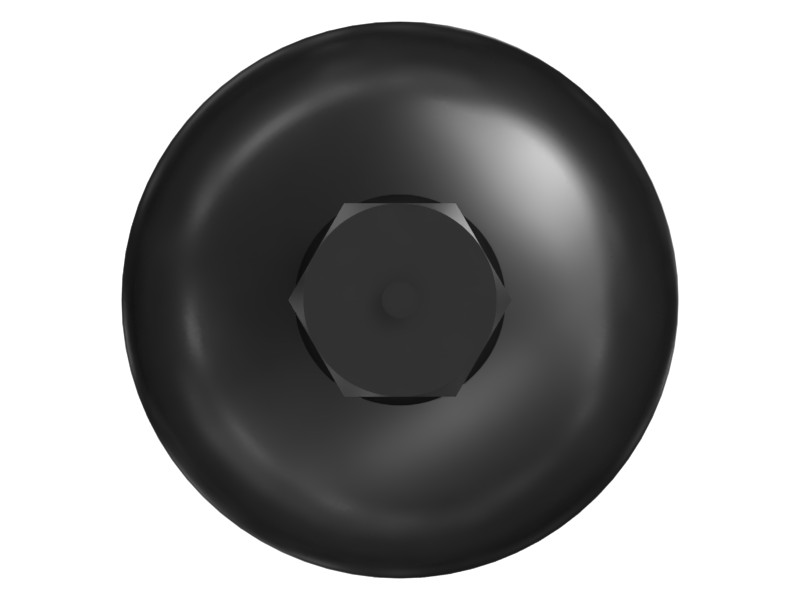

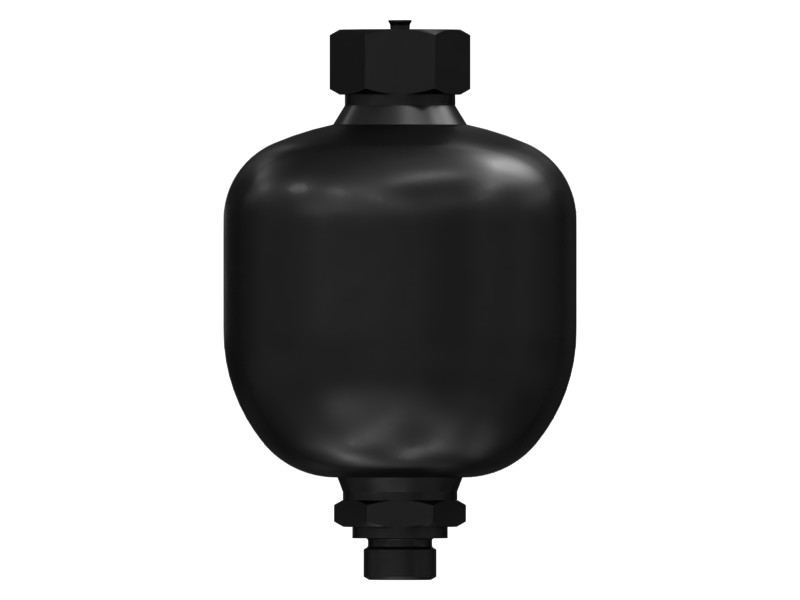

Description
An accumulator is a pressure storage vessel that a hydraulic system can use to manage extreme system demands. By storing pressure in the accumulator, the hydraulic system can use a lower-power pump to meet urgent, temporary pressure demands.
Features
- Uncharged accumulator
- Connection size: 3/4-16 male
- Container capacity: 320 mL (19.5 cu. in.)
- Working Pressure: 3430 kPa (500 psi)
- Charge Medium: Dry Nitrogen
- Fluid: Mineral Oil
Applications
Cat® accumulators are versatile. For example, they are used in hydraulic systems to let the system manage pressure surges, a condition that can generate enormous loads. They can also be used in brake systems and suspension systems.
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 143 mm (5.62 in) |
|---|---|
| Outside Diameter | 93 mm (3.66 in) |
Compatible Equipment
- Wheel Excavators: M315GC
- Mini Excavators: 306, 308.5, 310, 308, 307E2, 305.5E, 307, 305.5E2, 305.5 GC, 303.5E
- Excavators: 313, 349F L, 313 GC, 316 GC, 330D L, 312E L, 336, 320, 329E L, 336E LH, 320 GC, 323, 336F, 329D L, 311D LRR, 349E L VG, 328D LCR, 336E L, 340, 326, 315D L, 345D L, 349E L, 336 GC, 352F, 349D L, 330 GC, 330GC, 336F L, 320E, 312D, 324D L, 320D FM, 313F L, 320D L, 315F LCR, 312D L, 336D L, 325, 335, 320 GX, 315 GC, 323 GX, 313 GX, 316 GX, 312 GX, 320D3 GC, 312 GC, 326 GC, 333 GC, 333, 323 GC, 305 CR, 320D3, 416F2, 313D2, 318D2 L, 312D2 L, 323D2 L, 320D2 L, 318D2, 336D2 L, 320C, 320D2 GC, 330C L, 313F LGC, 323GC, 315, 329E, 335F LCR, 314D LCR, 314D CR, 326GC, 320D, 330, 349D2, 306E2, 307.5, 305, 303, 308E, 320D2
- Wheel Loaders: 910
- Skid Steer Loaders: 242D3, 272D3 XE, 272D3, 226B3
Additional information
| Machine Model | 226B3, 242D3, 272D3, 272D3 XE, 303, 303.5E, 305, 305 CR, 305.5 GC, 305.5E, 305.5E2, 306, 306E2, 307, 307.5, 307E2, 308, 308.5, 308E, 310, 311D LRR, 312 GC, 312 GX, 312D, 312D L, 312D2 L, 312E L, 313, 313 GC, 313 GX, 313D2, 313F L, 313F LGC, 314D CR, 314D LCR, 315, 315 GC, 315D L, 315F LCR, 316 GC, 316 GX, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320C, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323 GC, 323 GX, 323D2 L, 323GC, 324D L, 325, 326, 326 GC, 326GC, 328D LCR, 329D L, 329E, 329E L, 330, 330 GC, 330C L, 330D L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D L, 336D2 L, 336E L, 336E LH, 336F, 336F L, 340, 345D L, 349D L, 349D2, 349E L, 349E L VG, 349F L, 352F, 416F2, 910, M315GC |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
