Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

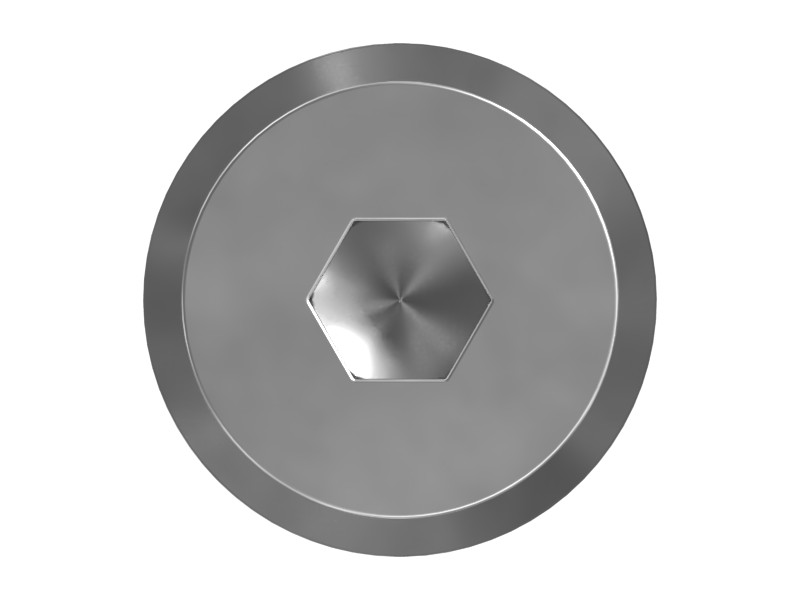

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size | M6 mm (0 in) |
| Thread Direction | RH |
| Material | Alloy Zinc |
| Coating | Not Specified |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 19 mm (0.748 in) |
| Handle Length | 8 mm (0.394 in) |
Compatible Equipment
- Motor Graders: 16M3, 18, 16M, 14M, 16, 14
- Cold Planers: PM620, PM622
- Dozers: D3K2 LGP, D5K2 XL, D1
- Off-Highway Trucks: 797F, 793D, 789D, 789, 793
