Description

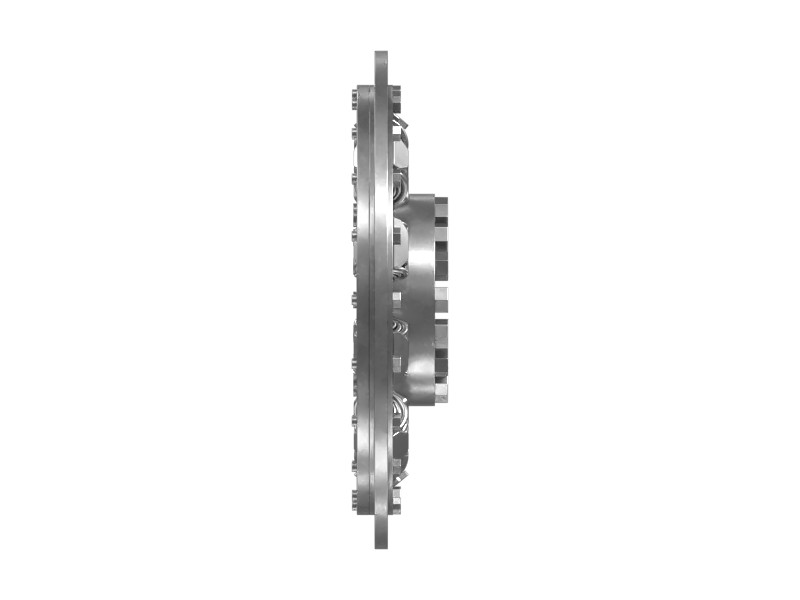

The flexible coupling (351-3869) is mounted to the flywheel on the hydraulic pump shaft to reduce engine load vibration.
Features
- Steel flexible coupling
- Outside Diameter: 205 mm (8.07 in)
- Length: 56 mm (2.20 in)
- Number of Internal Spline Teeth: 14
- Used with M16 fasteners
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 56 mm (2.2 in) |
|---|---|
| Outside Diameter | 205 mm (8.07 in) |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 312D L, 315D L, 311D LRR, 318D2 L, 313D2, 314D LCR, 318D2, 313D2-GC, 312D2 L, 314D CR, 315F LCR, 313F L, 312D, 312D2 GC, 313D, 312E L, 312F, 313D2 GC, 312D2, 312E, 318D L, 308E
- Skid Steer Loaders: 313D2 LGP
