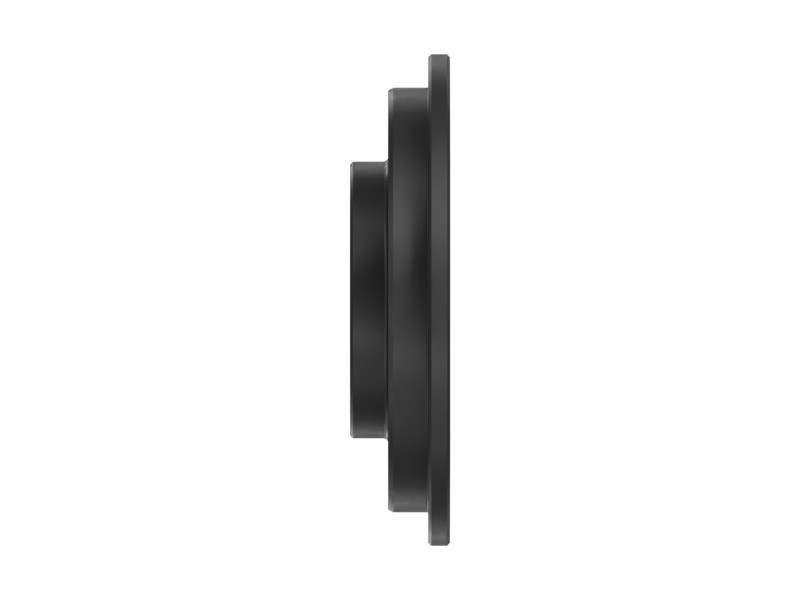

351-2196 88 mm OD Shim
Cat® Fan Drive Spacer, OD X ID X Length: 88 X 39 X 62.3 mm
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The spacer (such as 351-2196) is a thick ring made of metal, rubber, or plastic that sits under a nut or bolt head to distribute pressure when tightened or to provide leveling between two surfaces.
Features
- Steel shim
- Outside Diameter: 88 mm (3.46 in)
- Inside Diameter: 39 mm (1.54 in)
- Length: 62.3 mm (2.45 in)
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Cat bolts, nuts, spacers, and washers are specially designed to work together as a system to maximize clamping force
Applications
Cat spacers and bolts form a high-performance system with matching hardened washers and nuts, producing consistently high clamping force. Cat fasteners are trusted to help build, maintain, or repair most machine and shop applications worldwide.
Specifications
| Diameter | 76 (V-Ring Seal) mm (3 (V-Ring Seal) in) |
|---|---|
| Ferrule Outside Diameter | 76 mm (2.992 in) |
| Ferrule Inside Diameter | 39 mm (1.535 in) |
| Unique Features | No |
| Flange Diameter | 88 mm (0 in) |
| Flange Thickness | 3.8 mm (0.15 in) |
| Cross Hole | No |
| Inside Diameter | 39 mm (1.54 in) |
| Outside Diameter | 88 mm (3.46 in) |
| Overall Height | 0.70 in |
| Overall Length | 18 mm (0.701 in) |
Compatible Equipment
- Generator Sets: C9, 3512E
- Compactors: C9.3B, C13B
- Engines: C15, C13, C18
- Excavators: 3516B
- Wheel Loaders: R2900 XE
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
