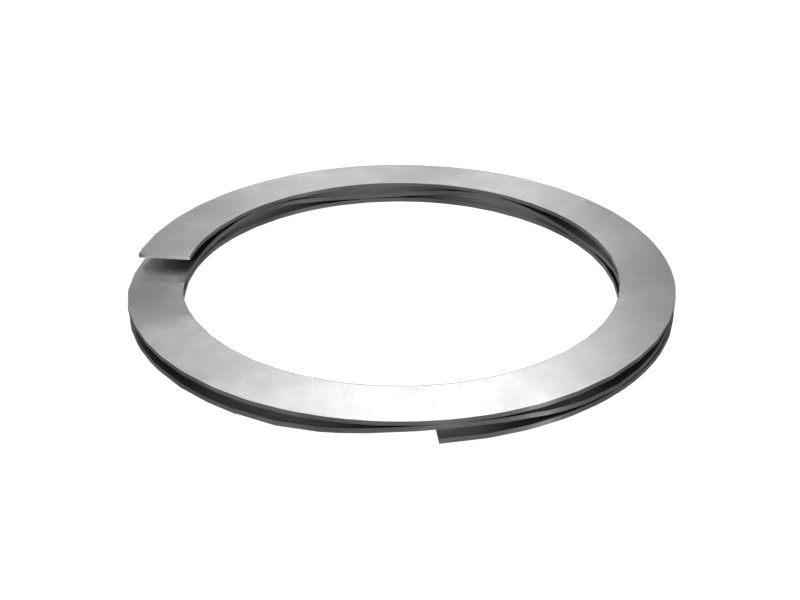

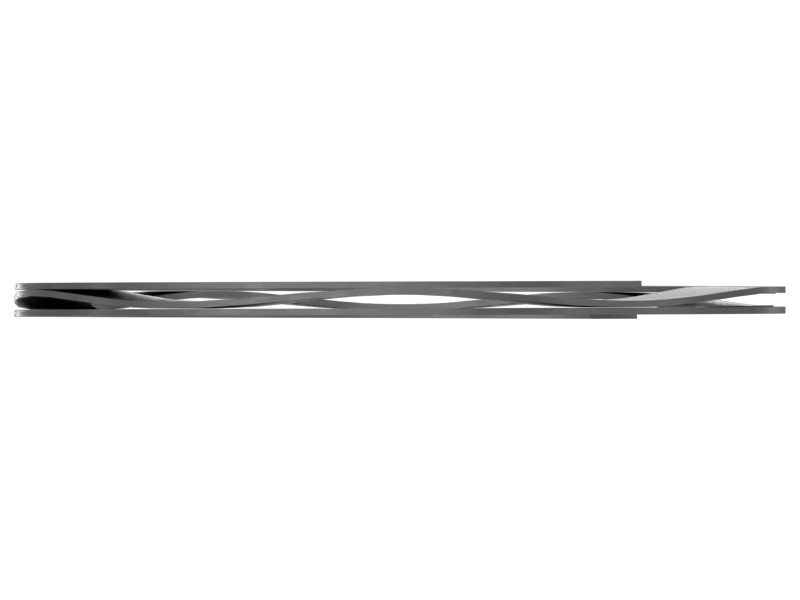

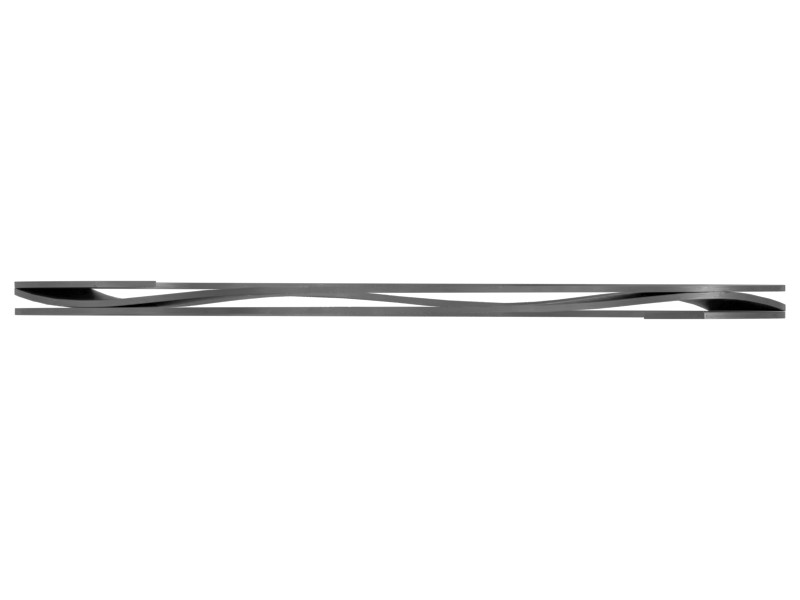

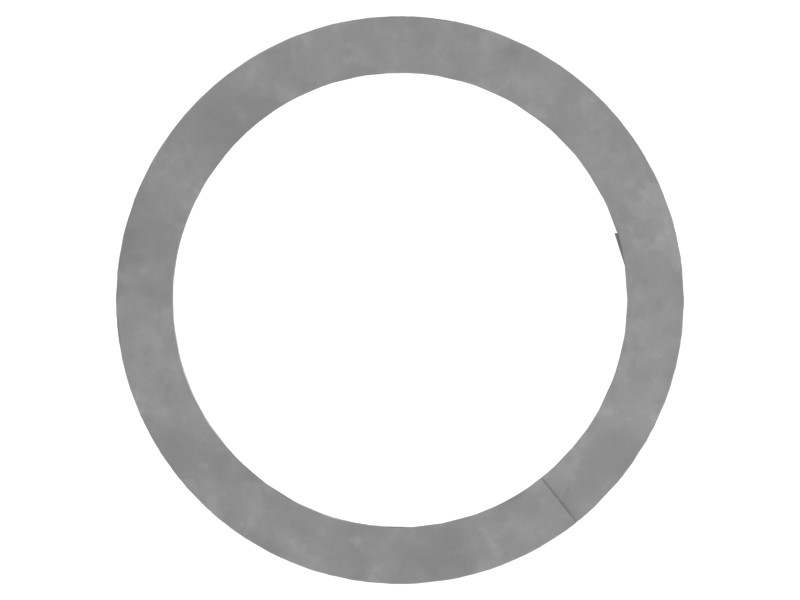

350-8540 102.37 mm ID Wave Spring
Cat® 102.37 mm ID wave spring for transmission planetary gears provides precise load distribution and axial flexibility to accommodate gear movement
Description
Cat powertrain components must withstand extreme torque, high shock loads, and frequent directional shifts. Cat designs and manufactures transmission and final drive components with this demand in mind. The Cat wave spring acts to compensate for dimensional variations within the group.
Features
- Fits shafts with a diameter of 101.65 mm (4 in)
- Fits a 132.11 mm (5.2 in) diameter bore
- 4.75 mm (0.19 in) free length
- Same force and deflection as a standard coil/compression spring
- Reduced spring height
Applications
The Cat wave spring is used in the planetary gear group of the Cat powertrain. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Height | 4.75 mm (0.2 in) |
| Material Description | Steel |
| Inside Diameter | 102.4 mm (4 in) |
| Outside Diameter | 127.5 mm (5 in) |
Compatible Equipment
- Off-Highway Trucks: 730, 735, 725
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
