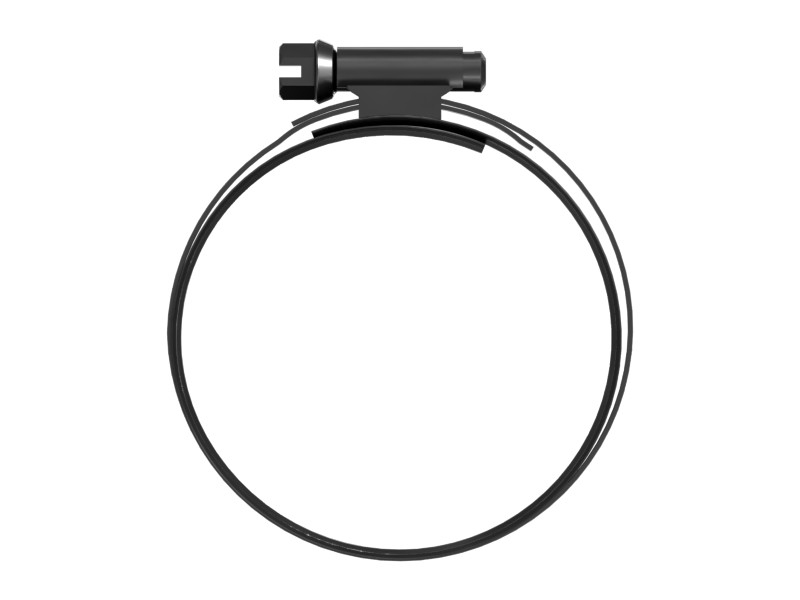

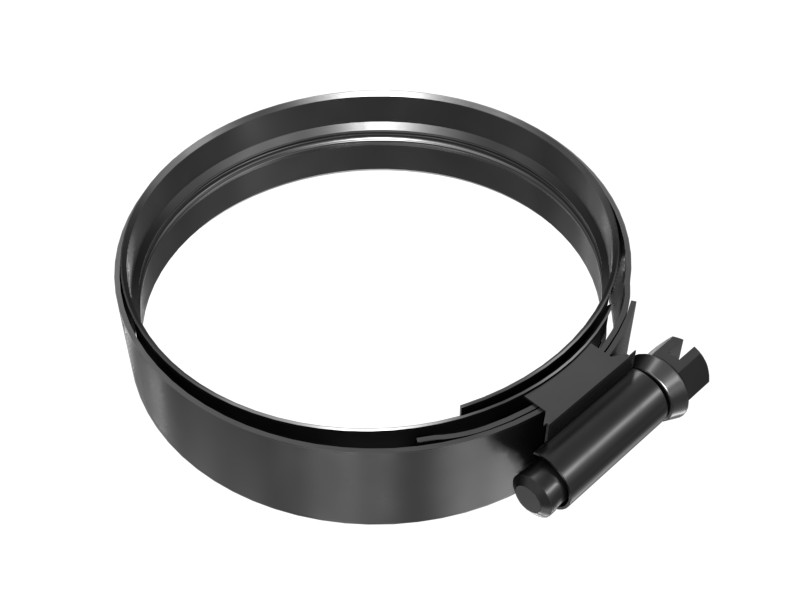

347-3148 48.00 mm Minimum ID Clamp
Cat® Hose Clip (Spring Liner)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The wave liner clamp consists of a clamp and a thermally regulating liner. Under temperature changes and high vibration, the liner can maintain constant tension on the clamped parts.
Features
- Material: Stainless steel
- Hose Clamp Type: Corrugated Liner
- Effective Diameter Range: 39-59 mm (1.54-2.32 in)
- Clamp Width: 14.3 mm (0.56 in)
- Hex Screw Size: 8 mm (0.31 in)
- With liner plate
Specifications
| Material | Stainless Steel |
|---|---|
| Hose Clamp Type | Corrugated Liner |
| Working Diameter | 39 – 59 mm (1 1/2 – 2 5/16 in) |
Compatible Equipment
- Generator Sets: C9, 3512E
- Motor Graders: 14, 12H, 140G, 160K, 140K, 120H, 12K
- Engines: C7
- Compactors: C-9
- Dozers: D6R II, D6R III, D6T, D6R, D6R XL, D7R, D6R LGP
- Excavators: 330D L, 325, 336D2 L, 328D LCR, 325C, 336D L, 330C L, 325D, 325D L, 324D L, 326D L, 330C, 329D L, 330D, 325C L, 324D, 336D2 XE, 336D2 GC, 637G, 637E, 340D2 L, 340D L, M325D L MH, 336D2, 329D, 336D
- Wheel Loaders: 950H, 966F, 906K
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12H, 12K, 14, 140G, 140K, 160K, 3126B, 324D, 324D L, 325, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 3512E, 637E, 637G, 906K, 950H, 966F, C-9, C7, C9, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
