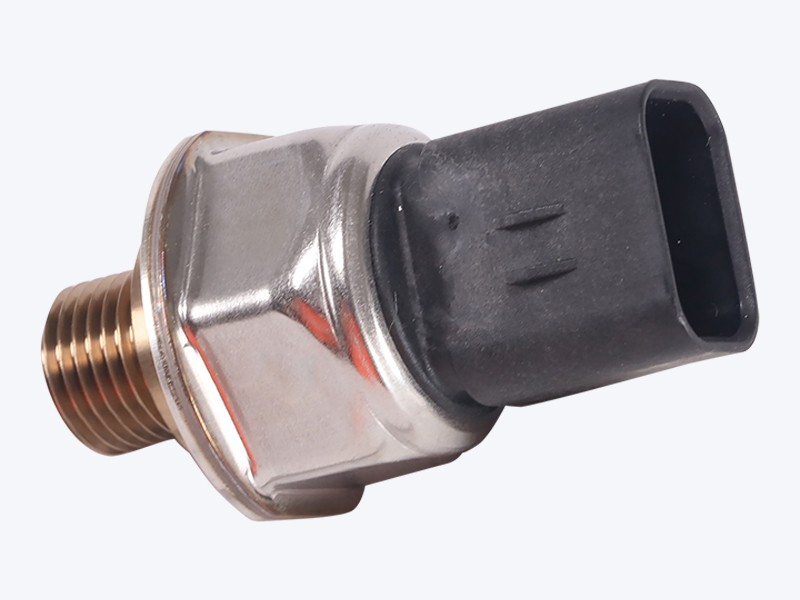

344-7391 35.5 MPa Pressure Sensor

Description

Cat high pressure sensors use strain gauge-based technology to generate an output signal (analog, PWM (Pulse Width Modulation), or variable frequency) proportional to the applied pressure. Sensors are available with a variety of electrical connector and process connection types.

Features

• Compact size
• Easy to install
• Can be used with integral connectors or a variety of harness lengths

Applications

• High pressure sensors are widely used in various machine applications, such as brake systems, steering systems, and hydraulic systems.
• Cat pressure sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Compatible Equipment

• Track Loaders: 826K, 990K, 994K, 982, 972, 995, 993, 992
• Cold Planers: PL61
• Compactors: 825K, 834K, 824K, 814, 816, 815
• Excavators: 307.5, 308E, 303.5E2 CR, 305, 305E2 CR, 120 GC, 637K, 434F2, 428F, 621K, 305 CR, 302.7CR, 336E LH, 336E H, 336F L XE, 301.6, 301.8, 336D2 XE, 303.5CR, 303CR, 432, 621H
• Asphalt Pavers: AD63
• Skid Steer Loaders: 249D3, 239D3, 236D3, 262D3, 272D3 XE, 272D3, 24, 259D3, 236D, 246D, 246D3, 262D, 242D3, 226D3, 232D3, 299D3 XE, 289D3, 232D
• Motor Graders: 140 GC, 16, 18, 16M3, 14, 120, 160K, 12K, 140K
• Wheel Excavators: MD6250, MD6310, MD6200
• Dozers: D11T, D6K2, D6T, D6N, D4, D7, D9, D11, D10, D8
• Compact Track Loaders: 299D3, 279D3
• Mini Excavators: 306, 308, 310, 306.5, 303.5E, 305.5E, 308.5, 302CR, 301.7CR, 305E2, 305.5E2, 301.5, 307E2
• Wheel Loaders: R2900 XE, R1700K, 966L, 926M, 950L, 938K, 924K, 988K, 972L, 950 GC, 972H, 938M, 986H, R1600H, 980, 966, 836, 834, 950, 980L, R1700 XE, 966H, 980H, 962L, 910, R2900G, 966K
• Off-Highway Trucks: 777, 773, 745C, 740 GC, 796 AC, 730, 794 AC, 725C2, 740, 770G, 740B, 735, 745, 775G, 785, 798 AC, 793, 772G, 725, 789, 777E
