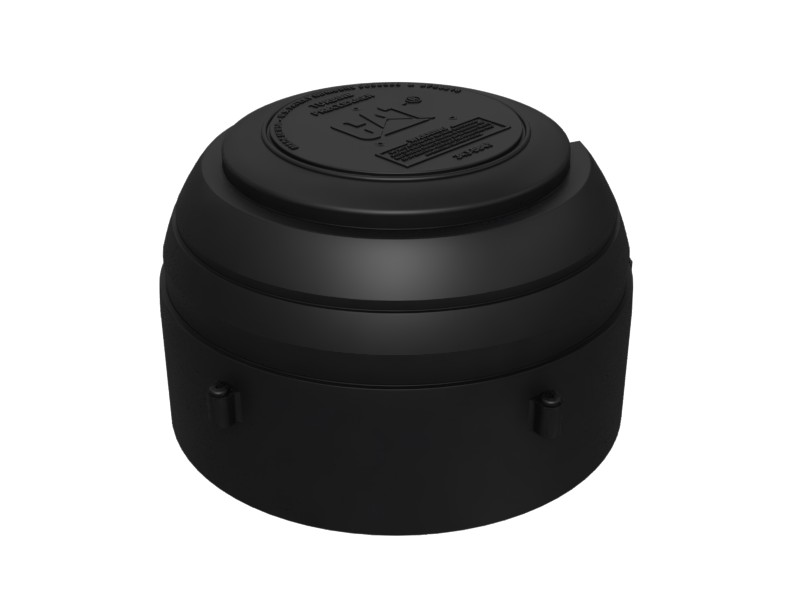

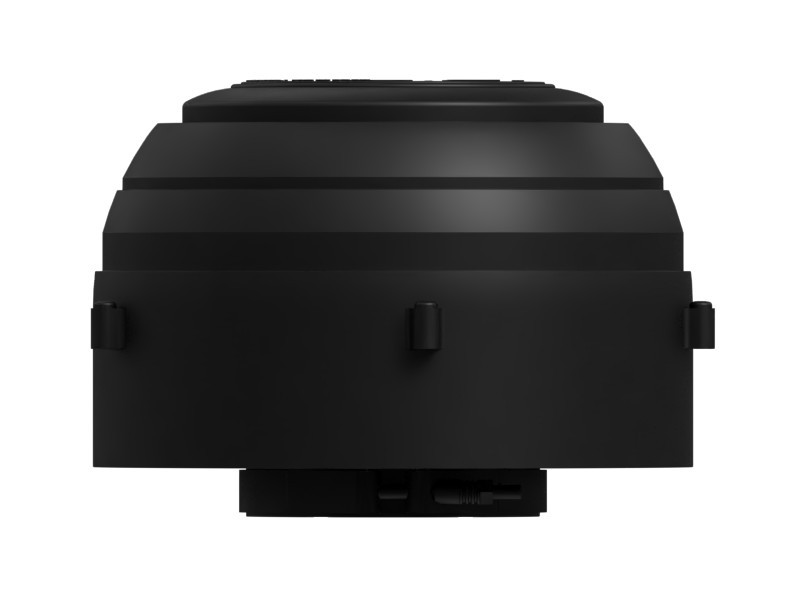

343-5645 Turbo Precleaner Group
Cat® Turbo Precleaner Group
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Choosing Genuine Cat filters, cleaners and precleaners to protect your revenue-generating equipment is always worth it.
Contamination is the number one enemy of engines, so it is critical to protect Cat equipment with Genuine Cat filter elements. Cat Precleaner Groups are ideal for normal-duty applications, providing better engine protection and helping avoid equipment downtime.
Cat air filters offer long service life, superior filtration performance, and are environmentally friendly and cost-effective. Genuine Cat filters are designed entirely to Cat equipment specifications and are a key factor in how efficiently your machine uses air. A clean filter element protects internal mechanisms from dust damage.
Always choosing Cat air filters is the smart way to ensure long life and optimal performance for your Cat machines.
Features
- Turbo precleaner group
- Airflow range: 9.9-14.2 m3/min (350-500 CFM)
- Mounting diameter: 128.4 mm (5.06 in)
- Outside diameter: 270.1 mm (10.63 in)
- Quick service
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Scavenge Required | No |
|---|---|
| Housing Material | Plastic |
| Overall Length | 202.7 mm (7.98 in) |
| Type | Turbine |
| Overall Width | 270.1 mm (10.634 in) |
| Overall Height | 270.1 mm (10.634 in) |
| Material | Polyamide Plastic |
| Height | 201.8 mm (7.94 in) |
| Outlet Size | 128.4 mm (5.055 in) |
| Width | 270.1 mm (10.634 in) |
| Outside Diameter | 270.1 mm (10.63 in) |
| Length | 202.7 mm (7.98 in) |
Compatible Equipment
- Motor Graders: 140K, 160K, 12K
- Track Loaders: 963, 963K
- Dozers: D6N
- Excavators: 323D2 L, 320D2 L, 320E, 320D2 GC, 323D2, 320D2
- Wheel Loaders: 938K, 938M, 924HZ, 928HZ, 924K, 926M
