Description
Cat fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.

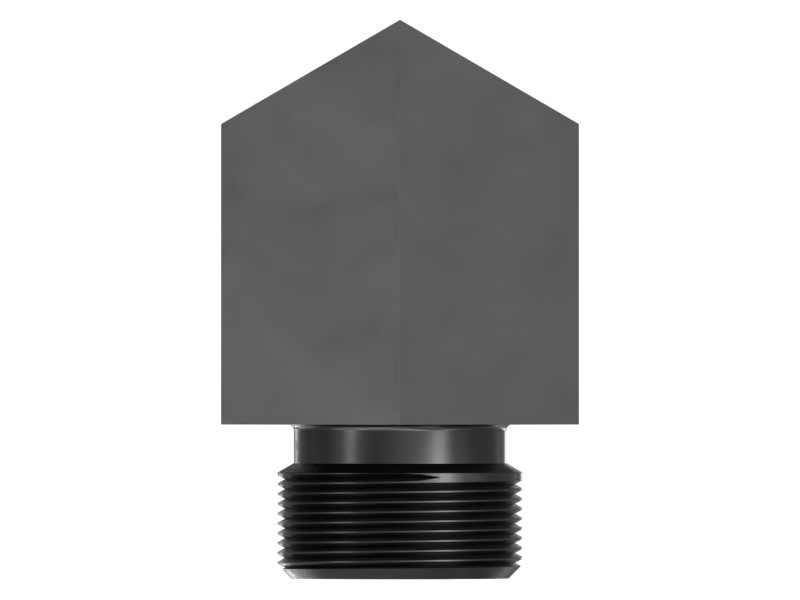

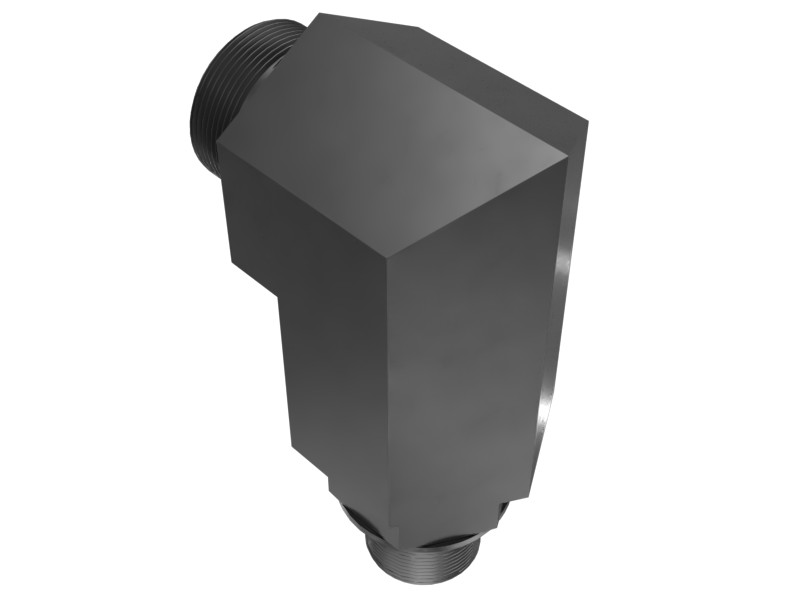

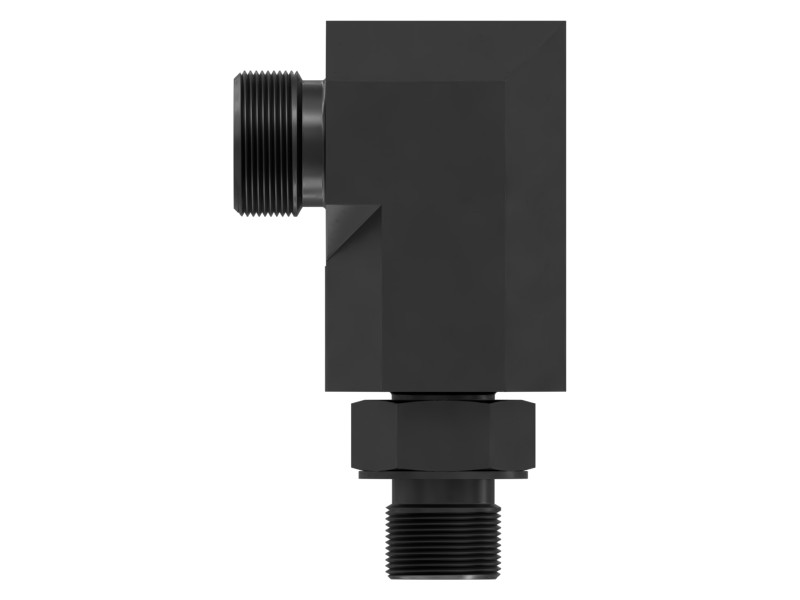

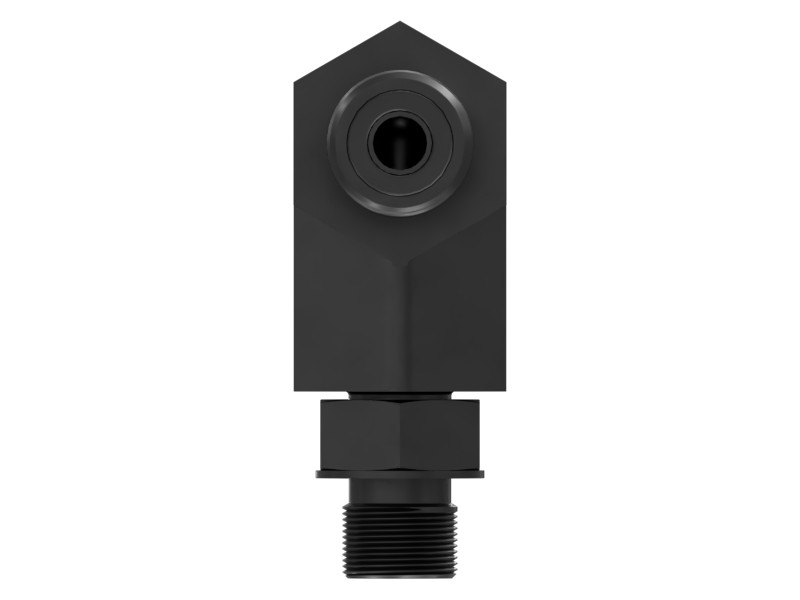

Features
- Plated steel adapter
- End 1: Male STOR
- End 2: Male ORFS
- End 1 Thread Size: 9/16-18
- End 2 Thread Size: 11/16-16
- Hex Size: 19.05 mm (0.75 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer's couplings or the use of Caterpillar couplings with other manufacturer's hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3. |
|---|---|
| Overall Width | 20.3 mm (0.8 in) |
| Overall Height | 20.3 mm (0.8 in) |
| Overall Length | 64.8 mm (2.55 in) |
| Material Description | Steel |
| Material | Carbon Steel |
| Coolant and DEF Compatible Seals | 6D-7128 (11/16-16), 6V-3250 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18), 228-7089 (11/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18), 6V-8397 (11/16-16) |
Compatible Equipment
- Motor Graders: 14, 18, 16, 16M3
- Track Loaders: 973K, 982
- Cold Planers: PM622, PM620, PL72
- Compactors: CB1.8, CB1.7
- Wheel Excavators: M315, M315GC
- Engines: C15, C13
- Dozers: D8T, D6T, D6N, D6T LGP, D7E
- Excavators: 313 GC, 313, 349F L, 315 GC, 315, 637K, 352, 349E, 349, 349E L, 352F, 621K, 349E L VG, 621H, 336F, 336F LN, 336F L XE, 336F L, 336E L, 336E H, 336E LH, 336E, 336E LN
- Wheel Loaders: 972M, 982M, 980M, 966M
- Off-Highway Trucks: 730, 735, 793, 725C2, 725
Additional information
| Machine Model | 14, 16, 16M3, 18, 313, 313 GC, 315, 315 GC, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 349, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 621H, 621K, 637K, 725, 725C2, 730, 735, 793, 966M, 972M, 973K, 980M, 982, 982M, C13, C15, CB1.7, CB1.8, D6N, D6T, D6T LGP, D7E, D8T, M315, M315GC, PL72, PM620, PM622 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines |
| Part Source | Genuine OEM |
