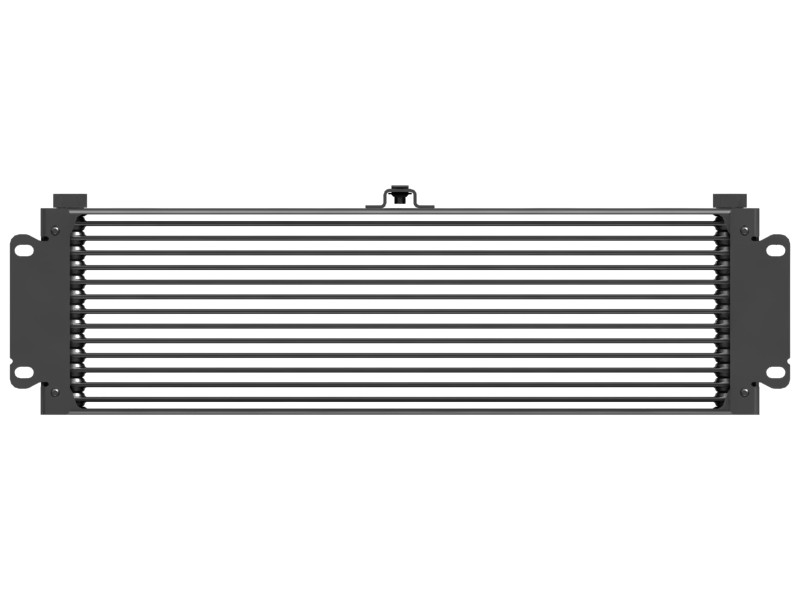

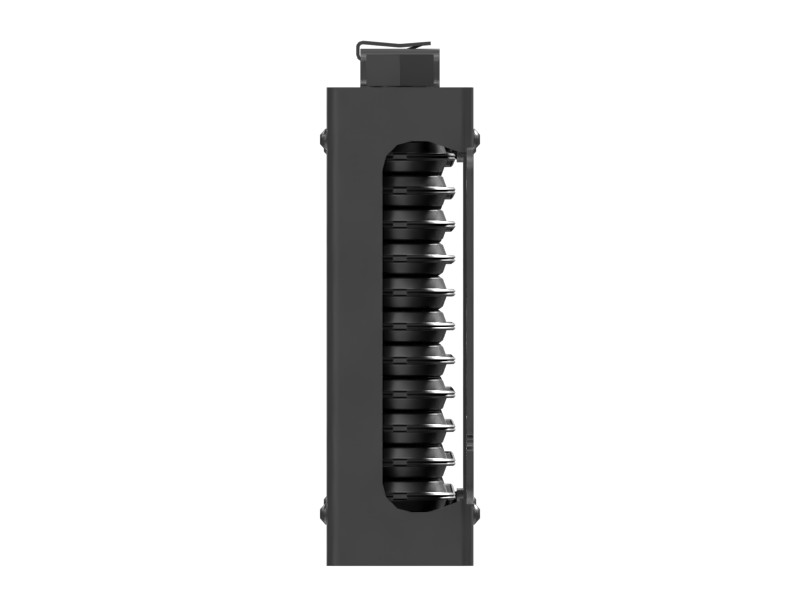

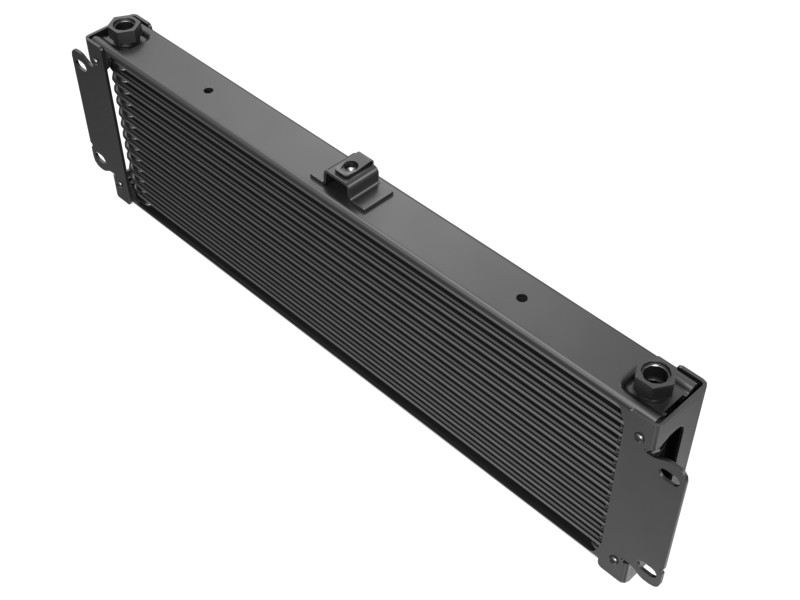

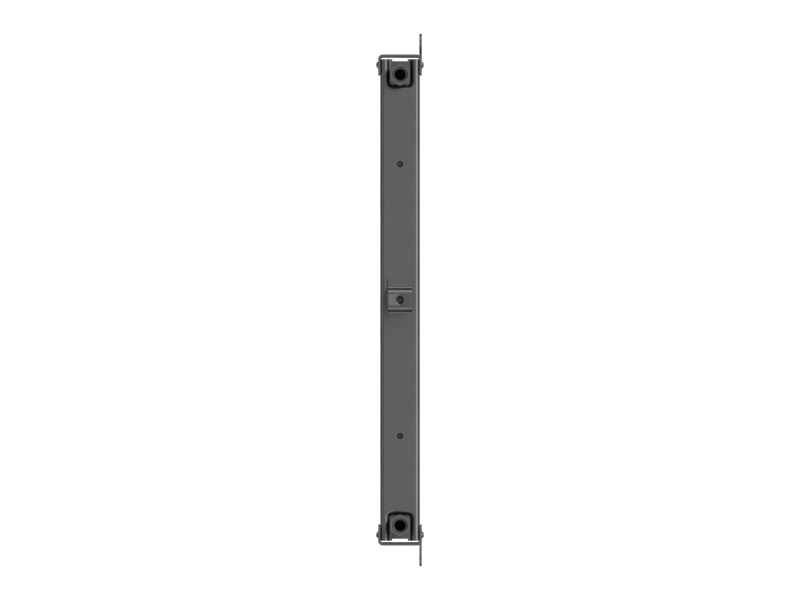

339-2086 Fuel Cooler Core
Cat® Fuel Cooler Core for Off-Highway Trucks, Dimensions: 803 X 236 X 71 mm
Description
The cooler core (e.g., 339-2086) is an important component of the fuel cooler and helps maintain fuel temperature by drawing off excess heat to cool the fuel before it returns to the fuel tank. The cooler core is equipped with heavy-duty instrument mounting brackets to reduce movement and vibration.
Cat parts are built to exact specifications for durability, reliable performance, efficiency and environmental friendliness, and are reusable.
Features
- Aluminum Cooler Core
- Heat Transfer: Liquid to Air
- Air Fin Type: Square Wave
- Inlet and Outlet Type: SAE -10 STOR Port, 7/8-14 UNF
- Dimensions: 803 X 236 X 71 mm (31.6 X 9.3 X 2.8 in)
- Equipped with heavy-duty gauge mounting bracket to reduce movement and vibration
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 803 mm (31.6 in) |
|---|---|
| Overall Width | 236 mm (9.3 in) |
| Overall Height | 71 mm (2.8 in) |
Compatible Equipment
- Off-Highway Trucks: 775G, 777, 773
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
