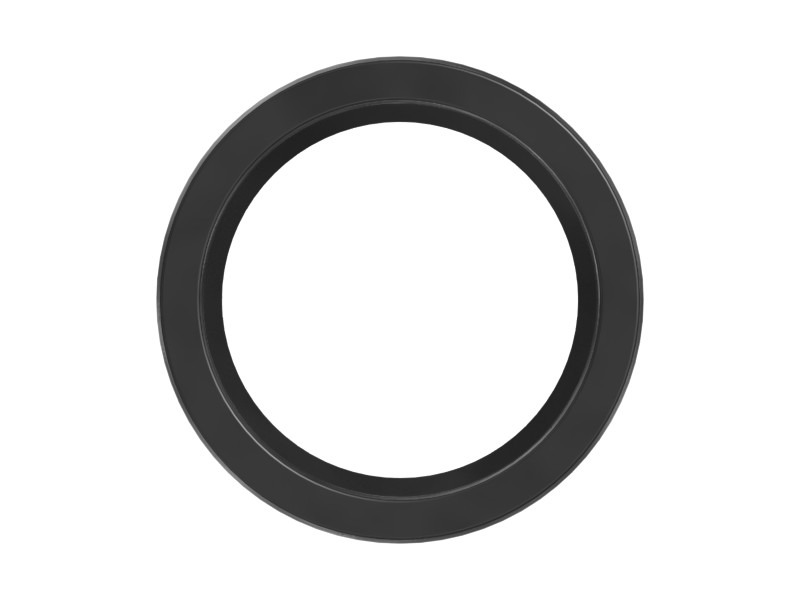

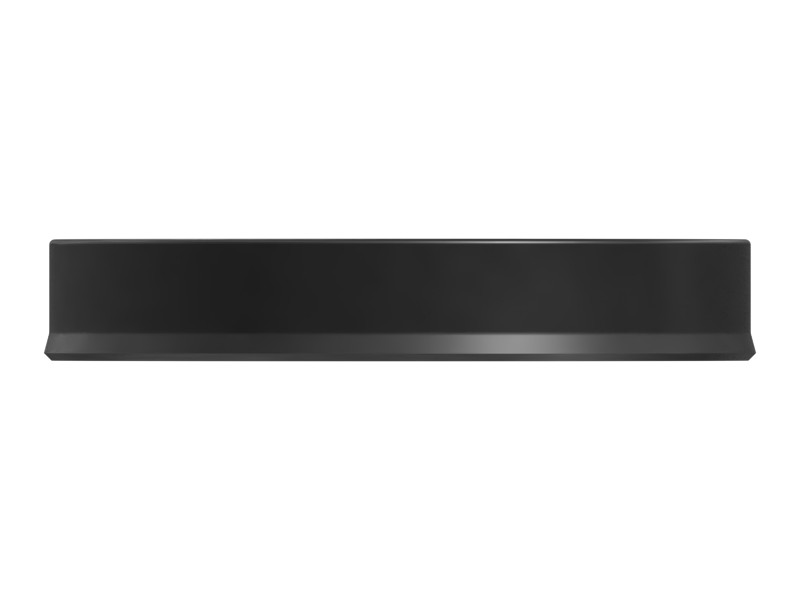

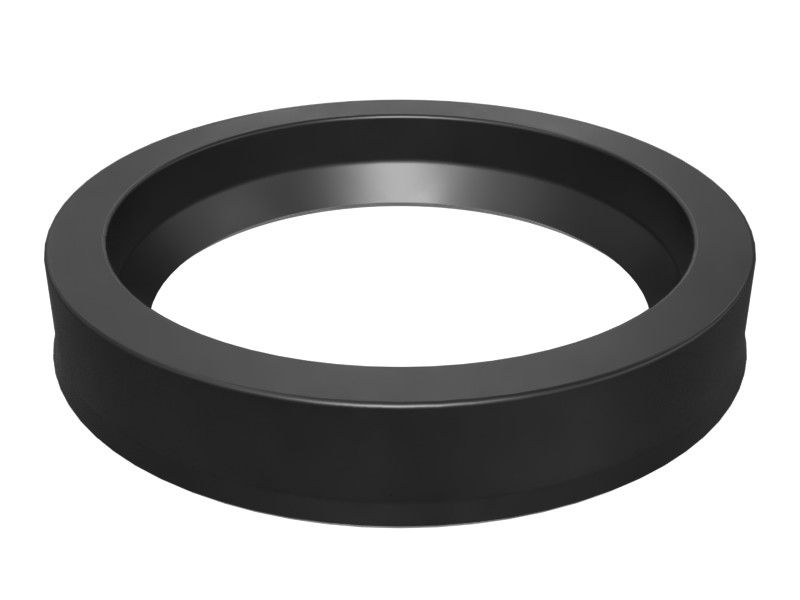

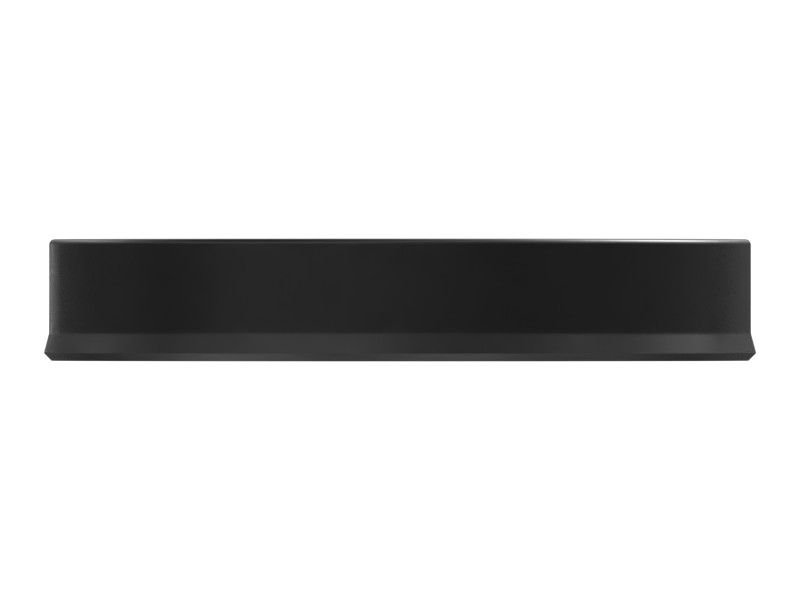

338-2444 66.05 mm OD U-Cup Seal
Cat® 50 mm rod diameter U-cup seal ensures effective sealing and prevents hydraulic fluid leakage in lift and hoist cylinders.
Description
Cat U-cup seals provide a fluid-tight seal between the hydraulic cylinder and the shaft. Their U-shaped cross section automatically compensates for higher pressures to maintain a constant seal.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Urethane Rubber |
|---|---|
| Material Description | Polyurethane Rubber |
| Rod Diameter | 49.9555 mm (1.966 in) |
| Outside Diameter | 66.05 mm (2.600 in) |
| Width | 11.4 mm (0.448 in) |
Compatible Equipment
- Wheel Excavators: M315D, M320
- Excavators: 428F, 315F LCR, 416F2, 432
- Wheel Loaders: 938K, 938M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
