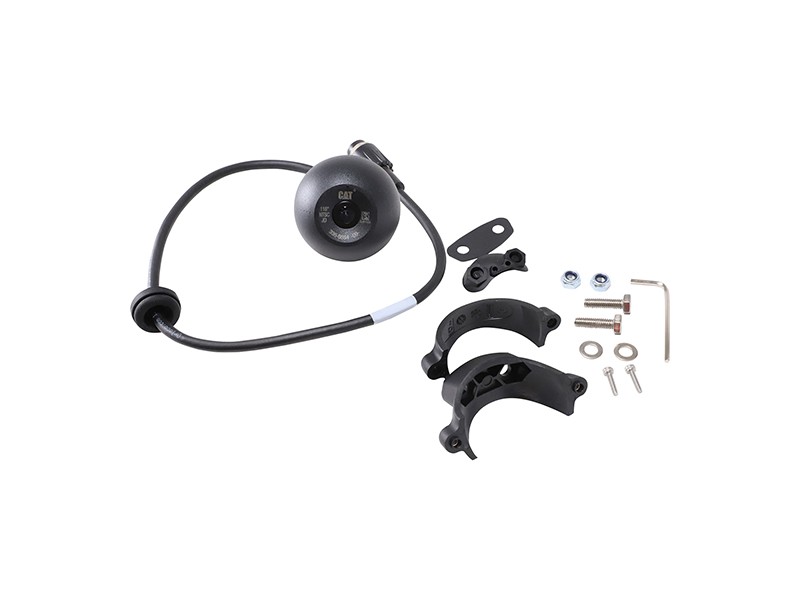

336-6684 24 Volt Color Camera
Cat® part 336-6684 is a color camera that provides a 115° field of view, with a wiring harness, for a rear view display on the dash panel.
Description
Cat cameras provide a wide horizontal view, giving equipment operators an unobstructed line of sight from inside the vehicle. Cat repair and replacement parts help make field repairs of heavy-duty equipment easy. Meets your quality expectations in demanding work environments.
Features
- NTSC camera
- Compatible with 12 or 24 V
- 115° horizontal field of view
- Pigtail 4-pin connector
- Shock and vibration resistant
- Includes mounting fasteners
- Highly durable
- RoHS compliant
Applications
Cat cameras are mounted all around the equipment, giving equipment operators an unobstructed view to assist with backing up and positioning heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts are built to work in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and dust.
Specifications
| Material | Alloy Aluminum |
|---|
Compatible Equipment
- Generator Sets: 3406B, C9, 3406C
- Track Loaders: 826K
- Cold Planers: PM620, PM622
- Compactors: 834K, 825K, 824K, 816, 815, 814, C-15, C-9
- Engines: C7, C15, C18
- Excavators: 320D, 336D2, 336D, 303.5E2 CR, 326D2 L, 329D, 329D2, 320D2, 374D L, 349D2, 390D L, 349D2 L, 349D, 3126, 329D2 L, 305E2 CR, 330D L, 336D L, 329D L, 325D, 311D LRR, 315D L, 312D, 320D RR, 320D L, 336D2 L, 328D LCR, 323D L, 324D L, 330D, 312D L, 323D, 312D2 L, 314D CR, 323D2 L, 324D, 314D LCR, 325D L, 318D2 L, 320D2 L, 312D2, 345D L, 349D L, 6015B, 390D, 385C L, 345D, 385C FS, 345C L, 365C L, 345C, 385C, M325D L MH, 432, 6015
- Skid Steer Loaders: 242D3, 226D3, 232D3, 272D3, 249D3, 246D3, 289D3, 262D3, 272D3 XE, 262D, 246D, 236D, 236D3, 232D, 299D3 XE, 239D3, 259D3, 3126B
- Motor Graders: 16, 16M3, 18
- Wheel Excavators: M317D2, M315D2, M315D, M320D2, M322D, M313D, M320
- Dozers: D3K2 LGP, D5K2 XL
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 305.5E2, 307E2, 305E2
- Wheel Loaders: 926M, 834, 988K, 938M, 924K, 938K, 836
- Off-Highway Trucks: 789D, 785D, 725, 793D, 745C, 798 AC, 796 AC, 773E, 793F, 730, 797F, 740 GC, 777E, 740B, 773D, 794 AC, 725C2, 745, 777D, 735, 740, 775G, 7495, 777, 773, 785, 789
