Description

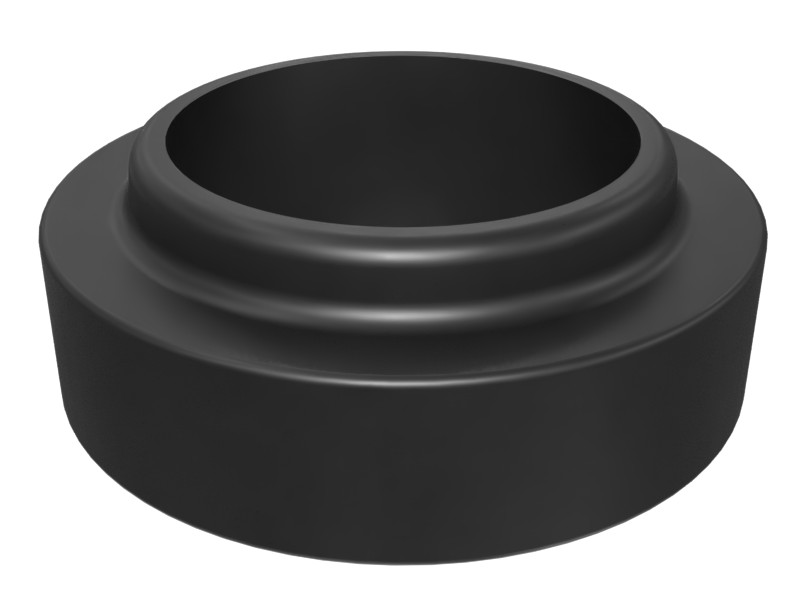

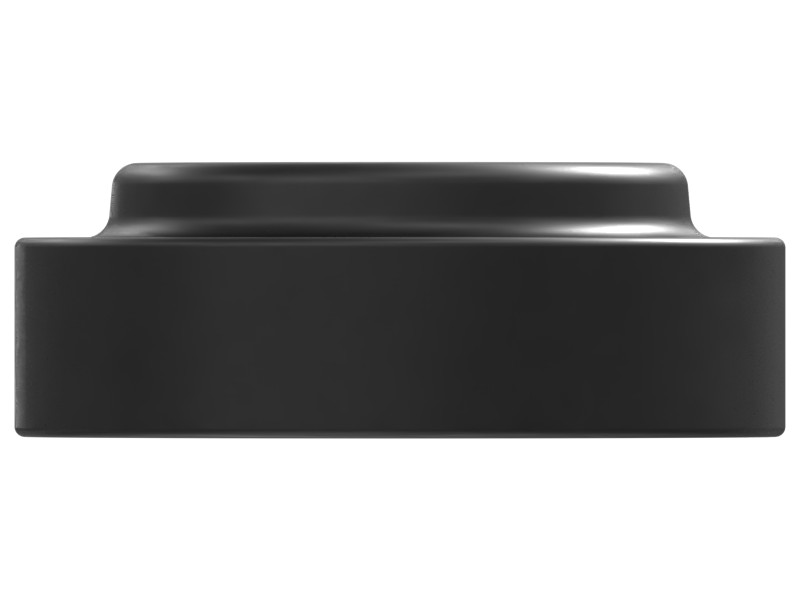

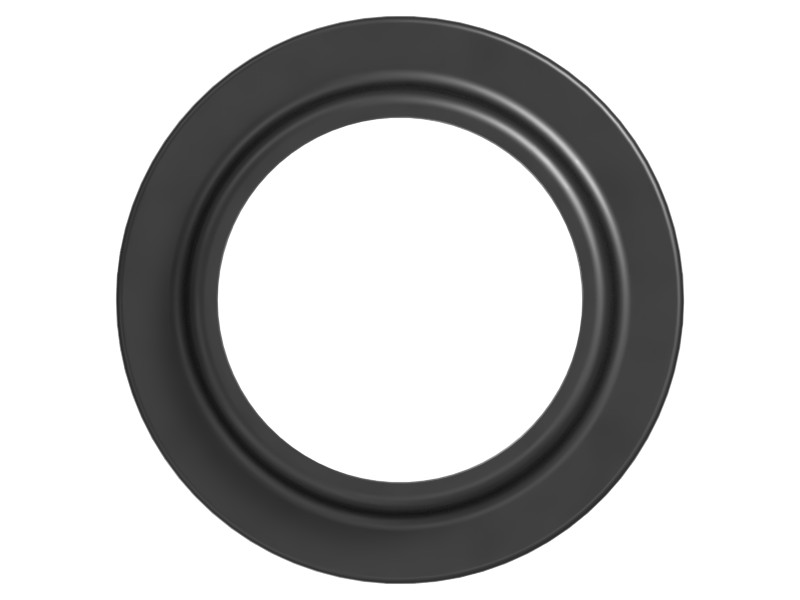

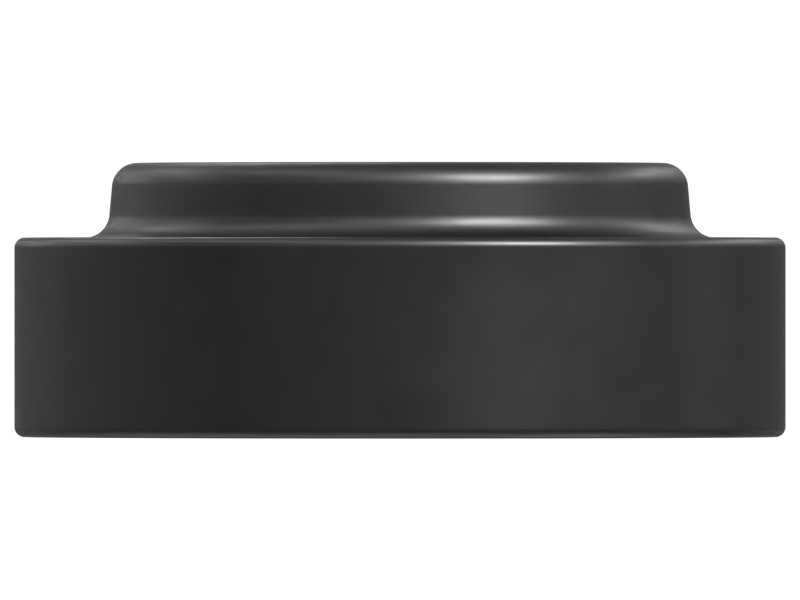

Replacement pilot valve pad for use in Cat hydraulic pedal controls.
Features
- Material: NBR
- Outside Diameter: 15.5 mm (0.61 in)
- Inside Diameter: 10 mm (0.39 in)
- Thickness: 5.5 mm (0.22 in)
Applications
Used as needed for servicing pilot valve pushrods to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
|---|---|
| Inside Diameter | 10 mm (0.39 in) |
| Material Description | NBR |
| Outside Diameter | 15.5 mm (0.61 in) |
| Thickness | 5.5 mm (0.22 in) |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B
- Mini Excavators: 305.5 GC, 307D, 305.5E, 307, 308E2, 305.5E2, 307E2, 307C
- Excavators: 330D L, 349F L, 336D L, 320D3, 313D2, 320D3 GC, 323D L, 336D2 GC, 313D2 GC, 336F L, 320C, 329E, 336D2 L, 312D2, 323D2 L, 329D L, 329E L, 320D2 GC, 312D2 L, 325C, 330D2, 315F LCR, 324D L, 320D L, 311D LRR, 336E LH, 330C, 320D2 L, 330D, 314C, 312E, 330D2 L, 330C L, 320E, 336F L XE, 326D L, 320D RR, 314D LCR, 312C L, 325D L, 325C L, 336E L, 315C, 336E, 324D, 323D2, 325D, 312E L, 323D, 336F LN, 312F, 336F, 313D2-GC, 328D LCR, 312C, 349D L, 349E L, 374F L, 340D L, 390F, 340D2 L, 345D L, 352F, 345C, 345D, 349E L VG, 336E LN, 312D2 GC, 311C, 335F LCR, 313F L, 336D2 XE, 320D2, 320D, 326D2, 336D2, 326D2 L, 336D, 329D2 L, 329D2, 329D, 349D2 L, 349D2, 374F, 390F L, 349D, 307E, 306E2, 308E
Additional information
| Machine Model | 305.5 GC, 305.5E, 305.5E2, 306E2, 307, 307C, 307D, 307E, 307E2, 308E, 308E2, 311C, 311D LRR, 312C, 312C L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2-GC, 313F L, 314C, 314D LCR, 315C, 315F LCR, 316F, 320C, 320D, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345C, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 3512B, 352F, 374F, 374F L, 390F, 390F L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
