Description

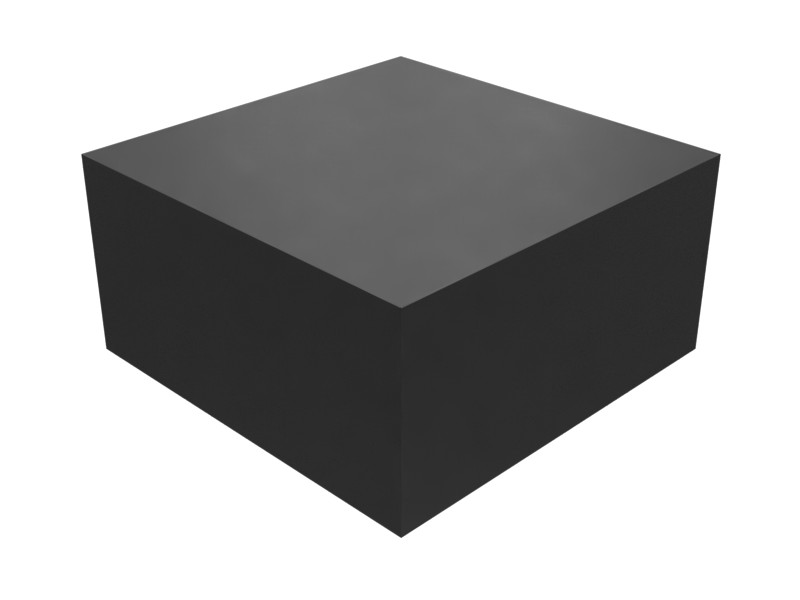

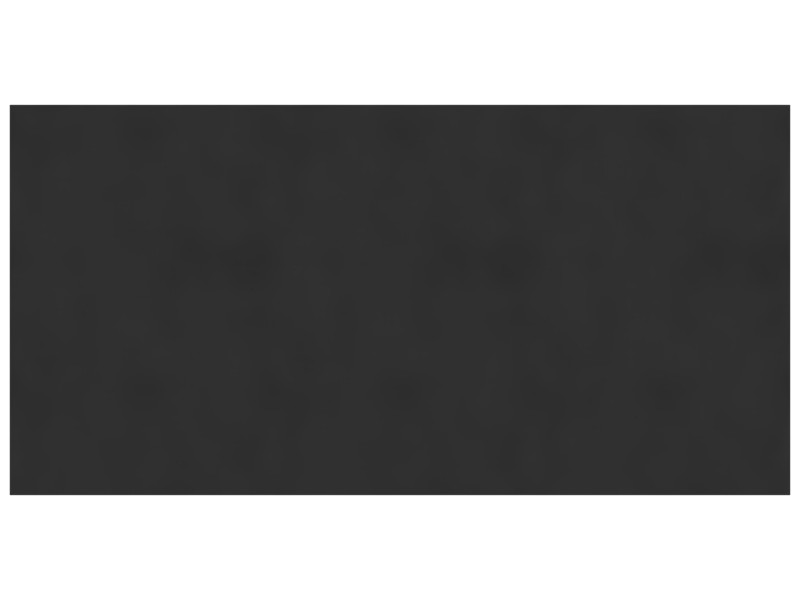

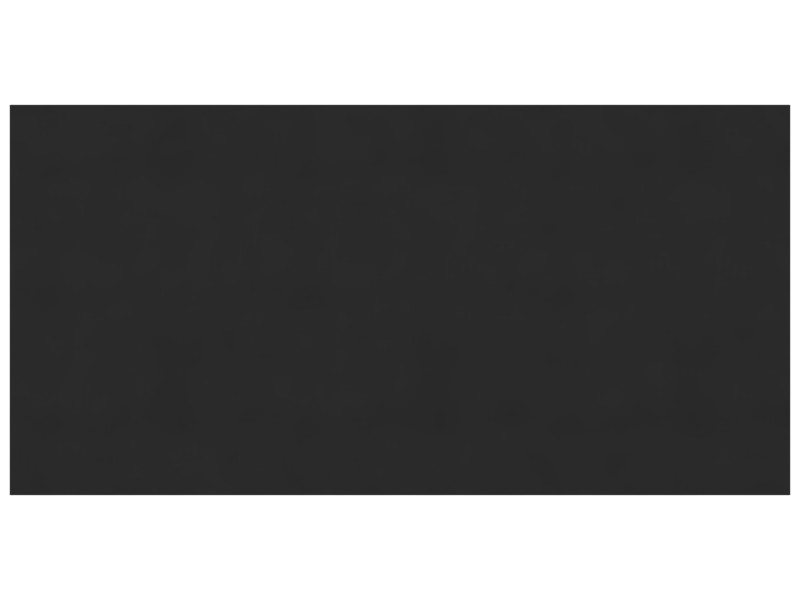

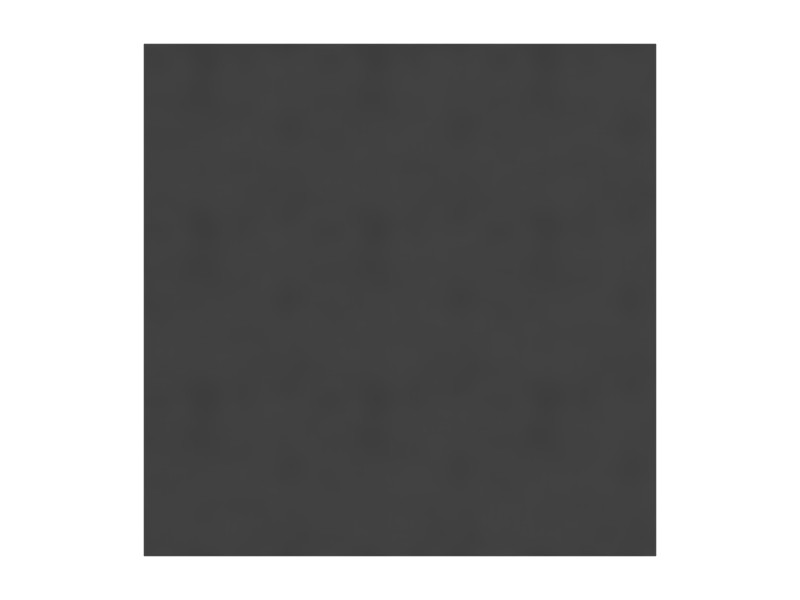

Shims are components used to position the cab door window side in the console. They are also used to provide positioning assistance between components. Shims are usually made of durable materials such as metal or plastic. They come in various sizes and thicknesses.
Attributes
- Withstands heavy loads and provides support for components in a variety of applications.
- Withstands high pressure without deforming or breaking.
- Protects components from damage or wear by preventing them from rubbing against each other.
Applications
The shim is used to increase the distance between the parts it secures. It is mainly used on Cat 330F, 335F, 336D2L, 336EL, 349F, 336, 340, 350, 352, 349EL, 320GC, 323GC, 326GC, 333, 317, 352, 374FL, 390FL, 313, 374, 395 excavators, 6015B and 6015 hydraulic excavators, MH3250, MH3260, MH3022 and MH3295 material handlers, M314, M315, M317, M318, M319, M320, M322, M315GC and MH3040 wheeled excavators.
Specifications
| Material | PVC Plastic |
|---|---|
| Length | 20 mm (0.79 in) |
| Thickness | 10 mm (0.4 in) |
| Weight | 0.01 kg (0.01 lb) |
| Width | 20 mm |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Motor Graders: 316F, 349 GC
- Wheel Excavators: M320, M315, M315GC
- Excavators: 313, 316 GC, 313 GC, 349F L, 374, 340, 333, 312 GC, 355, 350, 325, 323 GX, 3101, 320D L, 352, 320 GX, 336F LN, 336D2 L, 323, 336E L, 320, 329D L, 326, 315, 330D2, 312E L, 336 GC, 336F, 329E, 336F L, 336F L XE, 312D L, 328D LCR, 336D L, 323GC, 320D RR, 336E, 312F, 312D2, 336, 312D, 329E L, 330D2 L, 313F L, 323D2 L, 326GC, 336E LH, 320 GC, 320E, 330 GC, 374F L, 352F, 349E, 390F, 349E L VG, 6015B, 349, 349E L, 349D L, 345D L, 345 GC, 345D, 335, 315 GC, 395, 6015, 326 GC, 333 GC, 323 GC, 350MHPU, 320D3, 323D, 324D L, 324D, 330GC, 315D L, 312E, 323D L, 336E LN, 335F LCR, 323D2, 336E H, 330D, 330, 326D2 L, 320D, 336D, 336D2, 329D2 L, 390F L, 349D2 L, 374F, 349D2, 326D2, 329D
- Wheel Loaders: M314
Additional information
| Machine Model | 3101, 312 GC, 312D, 312D L, 312D2, 312E, 312E L, 312F, 313, 313 GC, 313F L, 315, 315 GC, 315D L, 316 GC, 316F, 320, 320 GC, 320 GX, 320D, 320D L, 320D RR, 320D3, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 326, 326 GC, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2 L, 329E, 329E L, 330, 330 GC, 330D, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 345D, 345D L, 349, 349 GC, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350MHPU, 3512B, 352, 352F, 355, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, C7.1, M314, M315, M315GC, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
